Compact Full-Tang Stainless Construction
V-ONE combines a 6 mm stainless-steel blade and bi-material grip in a nominal 9.5-inch hatchet. Compare its compact full-tang construction with your camp kit.

LX-VONE-PP

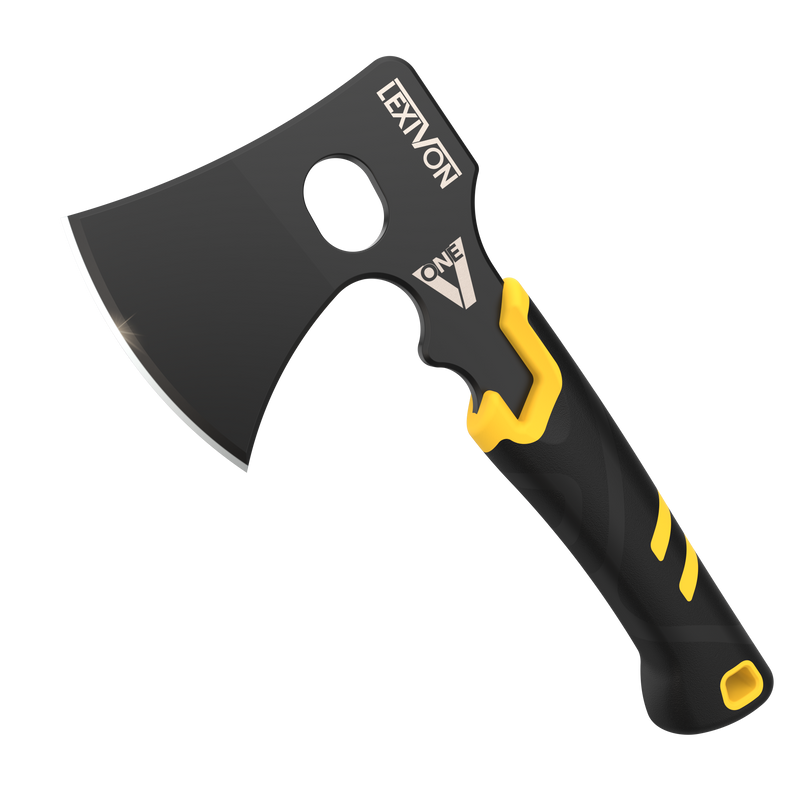

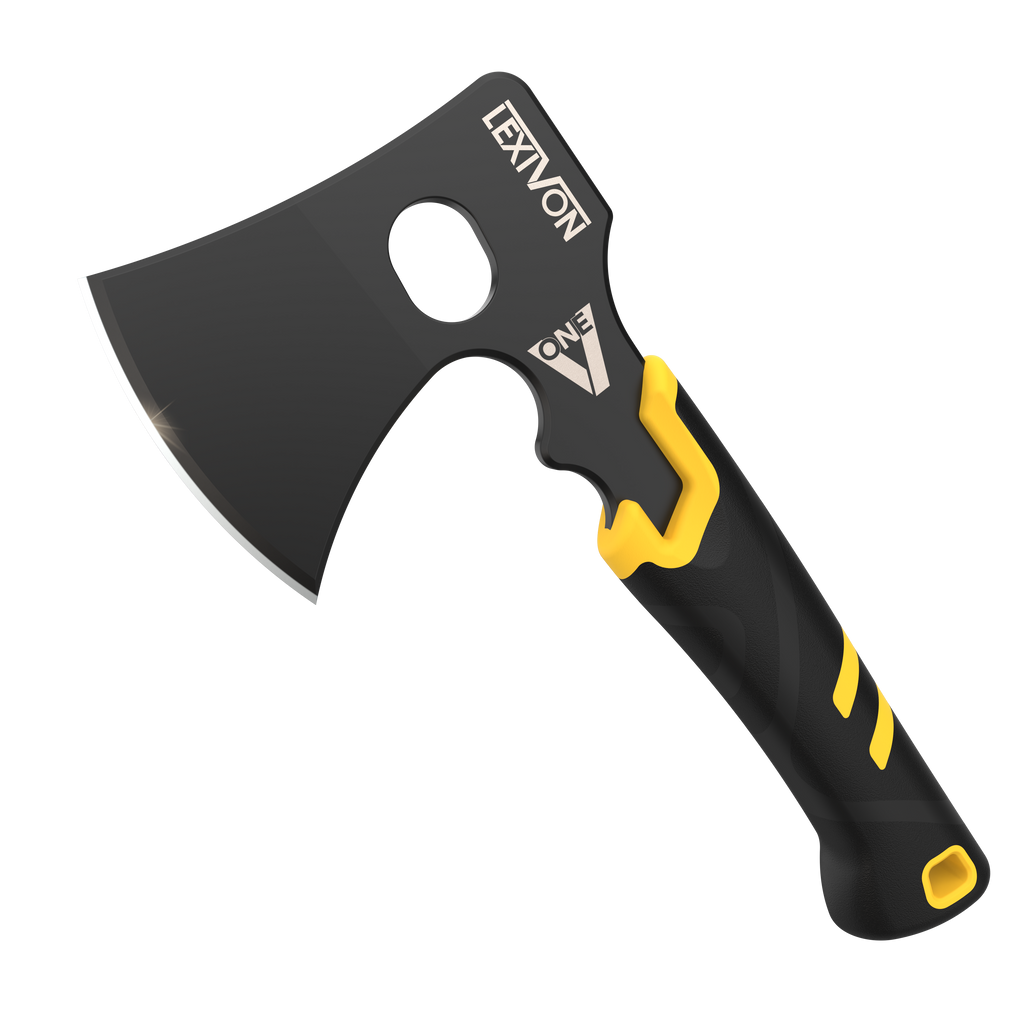

V-ONE is a nominal 9.5-inch survival hatchet with a 6 mm stainless-steel blade extending through the handle and a bi-material grip. Compare its compact full-tang construction with your camp kit and wood task.
V-ONE combines a 6 mm stainless-steel blade and bi-material grip in a nominal 9.5-inch hatchet. Compare its compact full-tang construction with your camp kit.

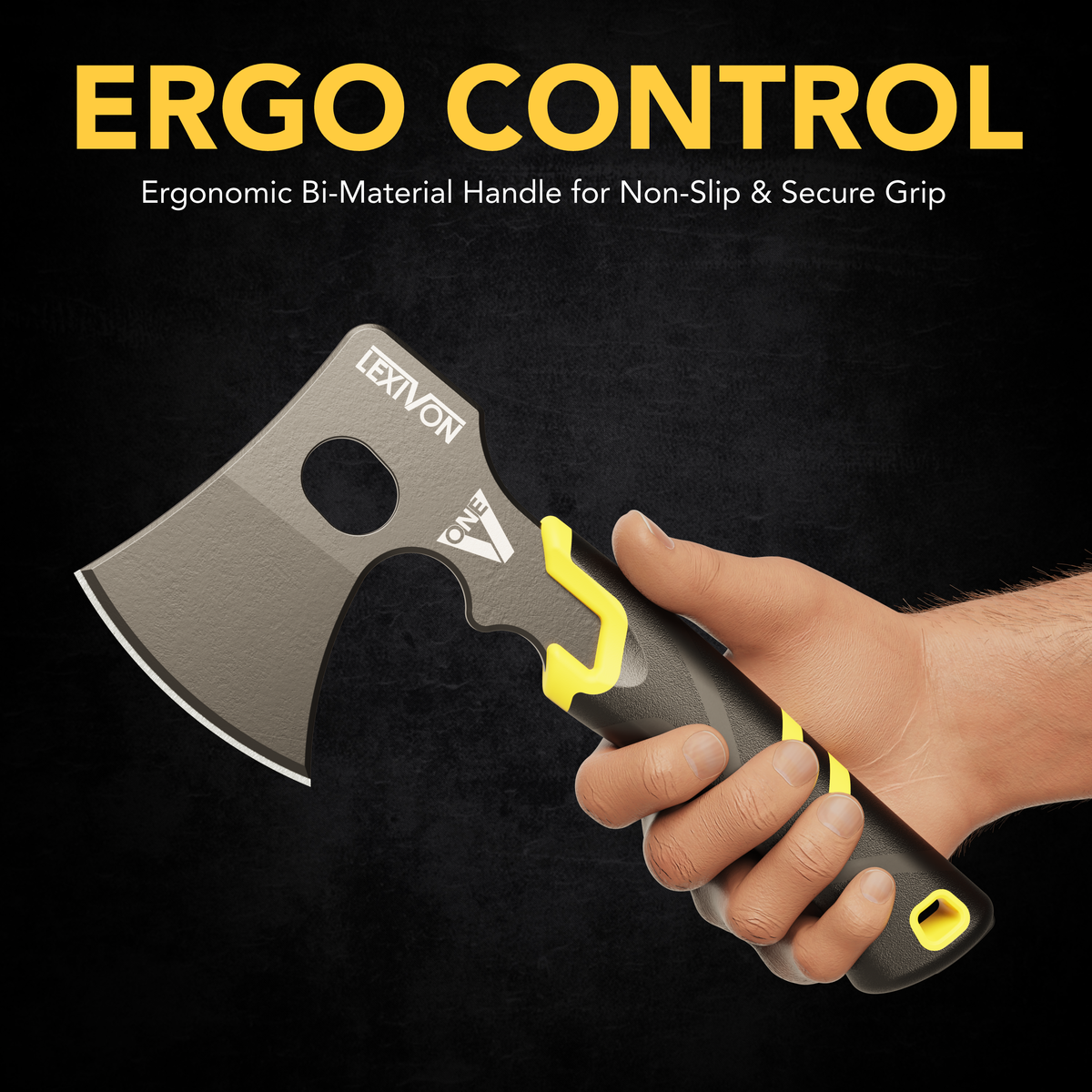

The stainless blade extends through the handle and has an Electro-Black finish. Finger grooves and a bi-material grip help define the handle shape; check that your hold is secure before use.

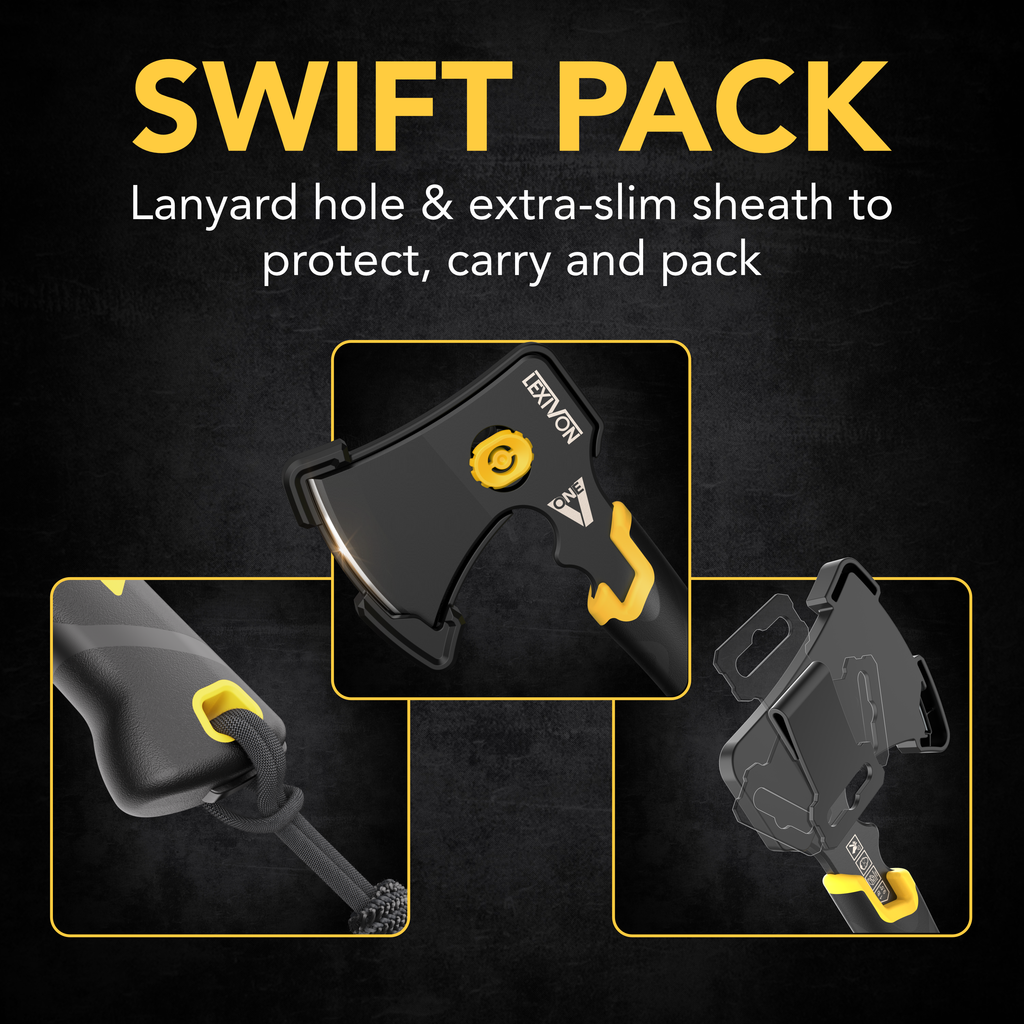

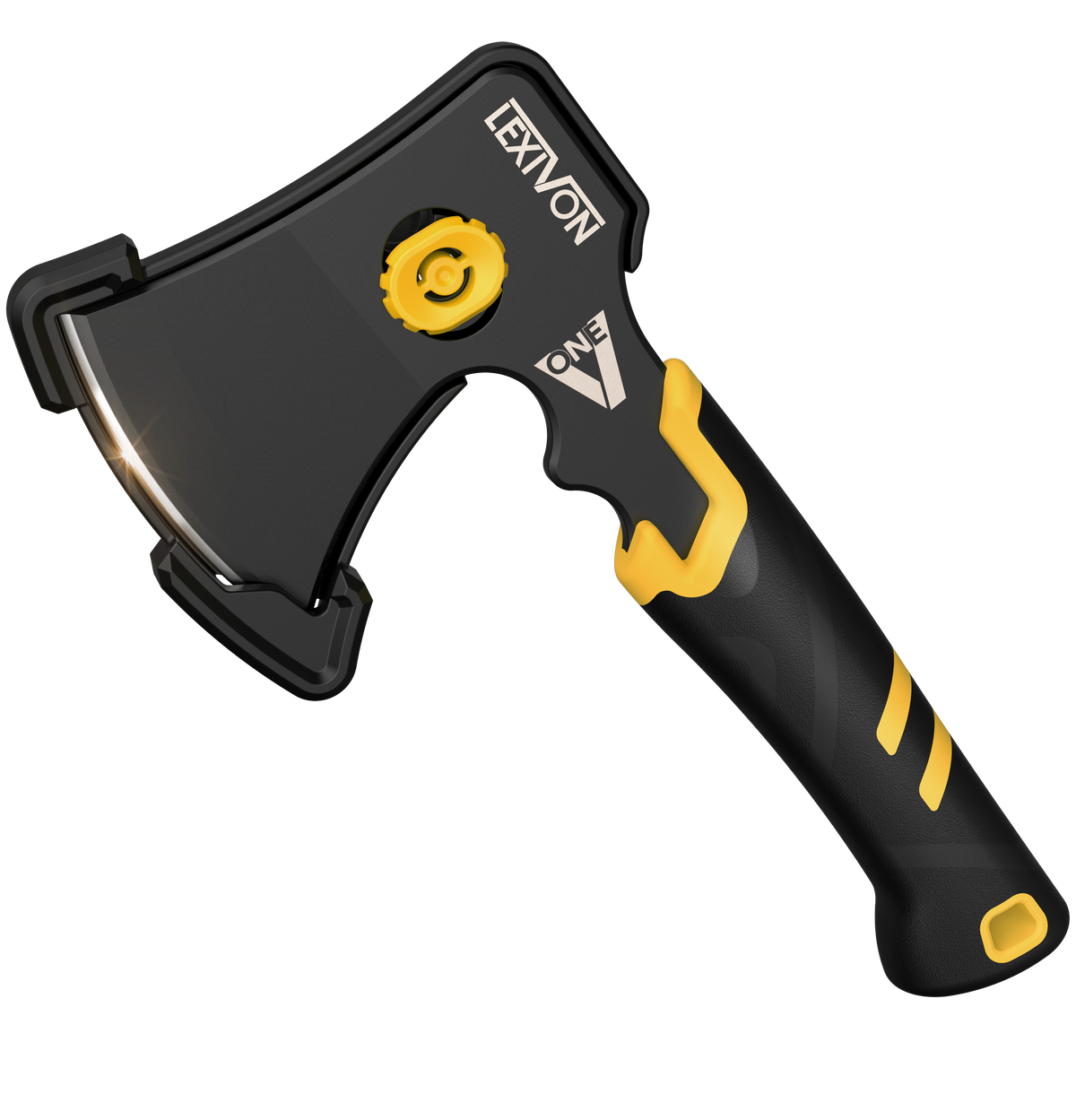

V-ONE includes a slim protective sheath and has a lanyard hole. Confirm cord availability separately if needed. Keep the blade covered between uses and the tool out of reach of children.

Match the tool to the wood task and a size you can control. A listed use does not guarantee a particular log diameter or result.
| Job or material | Works | What to check |
|---|---|---|
| Firewood and kindling | Yes | Camping wood cutting. Place wood on a stable surface before using controlled swings. |
| Branches and garden wood | Wood cutting only | Keep stone and metal clear of the blade; the safety instructions limit use to wood or similar materials. |
| Large or knotted logs | No verified size limit | No maximum diameter or guaranteed one-strike result is documented; choose a tool you can control. |
| Prying, hammering and metal work | No | Do not use the tool for prying, striking metal or as a hammer. |
| Axe throwing | No | The safety instructions prohibit use as a throwing tool. |
| Replacement handles or other-brand sheaths | Fit not verified | Ask Lexivon for the correct model-specific part; do not modify the tool. |
V-ONE has a 6 mm stainless-steel blade extending through the handle and a bi-material grip. Its compact full-tang construction differs from the carbon-steel heads and fiberglass handles of the camping range.
V-ONE is intended for camping, hiking and chopping wood. Compare its compact full-tang construction with your carrying space and ability to control the hatchet.
No. V-ONE's listed outdoor uses do not establish rescue, demolition or every survival capability. The axe safety instructions limit it to wood or similar materials and prohibit prying, hammer use and throwing.
Avoid stone or metal contact. The safety instructions restrict use to wood or similar materials and warn against materials that can damage the blade.
No. The safety instructions prohibit hammer use and striking metal. Use the appropriate tool for that task.
No. The safety instructions prohibit using it as a throwing tool.
V-ONE has a nominal 9.5-inch size. Check the actual sheathed hatchet if exact clearance in a pouch or storage space matters.
Confirm V-ONE’s complete-tool weight with Lexivon if carrying mass is critical. Compare its compact size and full-tang construction with your kit needs before selecting it.
V-ONE measures 4.6 inches wide and 0.90 inch high, with a nominal 9.5-inch size. Check the actual covered tool before choosing a fitted pouch.

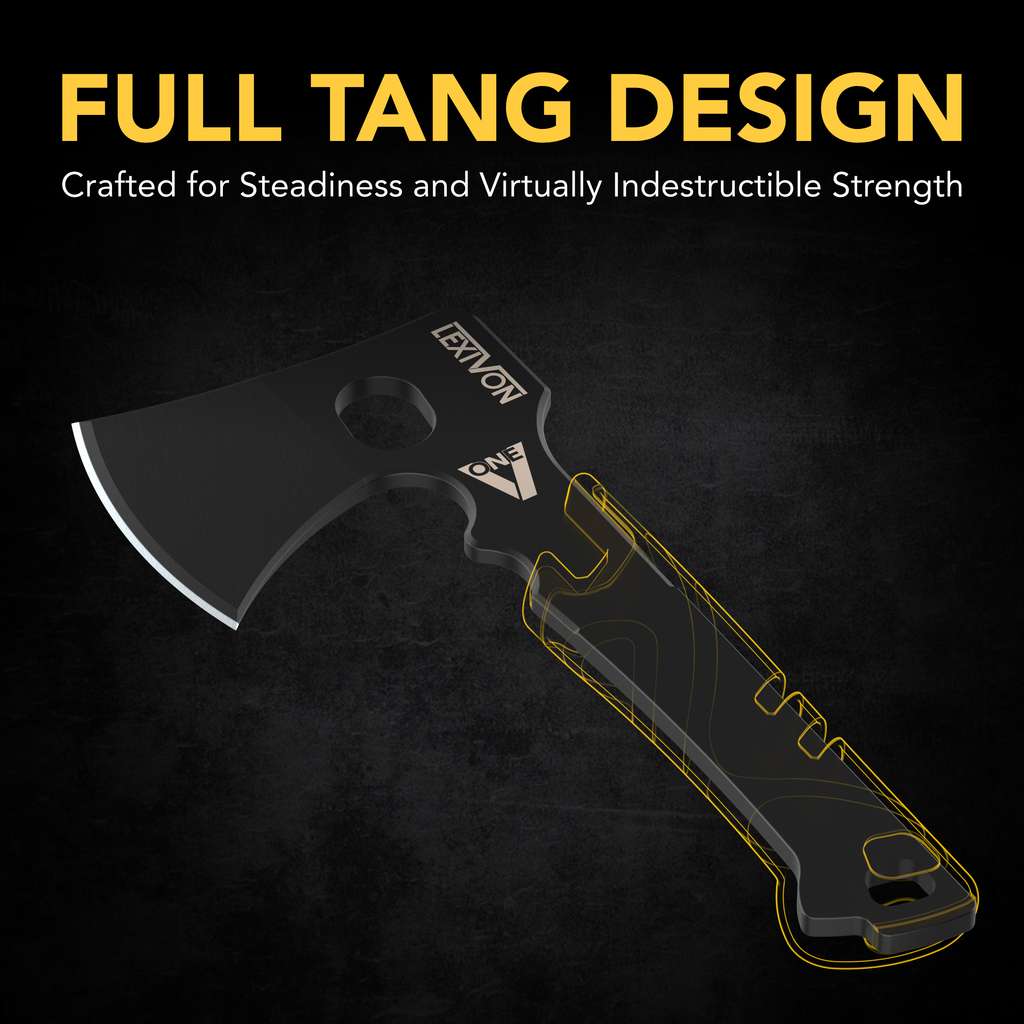

The manufacturer describes the blade metal as extending all the way through the handle. This is different from the fiberglass V9's over-molded head construction; the claim does not mean V-ONE cannot be damaged.

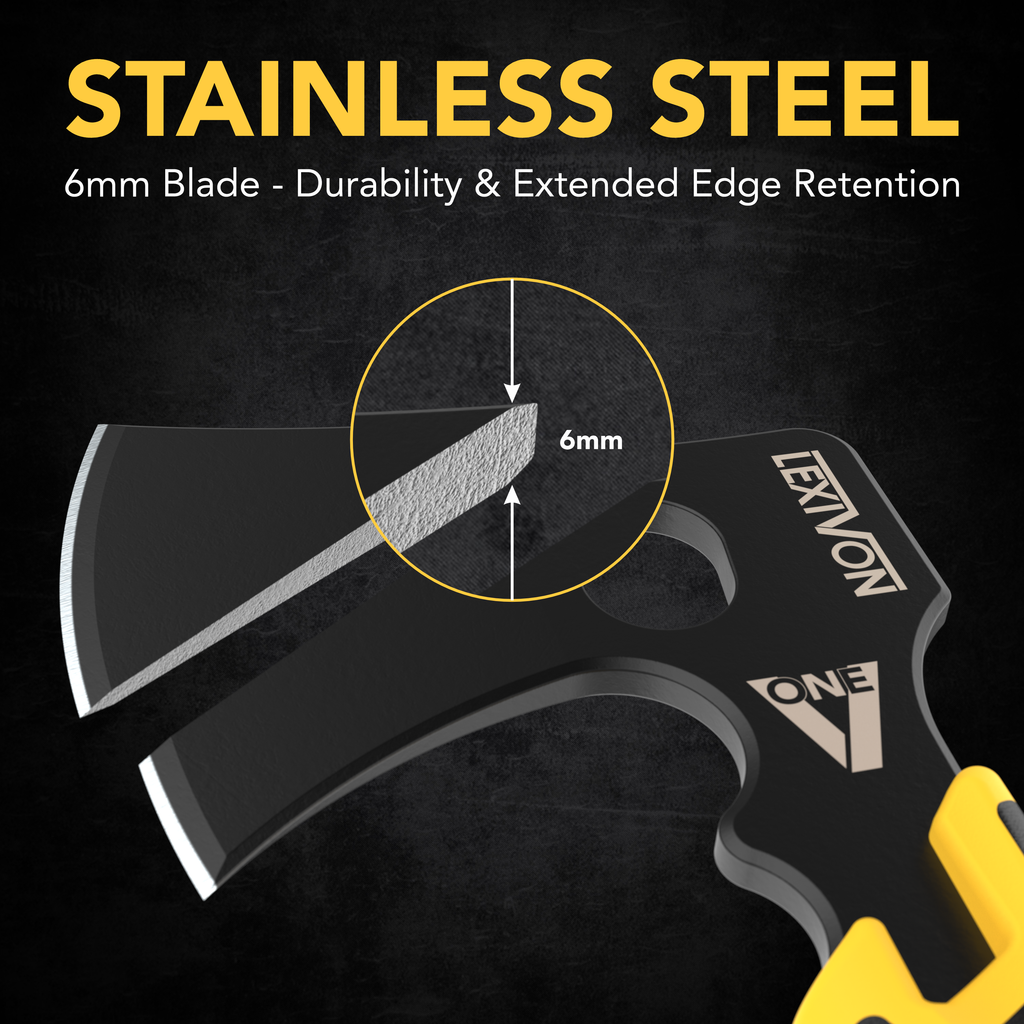

V-ONE uses 6 mm SUS420HC stainless steel with an Electro-Black finish, while V9 uses carbon steel. A numerical hardness rating is not specified.
Ask Lexivon about suitability for extreme cold before using the tool in those conditions. Weather resistance alone does not establish a safe temperature limit; inspect for damage before use.
V-ONE has a nominal 9.5-inch size and full-tang stainless construction. V9 is 9 inches long, weighs 1.22 lb and has a carbon-steel head with a reinforced fiberglass handle. Compare construction and kit space for your wood task.
V-ONE includes a slim protective sheath and has a lanyard hole. Confirm cord availability separately if you need a lanyard for your kit.
No. Keep the blade covered when not in use and keep the tool out of reach of children. The sheath does not remove the safety instructions.

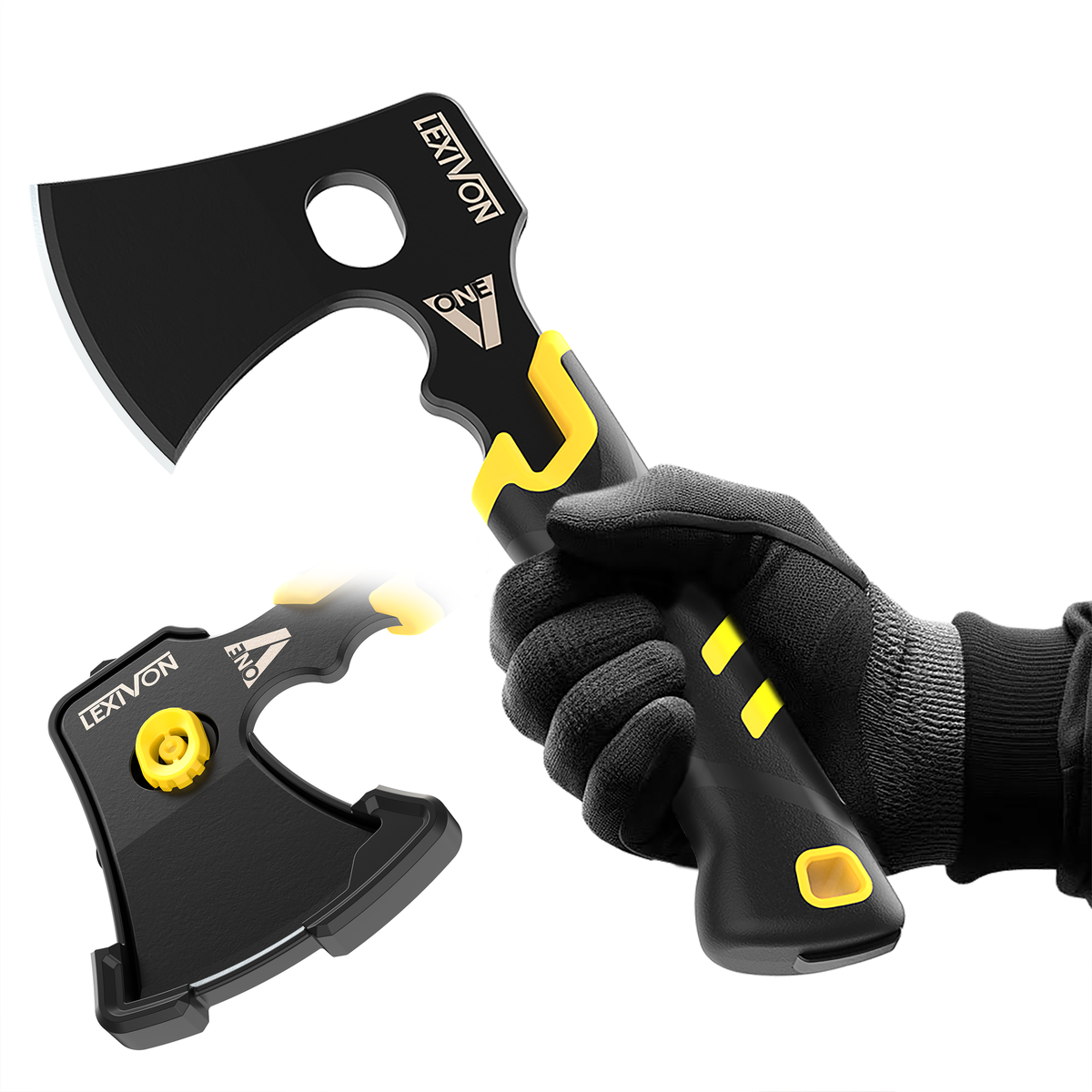

No universal hand-size or glove-fit rating is documented. The manufacturer describes finger grooves and a bi-material grip, but you still need a firm, non-slippery hold before use.
The safety instructions call for ANSI-approved protective equipment, including gloves, eyewear and sturdy footwear. Keep others at a safe distance and cut away from your body.
Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration. Edge sharpness and normal blade wear are not covered. Commercial use has 12 months coverage and cannot be extended; industrial use is not covered. Coverage is for defects in material and workmanship, excluding normal wear, misuse, modification and non-original parts. It is not transferable.
Check the blade and grip assembly for damage and ensure your hold is secure. Full-tang steel does not waive the manufacturer's axe inspection, controlled-force or stable-target instructions.

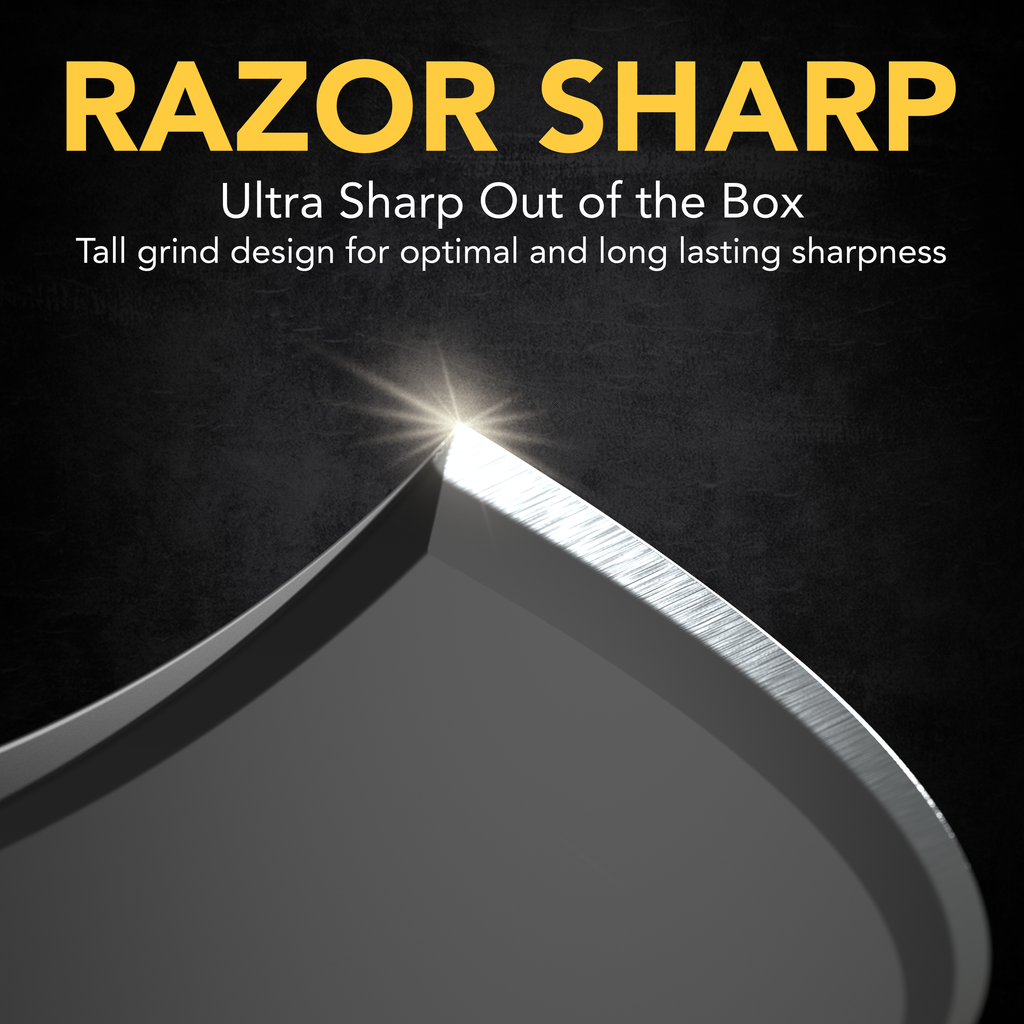

The stated V-ONE sharpening angle is 30 degrees. Confirm whether that is the included angle or the angle per side, and ask Lexivon for the sharpening method before setting up a sharpener. Edge sharpness and normal blade wear are excluded from coverage.
Contact Lexivon for the sheath-removal video for V-ONE if the release is unclear. Follow guidance for your slim-sheath revision and avoid forcing it beside the cutting edge.
Clean the blade after use and store the tool in a safe place with the blade covered. Keep it out of reach of children.
Stop using V-ONE if its bi-material grip is damaged or cannot be held securely. Seek Lexivon’s assessment rather than modifying or rebuilding the grip.
Ask Lexivon about V-ONE-specific spare sheaths or grip service. Confirm current availability and fit before selecting a part from another V-series model.
