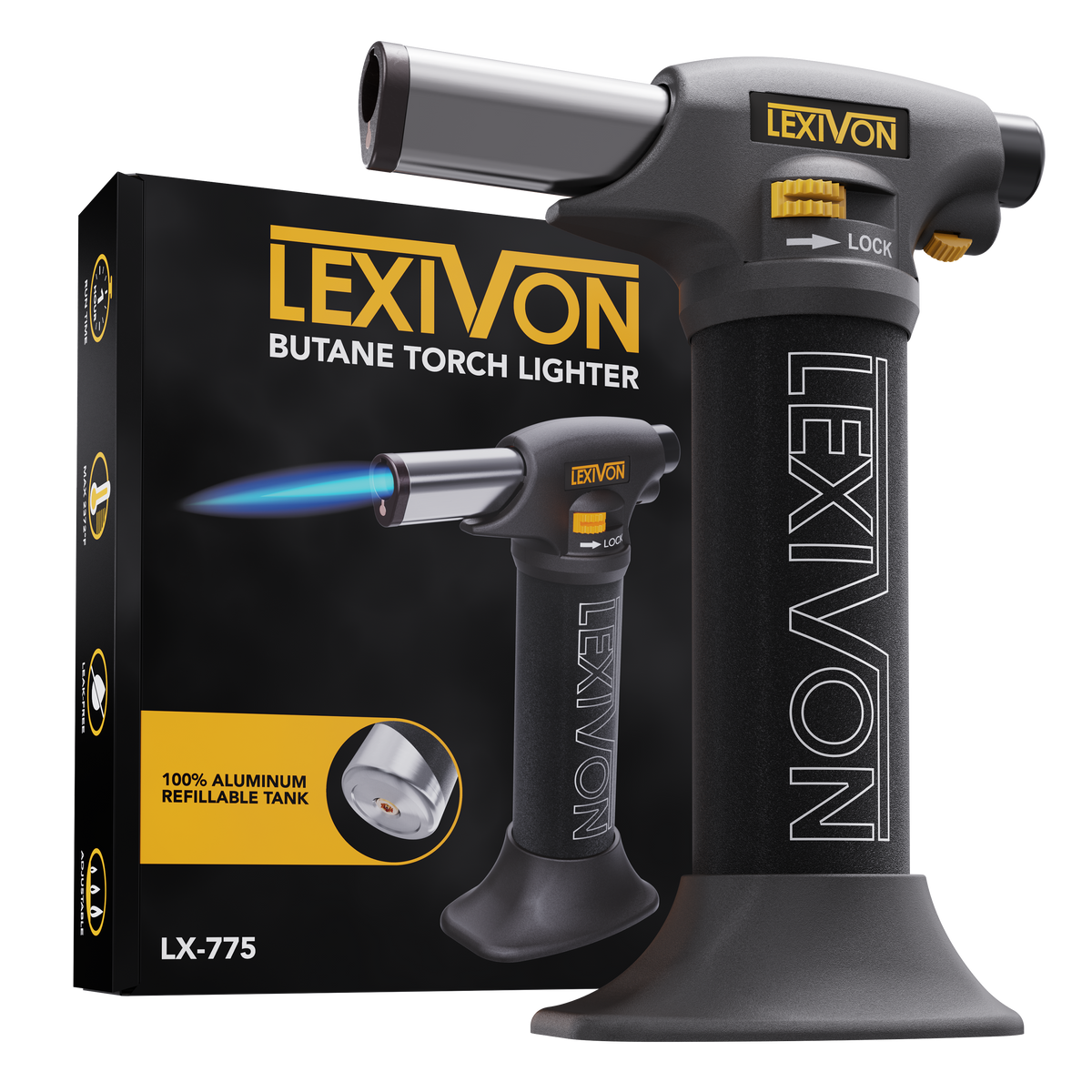

LEXIVON Butane Torch Lighter, Refillable Kitchen Cooking Torch | Self-Igniting with Safety Lock and Adjustable Flame | Pro-Grade Aluminum Tank (LX-775)

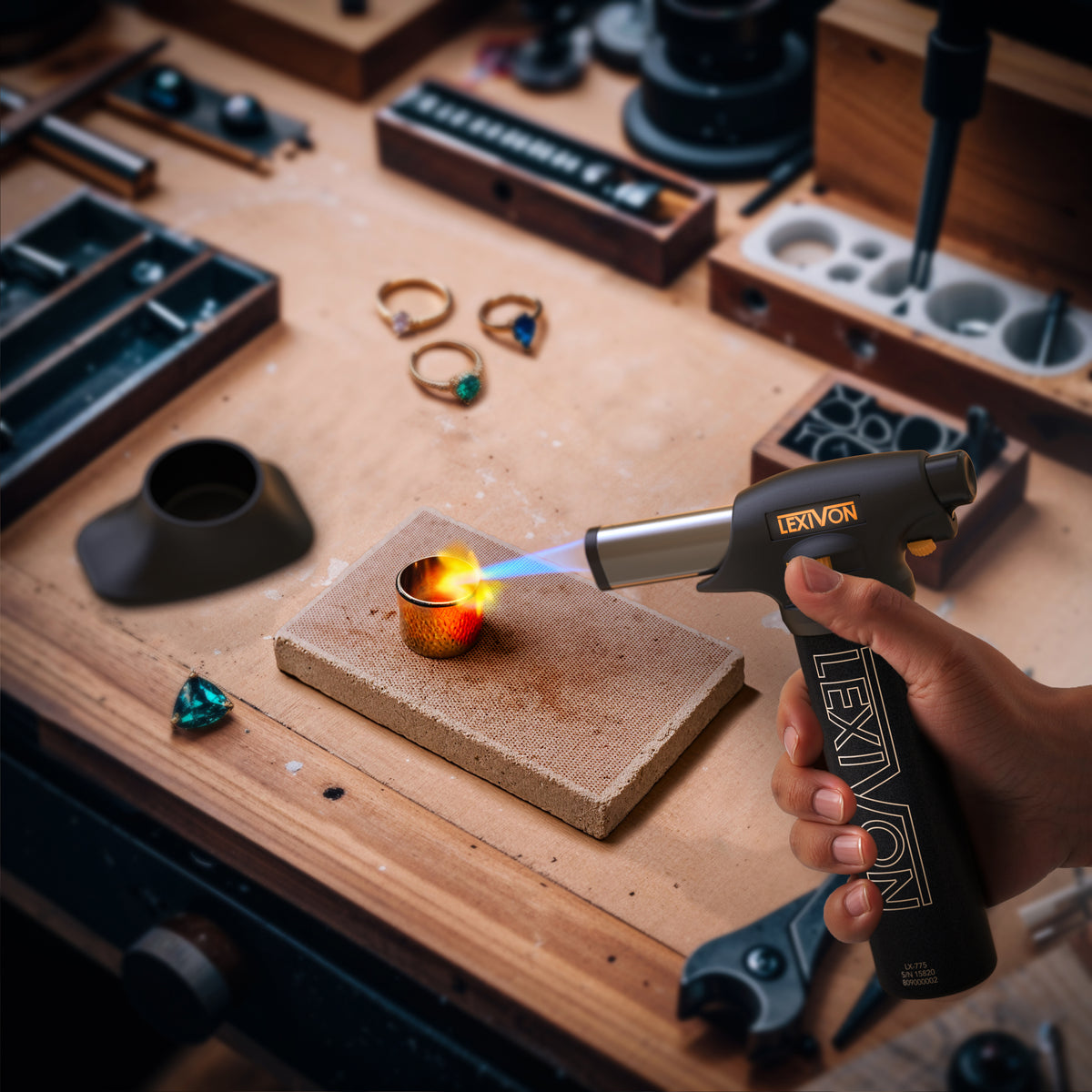

It has a pistol-shaped body listed at 6.2 x 4.5 x 1.4 in, with approximately 190 g (6.7 oz) net weight. That handling format differs from the tall upright LX-760.

The manufacturer estimates 30 minutes at high power and 70 minutes at low power from the approximately 20 g (0.7 oz) tank. Those are conditional runtime estimates.

The manufacturer names caramelizing sugar, toasting meringue and searing meat as kitchen examples. Use an appropriate flame and food/cookware instructions; these examples do not establish a universal cooking procedure.

Yes. The LX-775 manual says the torch and stand are packed separately. The stand improves stability on a suitable horizontal surface and can be removed for filling or storage.

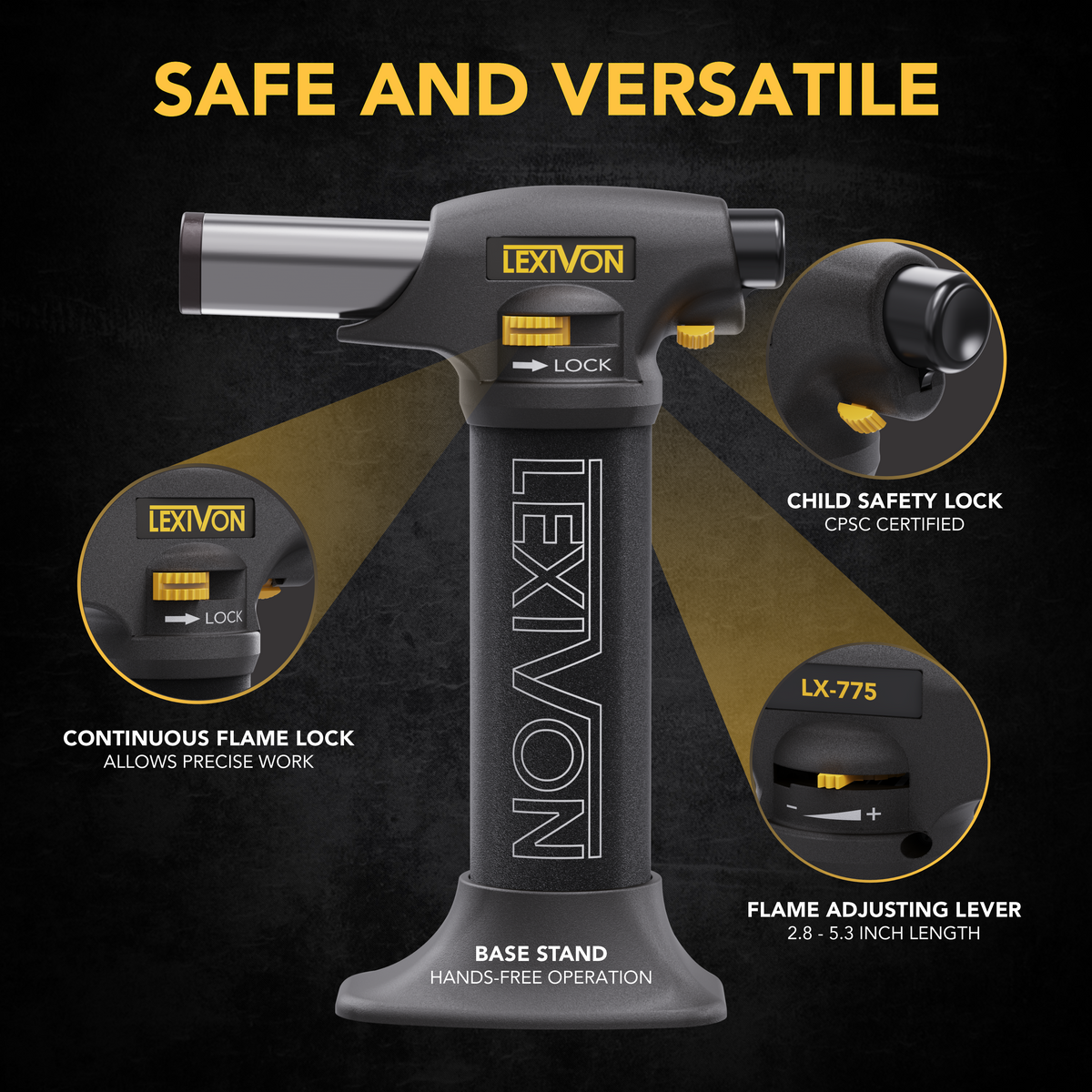

The continuous flame lock can maintain operation after ignition. Slide that lock right to engage and left to disengage; verify shutdown when the task is finished.

No. The flame nozzle becomes extremely hot and the tank contains flammable gas under pressure. Keep LX-775 away from children and do not defeat its safety lever.

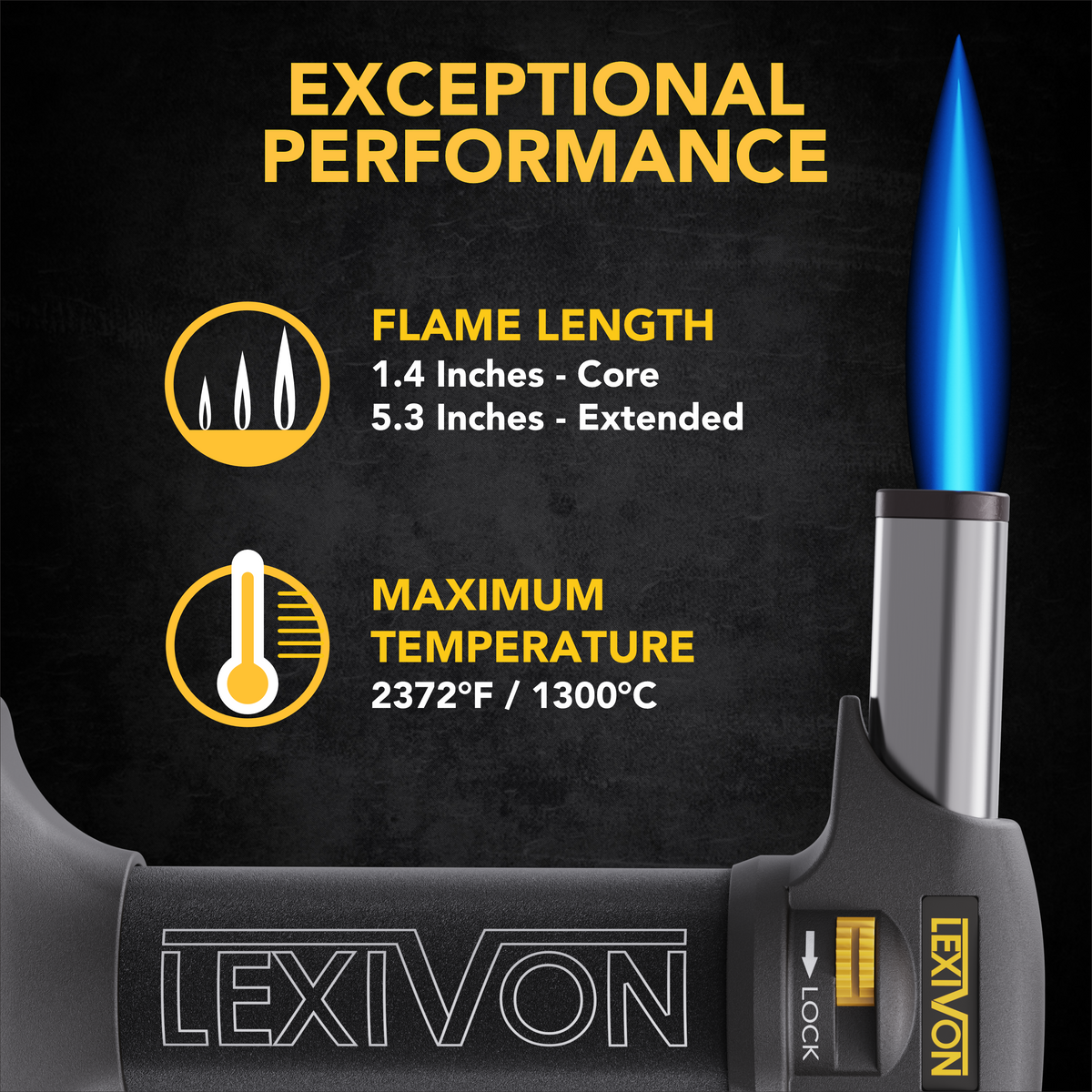

The published maximum is 2372 F (1300 C). It is a flame capability claim, not a measured food-surface temperature or a controlled soldering-tip setting.

The core flame range is 0.4-1.4 in (10-35 mm), and the extended flame range is 2.8-5.3 in (70-135 mm). Allow clearance for the full extended flame.

Its flame adjustment lever increases length toward the plus mark and decreases it toward the minus mark. The lever changes flame size without establishing a numerical workpiece temperature.

The LX-775 manual identifies a flame adjustment lever and continuous lock, without documenting the LX-760's separate air-control valve. Do not assume the other model's dual-flame sequence applies.

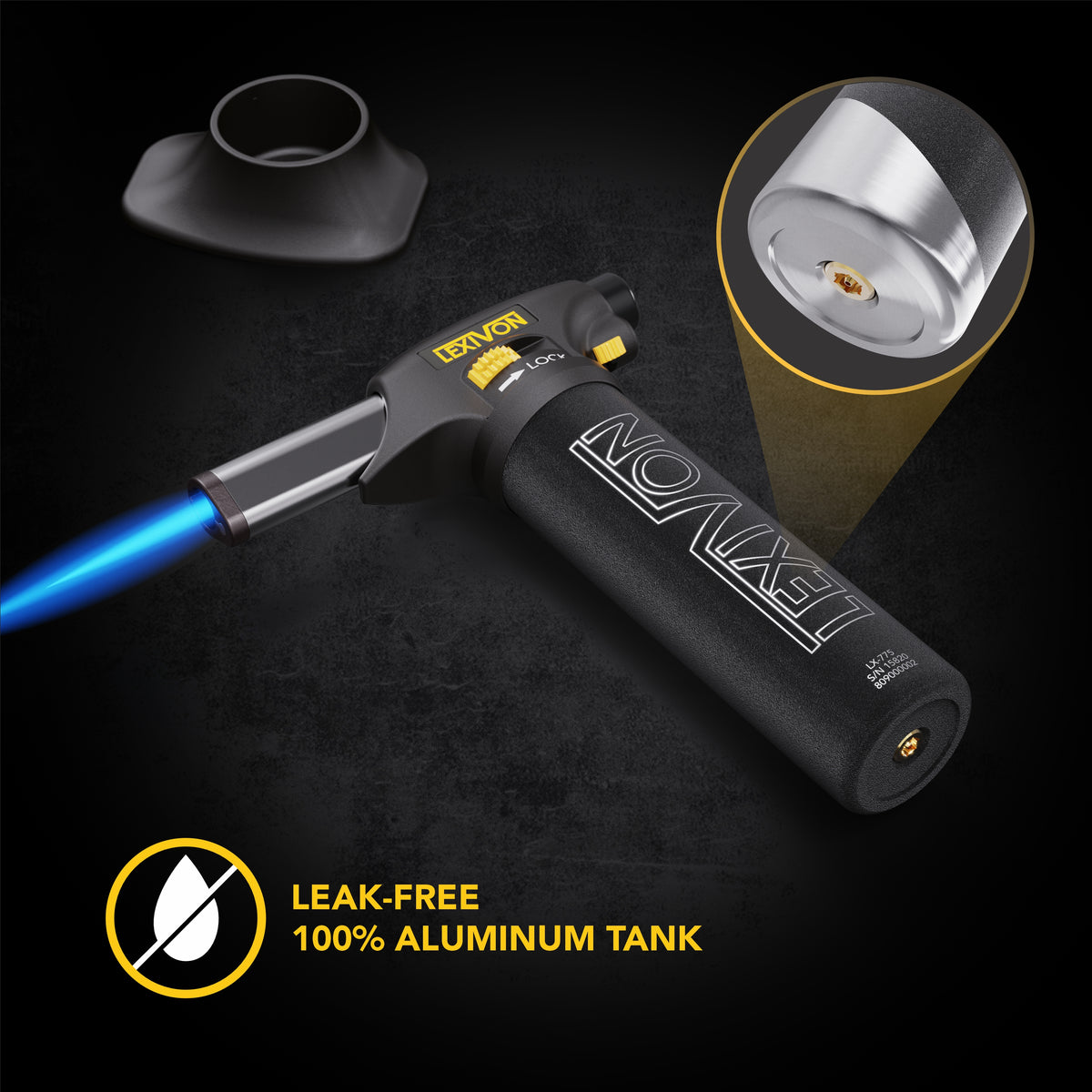

No. An aluminum tank does not guarantee that leaks cannot occur. Stop using an LX-775 with suspected leakage and contact Lexivon.

The dimensions are approximately 6.2 x 4.5 x 1.4 in (16.0 x 11.6 x 3.5 cm). Confirm an exact drawing if your storage space is tight.

LX-775 is pistol-shaped, about 190 g, with 30/70-minute high/low estimates. LX-760 is a 9.5-inch upright torch, about 175 g, with 20/40-minute estimates. Both list 20 g tanks; choose by handling and flame controls.

LX-775 supplies a flame torch and detachable stand. Its manual does not list the catalyst and seven attachments supplied with LX-770 or LX-771 kits.

LX-TIP replacement tips fit the LX-770 and LX-771 assembly systems. Compatibility with LX-775 is not confirmed for those contact soldering tips and catalyst.

No universal pipe diameter or joint-thickness performance is verified. The open-flame temperature claim alone does not establish successful pipe soldering or light welding on every material.

LX-775 arrives without butane. Its manual requires refined butane and recommends checking the refill-can specification; do not substitute unspecified ordinary lighter gas.

12 months standard; 24 months when you register online within 90 days of purchase. Cooking-tool coverage remains defects-only; normal wear and misuse are excluded, commercial use is limited to 12 months and industrial use is not covered.

Push the child-safety lever toward the torch body and slide it left as the model manual shows, then press the ignition button. If the lever is damaged, stop instead of bypassing it.

Check the unlocked safety lever and the model's ignition instructions. If there is still no normal ignition, contact Lexivon; do not modify or force the mechanism.

Slide the continuous-flame lock left to disengage it. Without that lock engaged, releasing the ignition button turns the torch off. Confirm the flame is out before setting it aside.

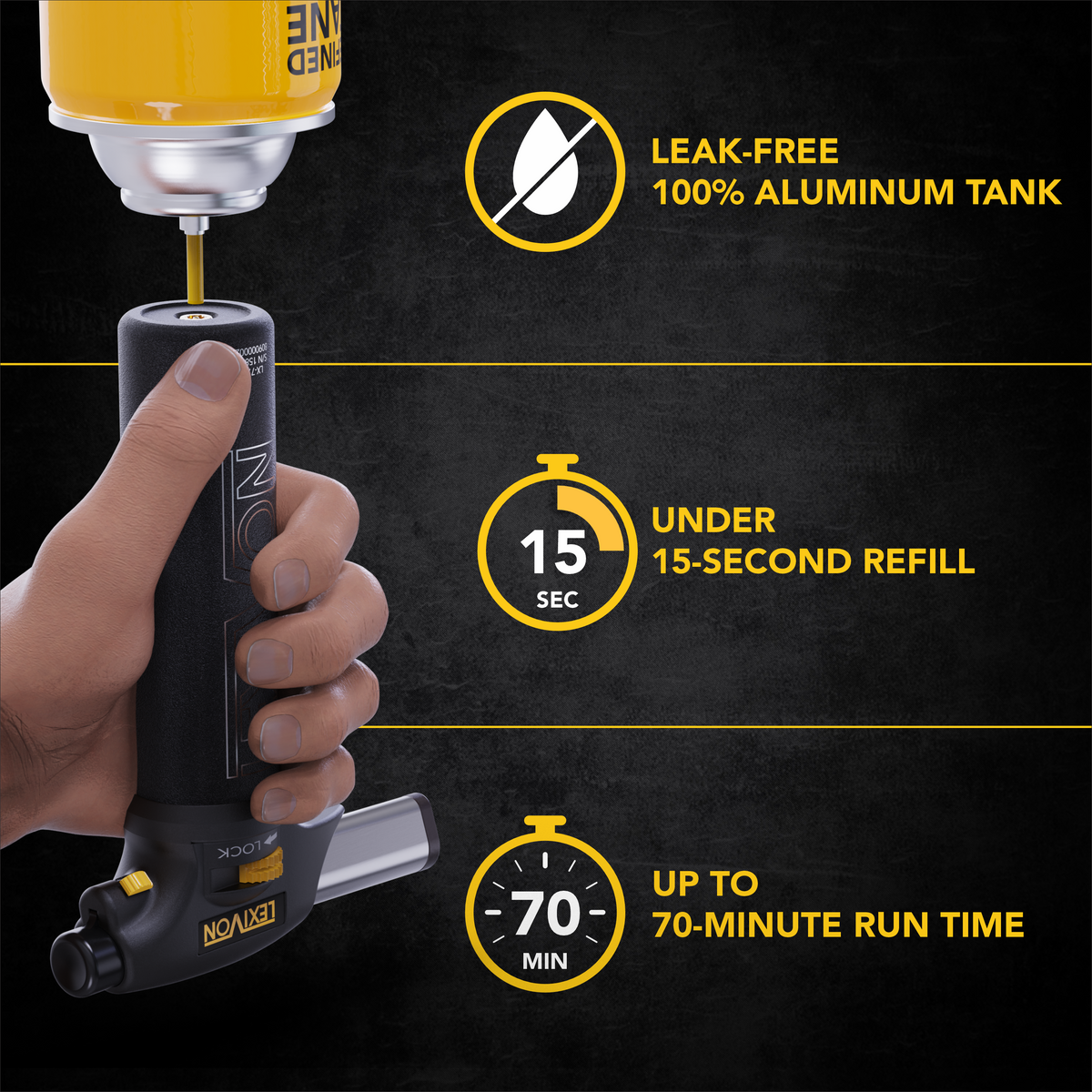

Let the torch reach room temperature and remain unused for five minutes before filling. Keep the can and valve aligned, avoid overfilling and allow up to five minutes afterward for escaped butane to evaporate.

No. Stop and ask Lexivon to assess the damaged safety part. The manual prohibits unauthorized modifications; a functioning trigger does not establish a safe replacement for the lock.

The manual says not to keep attempting ignition after two or three unsuccessful tries or a weak flame. Follow its troubleshooting section and contact support if the fault persists.
