Butane Soldering Iron Multi-Purpose Kit | Cordless Self-Igniting Adjustable Flame 7-Tip Set | Pro Grade (LX-770)

Sale price  $71.97 Regular price  $83.97
Skip to product information
LX-770 Butane Soldering Iron Multi-Purpose Kit, image 1

LX-770

Butane Soldering Iron Multi-Purpose Kit | Cordless Self-Igniting Adjustable Flame 7-Tip Set | Pro Grade (LX-770)

Sale price  $71.97 Regular price  $83.97
UPC
840025210912

Overview

The LX-770 is a refillable butane soldering iron kit for repairs and hobby work away from a power outlet. Change the attachments for soldering, directed hot air or hot-knife work, and adjust the gas flow for the task.

Key Advantages

Cordless Repairs

Solder Without A Power Outlet

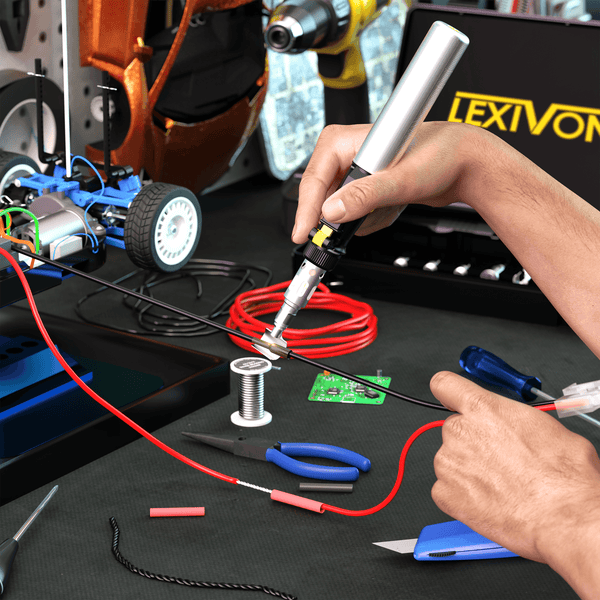

A refillable butane tool for field repairs and hobby projects. Use refined butane supplied separately, choose the right attachment and keep the hot exhaust clear of nearby materials.

  • Butanecordless heat
  • 3 soldering tipsincluded
  • No outletrequired

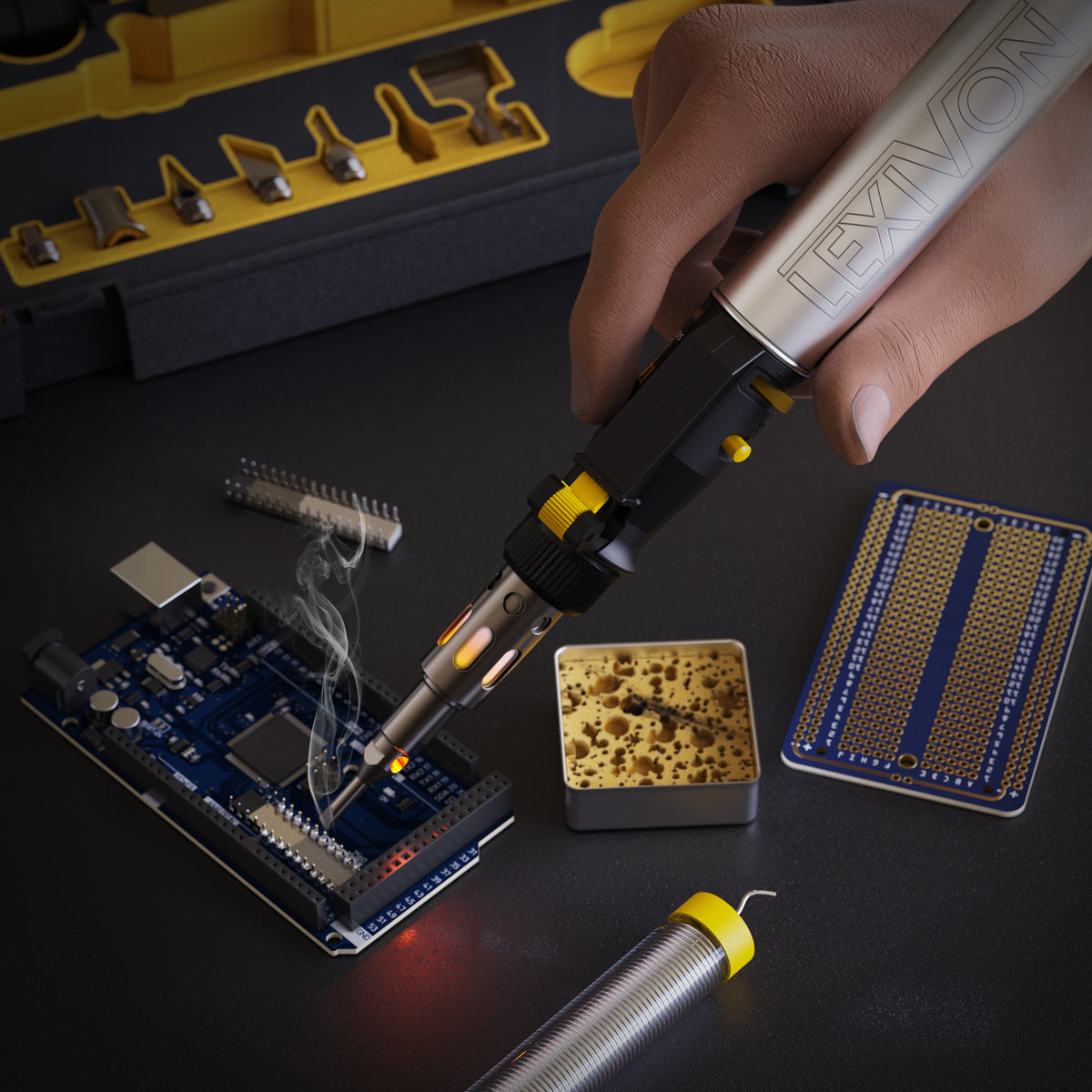

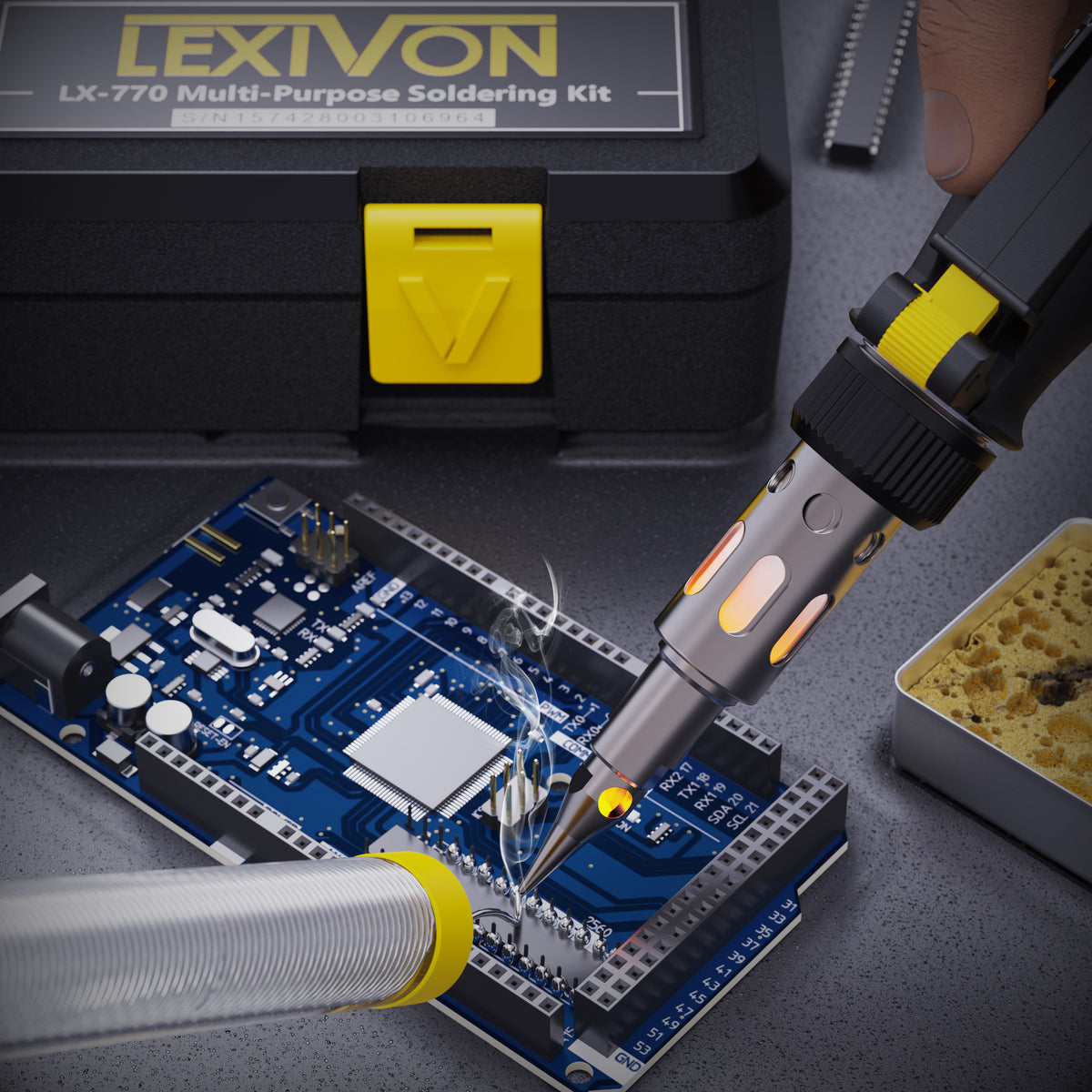

LX-770 soldering on a circuit board beside its open case
Heat Shrink

Direct Heat Around The Joint

Fit the catalyst, hot blower and deflector to direct heat around tubing. Follow the tubing maker's requirements rather than using maximum flame temperature as a working target.

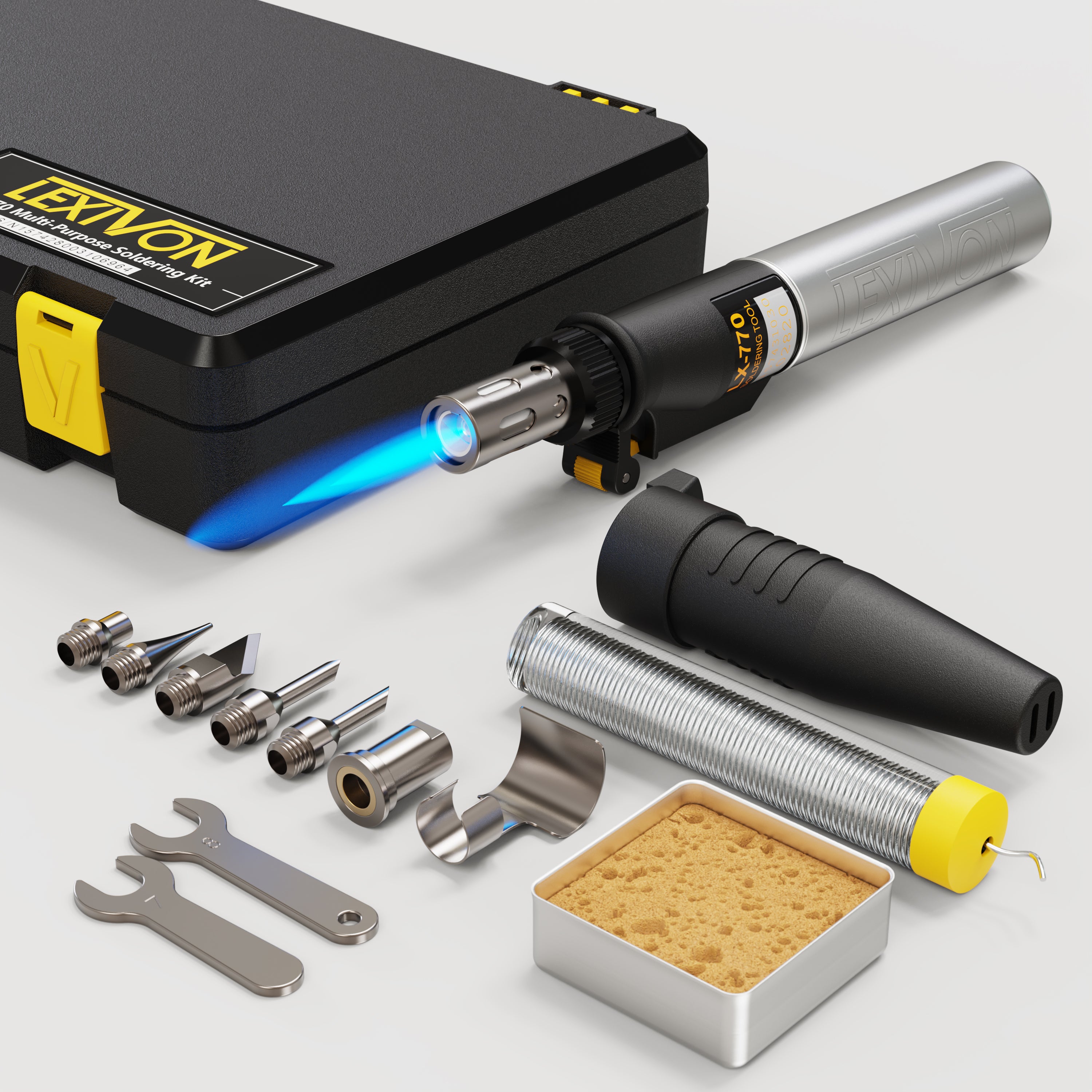

LX-770 heat deflector attachment
Hot Knife

Cut With A Heated Blade

The included hot knife adds cutting work to soldering tasks. Shut the tool off and let it cool completely before removing or changing an attachment.

LX-770 hot knife among the threaded heating attachments

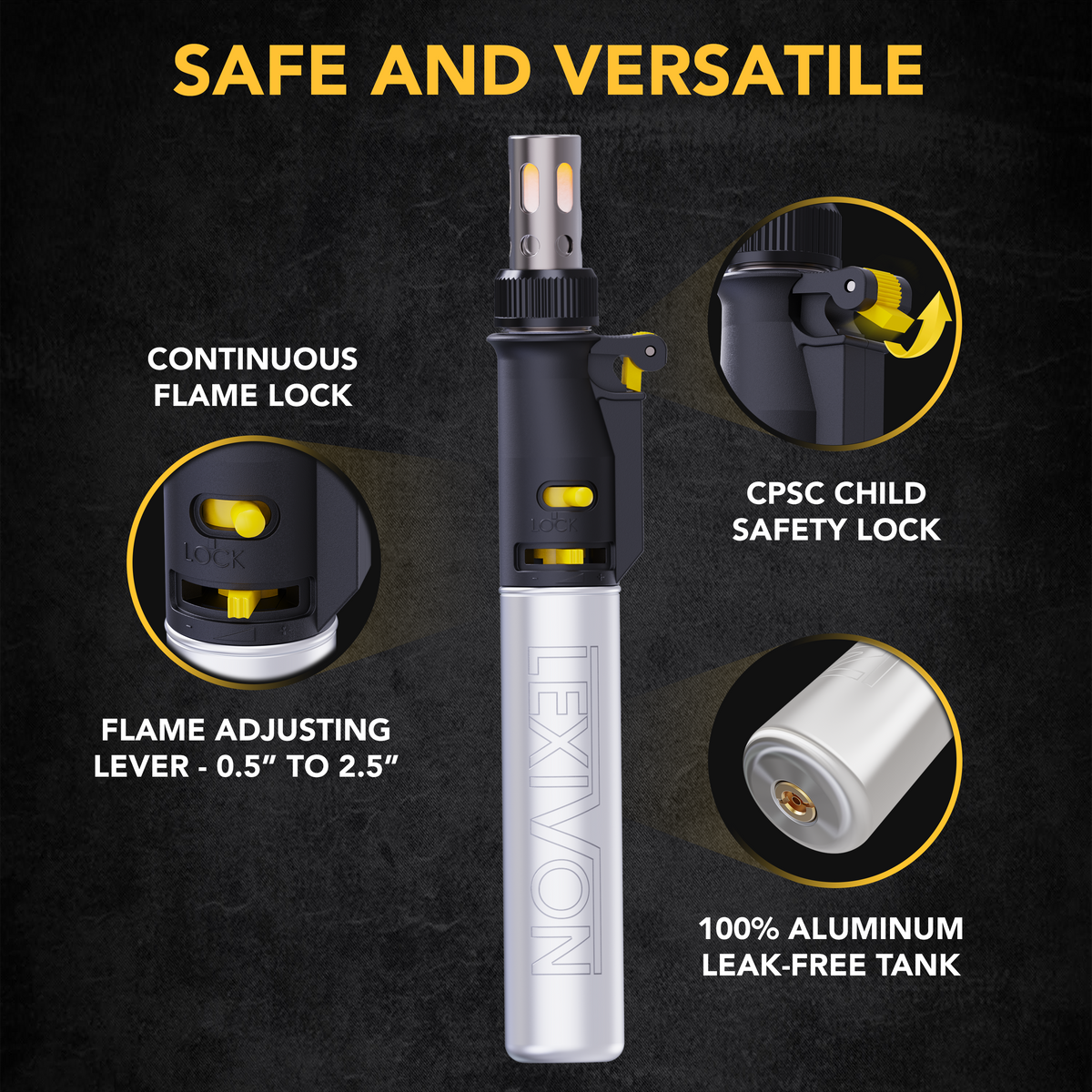

Adjustable Heat

Adjust Flow. Lock For Continuous Use.

Use the gas-flow slider to adjust heat, and engage the flame lock for continuous operation. Runtime varies with the selected gas flow and operating conditions.

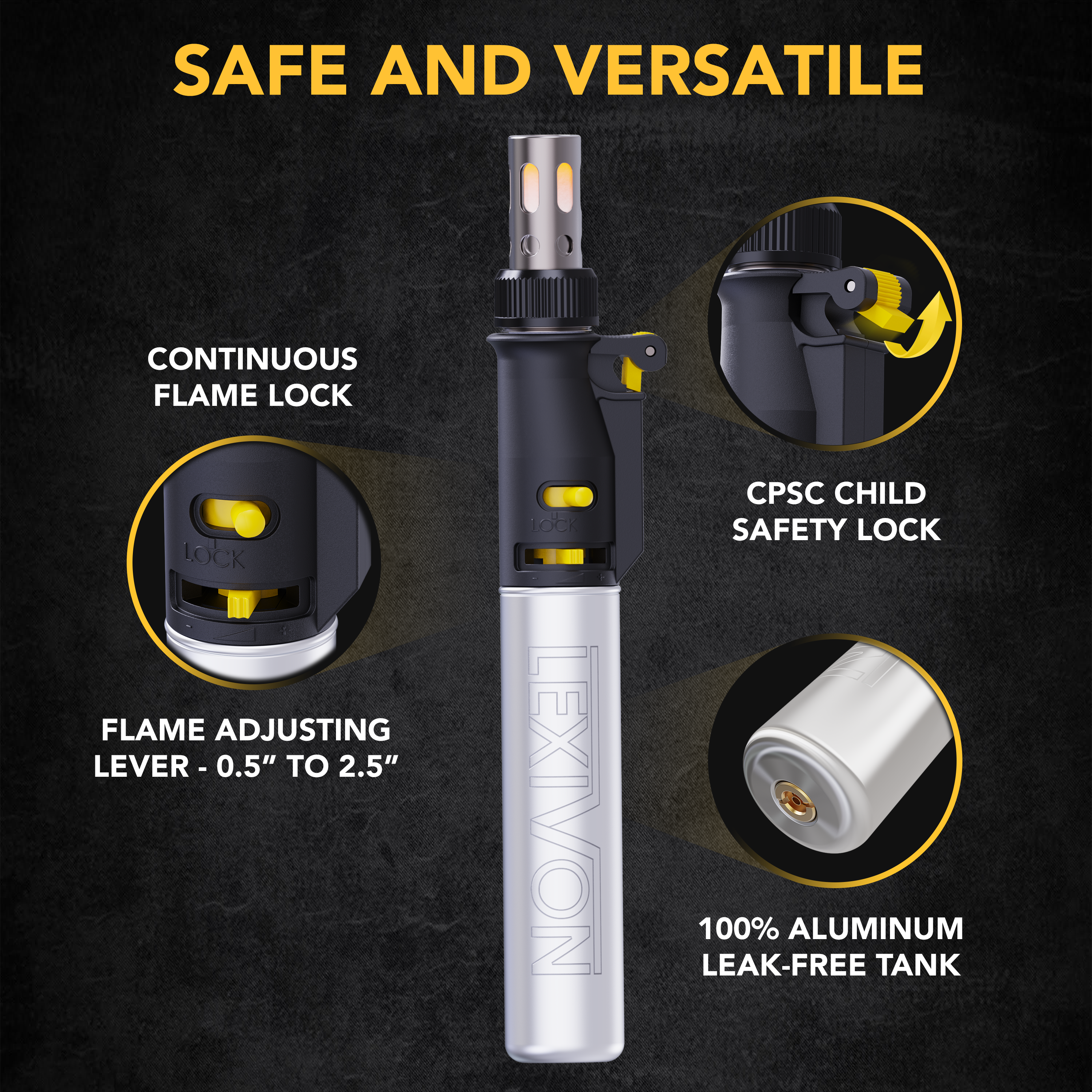

LX-770 flame lock and gas-flow controls

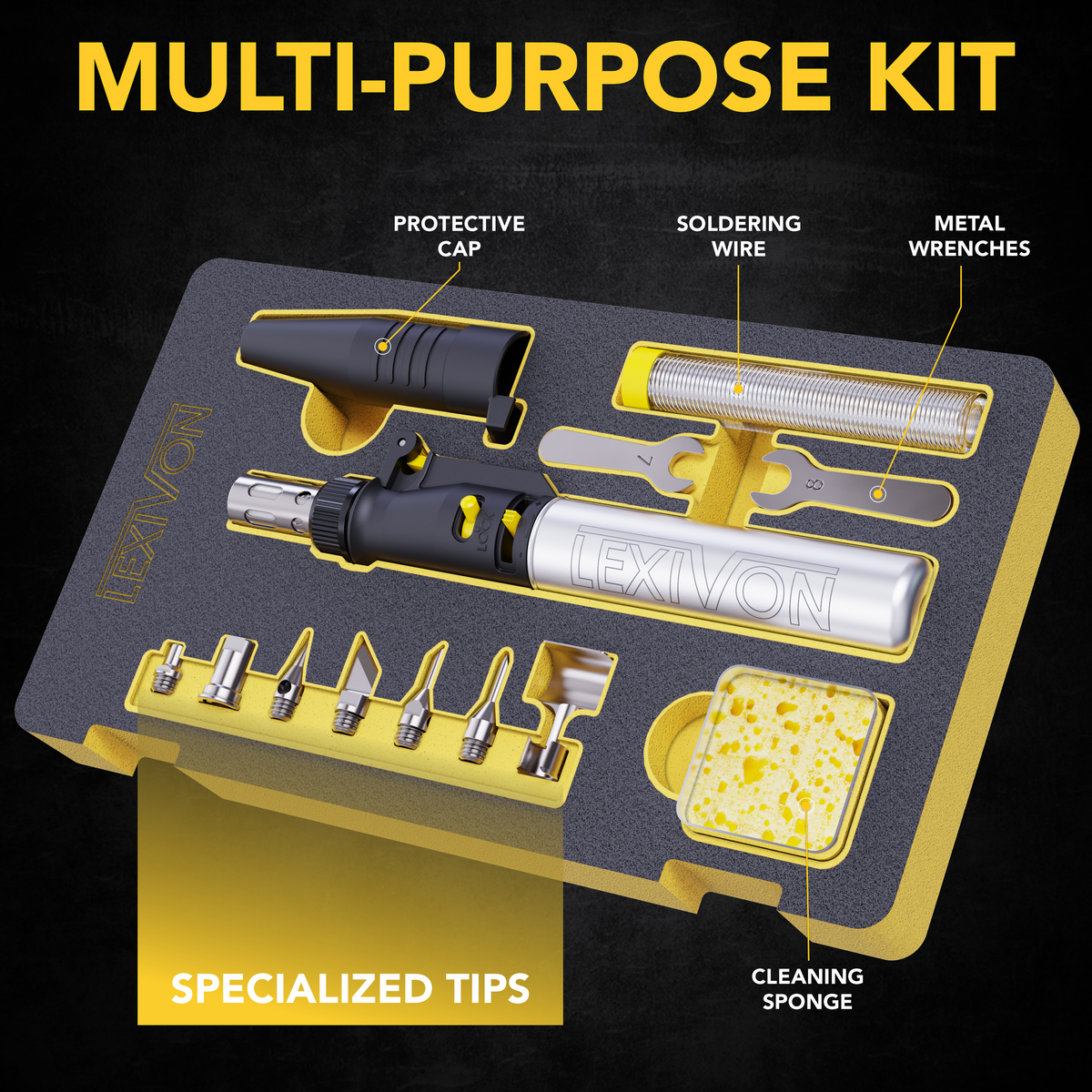

In The Box

Tool, Attachments And Carrying Case

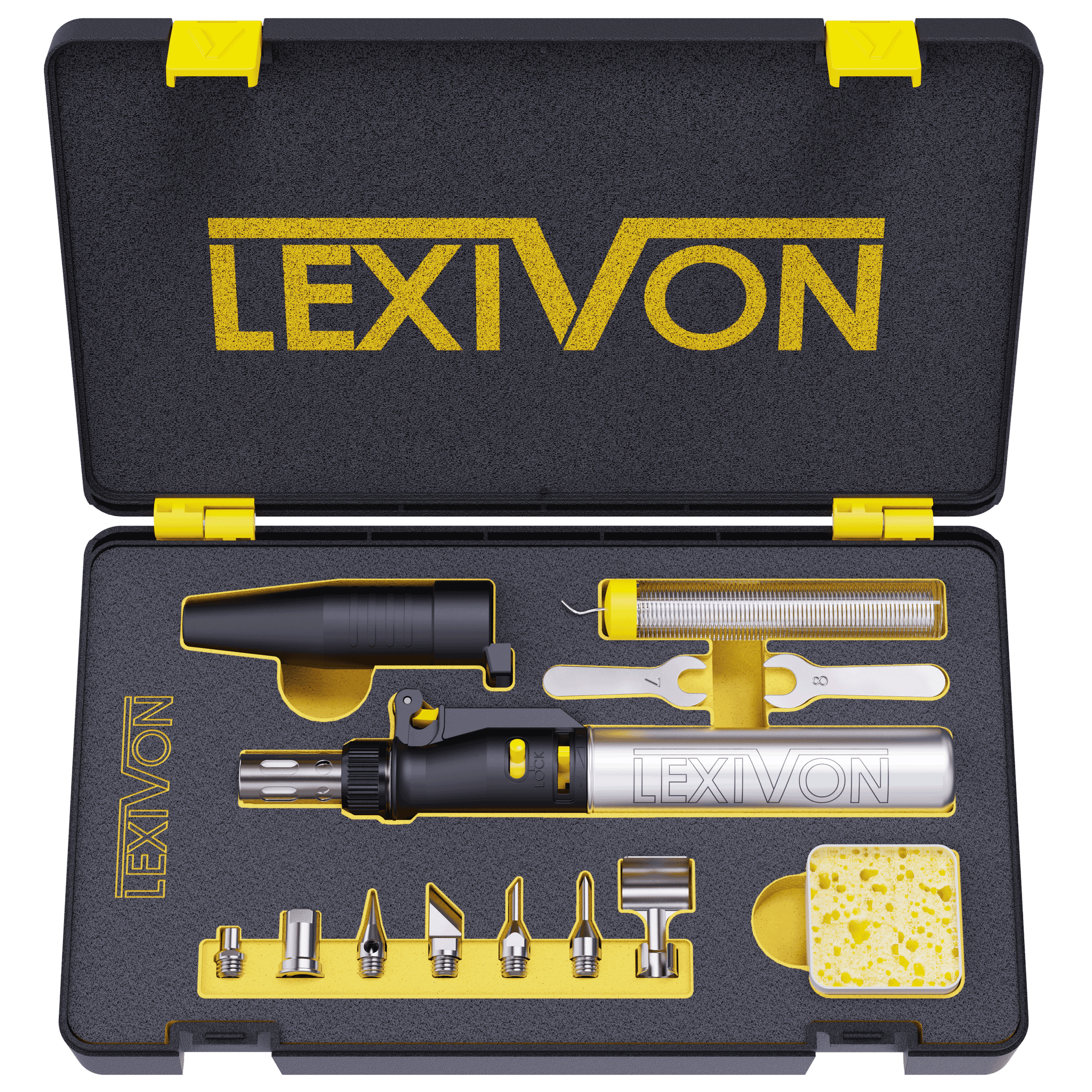

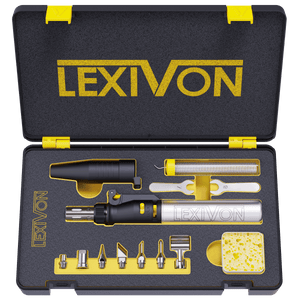

The case holds the tool, seven attachments, protective cap, two wrenches, solder wire, sponge and tray. Butane fuel is not included.

Open LX-770 case with the tool and attachments

Will it suit the job?

Match the attachment, solder or material and heat needed for the task. The listed maximum temperatures are capability limits, not recommended joint temperatures.

Job or materialWorksWhat you need
Field wiring repairsYes, when the joint suits a soldering tipCorrect tip, suitable solder and flux, refined butane and access clear of heat-sensitive parts.
Heat-shrink tubingYes, with directed hot airInstall the catalyst and hot-blower/deflector attachments; follow the tubing maker's heat requirements.
Wood burning and hot cuttingYes, with suitable attachmentUse the appropriate tip or hot knife; allow full cooling before changing attachments.
Lead-free solderRequires suitable alloy, tip and jointNo universal gas-slider setting is verified; choose for joint size and solder requirements.
Temperature-sensitive PCB workApplication dependentThere is no verified numeric temperature setpoint or ESD-safe rating; choose a controlled station where those are required.
Propane or unrefined fuelNoUse butane refined at least three times; fuel is supplied separately.
Work beside flammable vaporsNoThe manual identifies pressurized flammable gas and hot components; do not use near ignition hazards.

Tech Specs

Power source

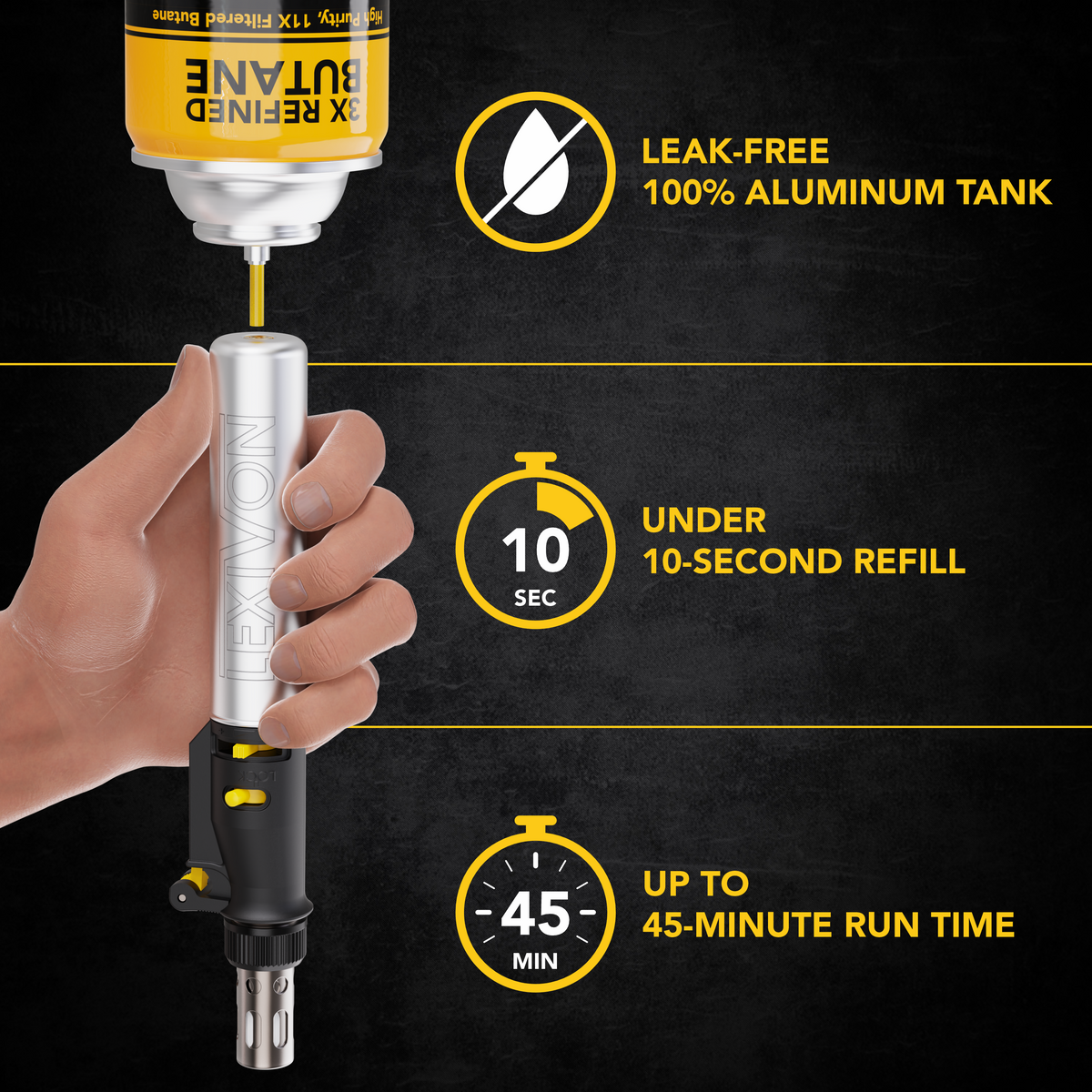

Refillable butane fuel; no outlet required
Tank capacity
17 ml
Fuel requirement
Butane refined at least 3 times; not included
Ignition
Self-igniting trigger with safety lock
Heat adjustment
Gas-flow slider; continuous flame lock
Flame length claim
1/2-2 1/2 inches
Maximum flame temperature claim
Up to 2400 F; not the soldering-tip temperature
Maximum soldering-tip temperature claim
Up to 1100 F; not a controlled setpoint

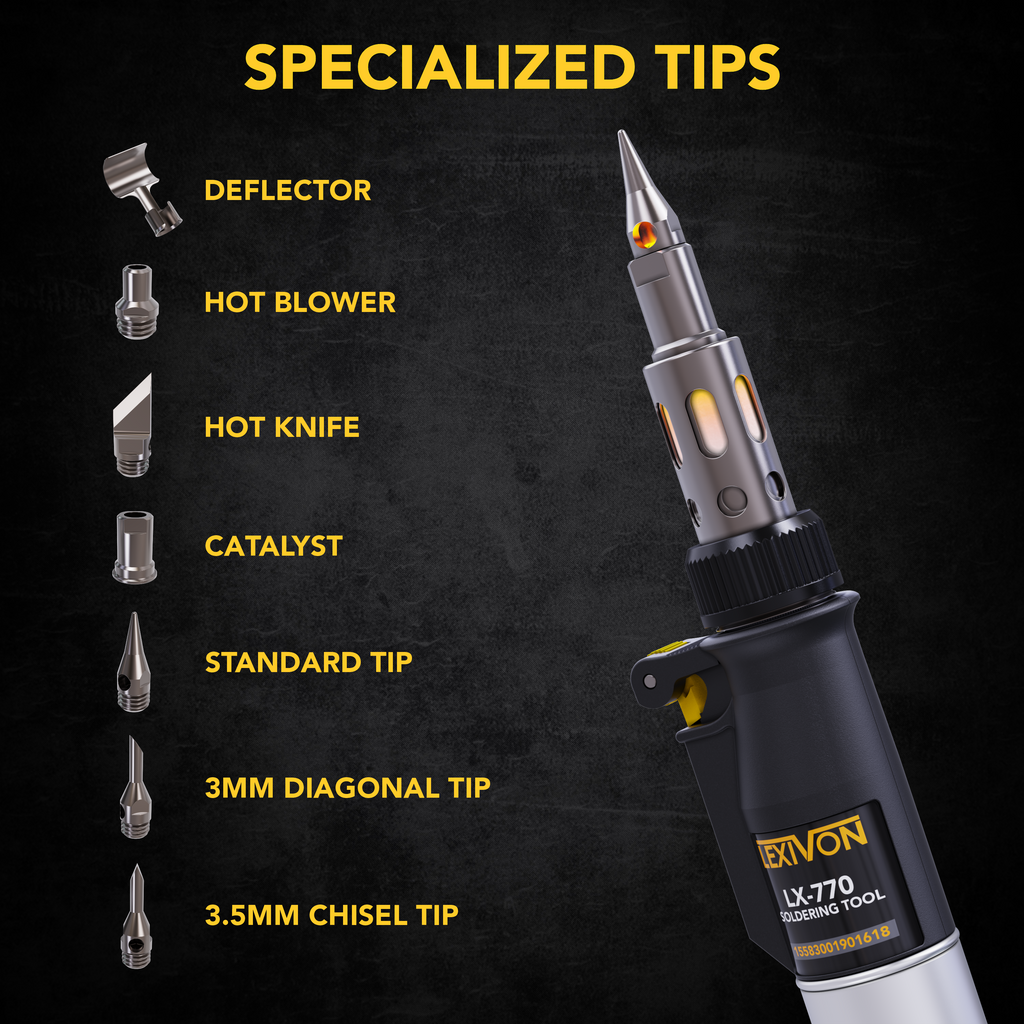

Soldering tips
Standard, diagonal and chisel
Other attachments
Catalyst, hot blower, hot knife, deflector
After refilling
Wait at least 3 minutes before ignition
Tip-change tools
7 mm and 8 mm wrenches included
Storage limit
Cool fully; do not expose above 120 F / 50 C
Warranty
12 months; 24 months with registration within 90 days; commercial: 12 months; industrial excluded

Questions

Can I solder wiring away from an electrical outlet?

Yes. LX-770 uses refillable butane rather than mains power; use a suitable soldering tip, solder and flux for the joint.

Can it shrink heat-shrink tubing?

Yes. Use the catalyst with the hot-blower and deflector attachments, and follow the tubing maker's heat instructions.

Can I use it for wood burning?

Yes, with an appropriate heated attachment and material. Let the tool cool fully before changing tips.

Does the kit include a hot knife for cutting?

Yes. The hot knife is one of the attachments illustrated in the manual; change it only after the tool has cooled completely.

Is it a guaranteed replacement for an ESD-safe soldering station?

No. The available specifications do not verify ESD-safe construction or a numeric regulated setpoint, so use a verified station when your components require those controls.

Does it come filled with butane?

No. Buy refined butane separately; the manual requires fuel refined at least three times.

Do I have to hold the ignition trigger the whole time?

No. After ignition, the continuous flame lock can maintain operation; switch it off to extinguish the tool.

How does LX-770 compare with LX-771?

LX-770 has a straight iron-style body. LX-771 has a pistol-style body and base stand. Both use refillable butane and accept the named Lexivon attachment sets; choose the body format that suits your handling needs.
