Measure and hold
Choose How The Blade Holds

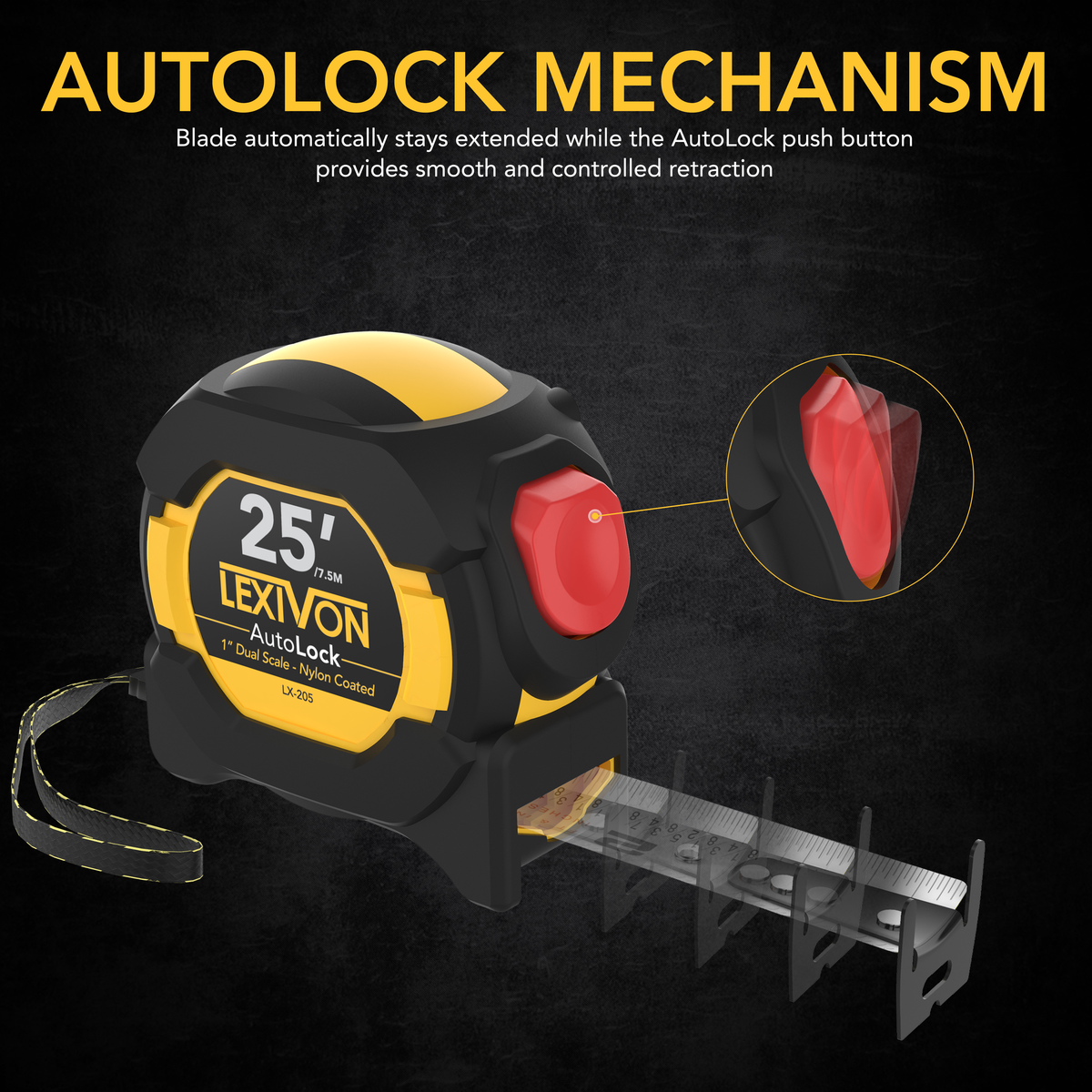

The 25 ft / 7.5 m 1-inch blade holds on extension. Press the AutoLock button for controlled retraction.

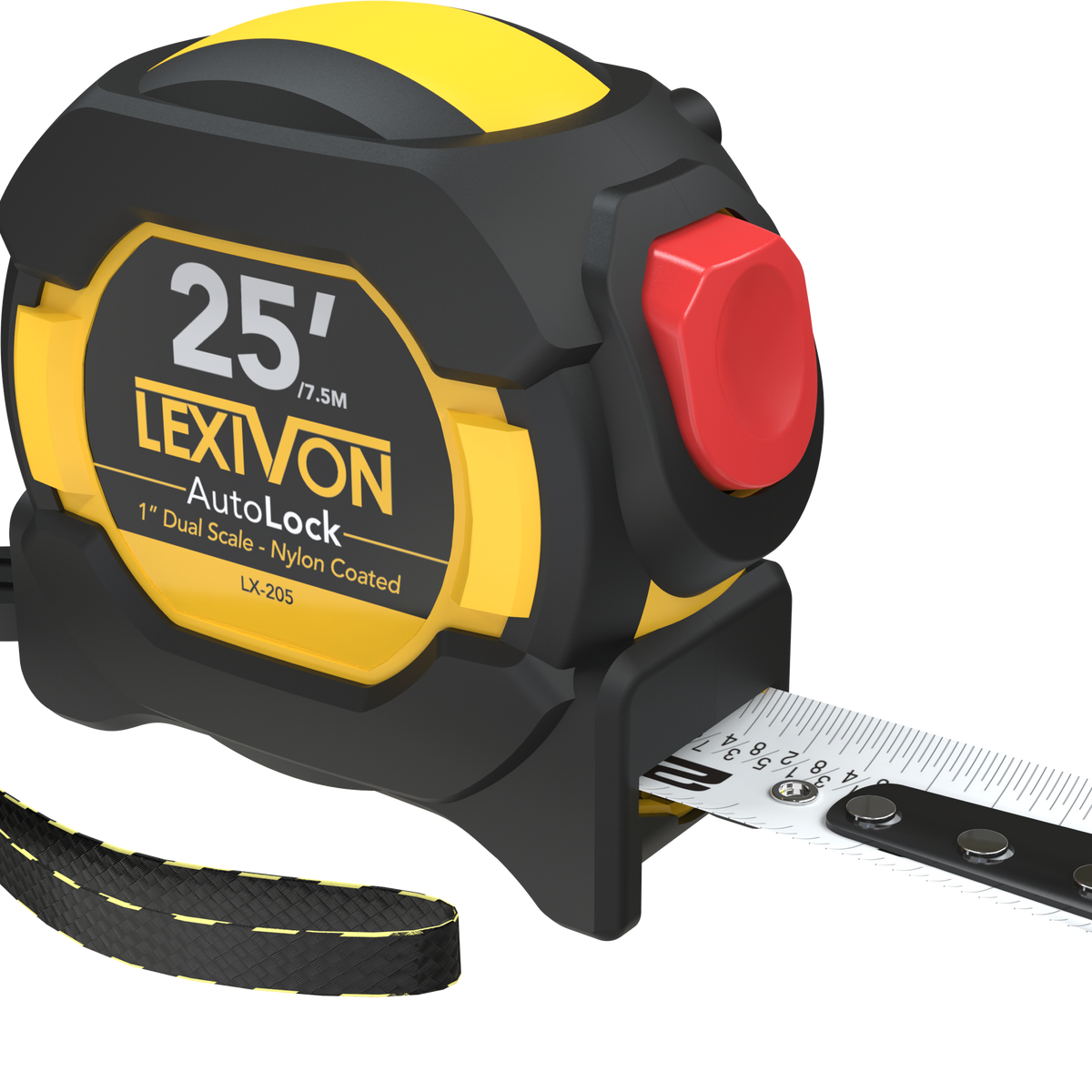

25Ft/7.5m AutoLock Tape Measure | 1-Inch Wide Blade With Nylon Coating, Matte Finish White & Yellow Dual Sided Rule Print | Ft/Inch/Fractions/Metric (LX-205)
Sale price
$21.97
Regular price
$24.97
Overview

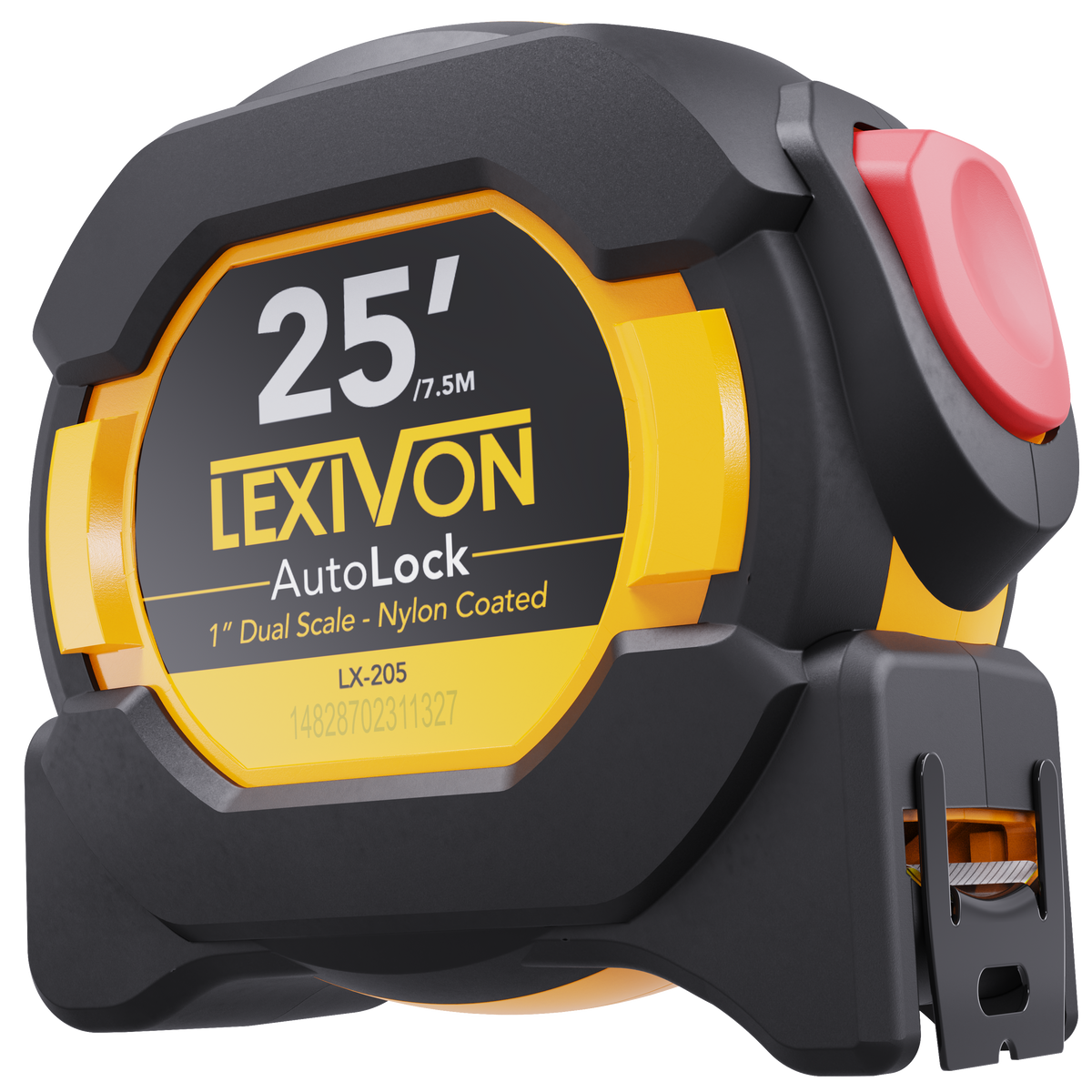

LX-205 is a 25 ft / 7.5 m 1-inch-wide AutoLock tape that holds the blade automatically. Use its double-sided imperial and metric scales for contact layout measurements.
Key Advantages
Two-sided scale
Read Imperial Or Metric

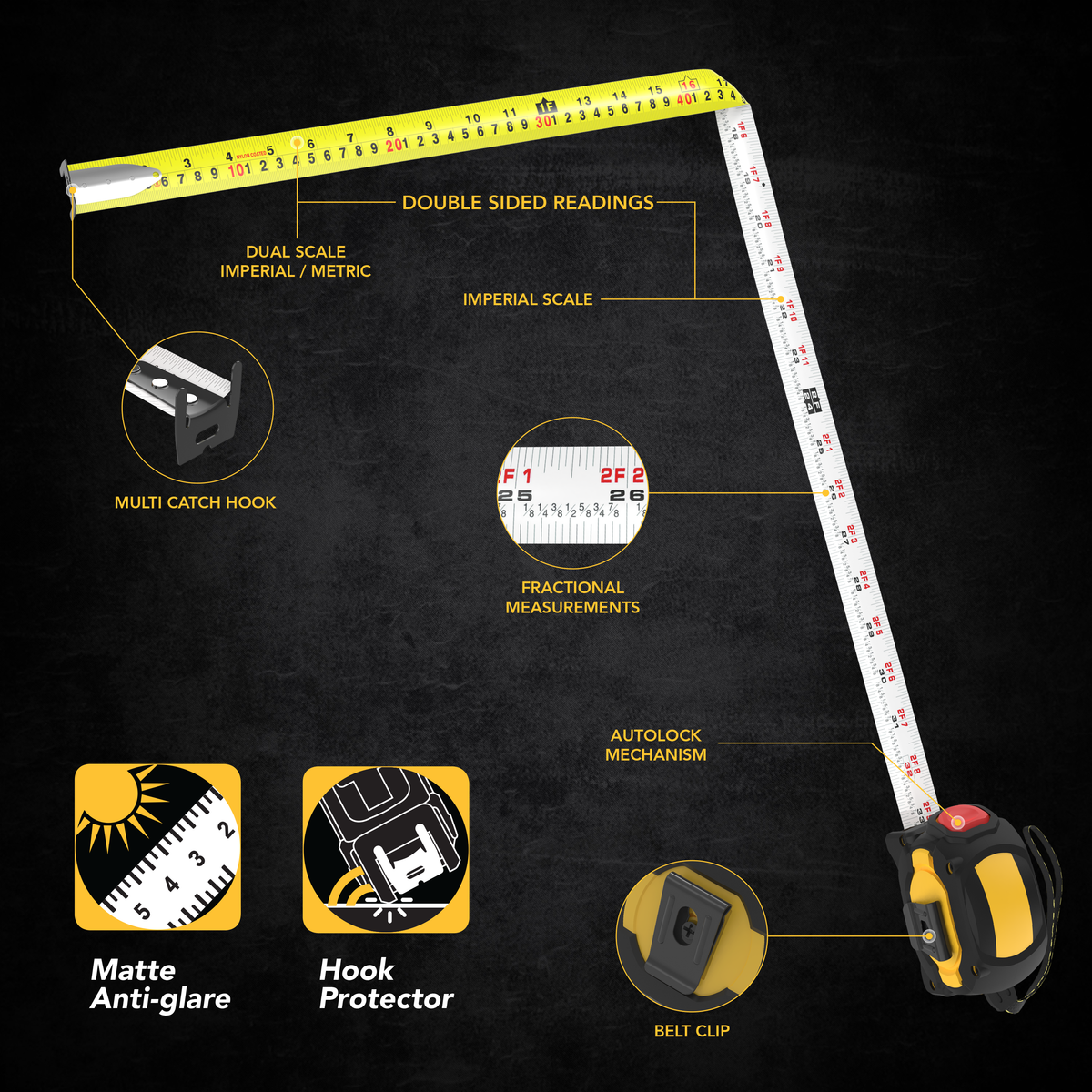

The 1 inch nylon-coated steel blade has white and yellow matte scale faces. Printed fractional markings help you read inches, while the reverse side also carries metric graduations.
In the box
Tape Measure Ready For Layout

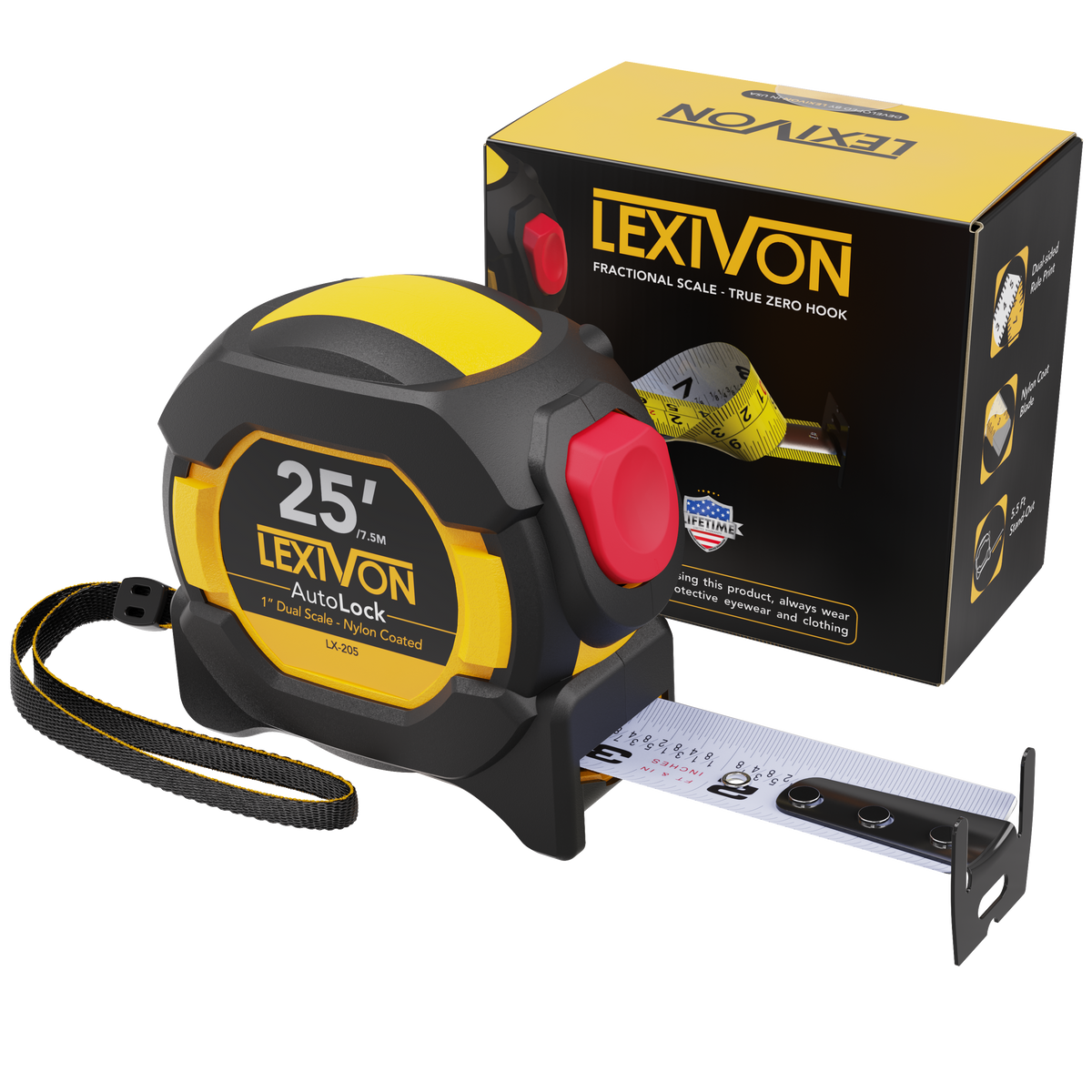

One 25 ft / 7.5 m AutoLock tape measure with a belt clip and wrist strap.
Will it suit the job?
Choose the tape length and locking mechanism for the space you need to measure. Both sides of the blade have markings.
| Job or requirement | Works | What to check |
|---|---|---|
| Furniture and household layout | Yes, within tape length | Measure spans up to 25 ft / 7.5 m; select imperial or metric markings. |
| Inside and outside dimensions | Yes | The movable true-zero hook is intended for push and pull measurements. |
| Measuring from either blade face | Yes | Use the multi-catch hook and read the units printed on that face. |

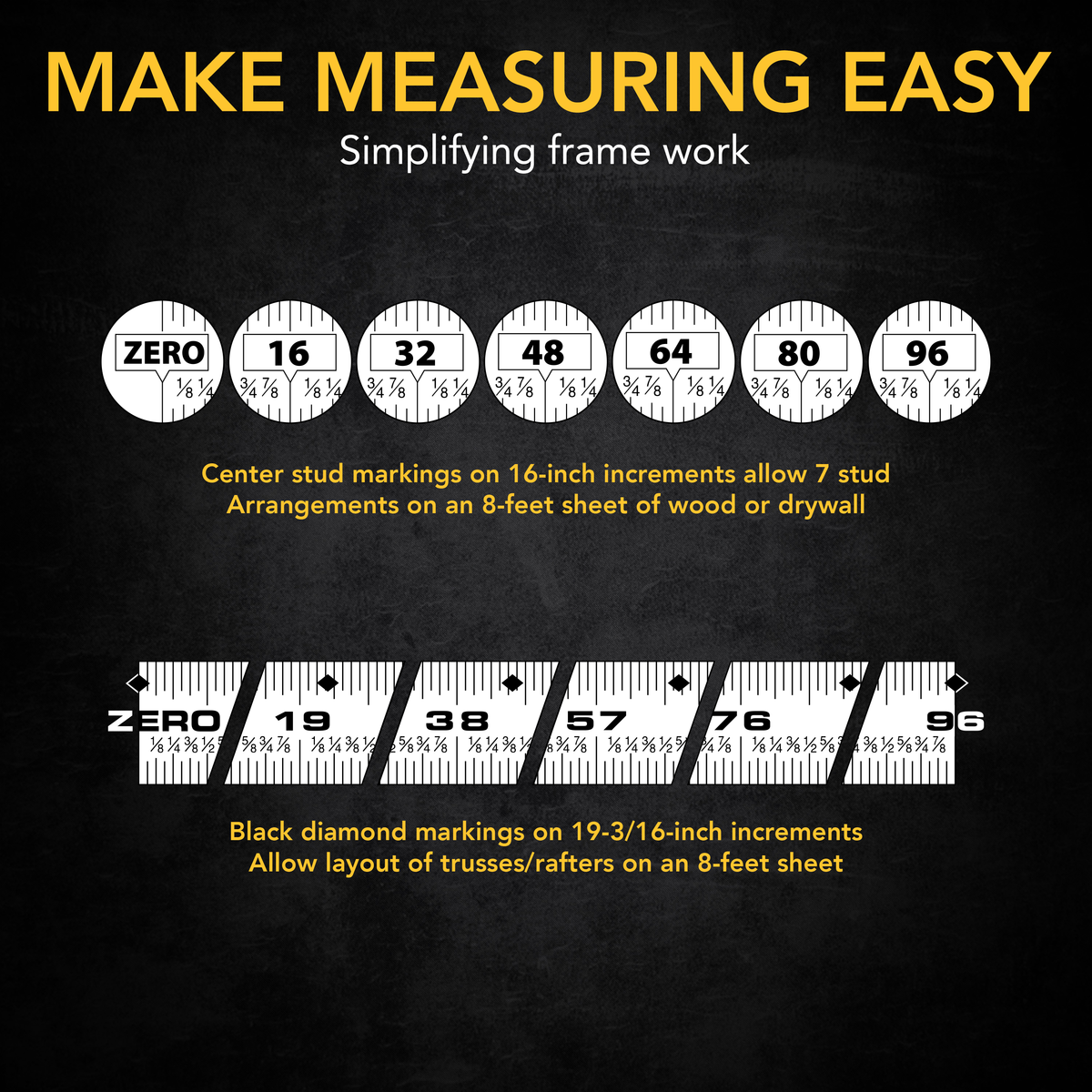

| Framing layout | Yes, as a layout aid | 16-inch center markings are references; confirm the plans and material dimensions. |
| Long unsupported or vertical spans | No guaranteed reach | Support the blade as needed; full tape length does not establish standout. |
| Laser distance readings | No | These are mechanical tapes. LX-201 combines a laser meter with a shorter tape. |
Tech Specs
- Tape length, each
- 25 ft / 7.5 m
- Blade width, each
- 1 inch
- Locking mechanism
- AutoLock
- Scale faces
- Double-sided; white and yellow matte finish
- Units
- Feet, inches, printed fractions and metric
- Blade
- Nylon-coated steel
- Case

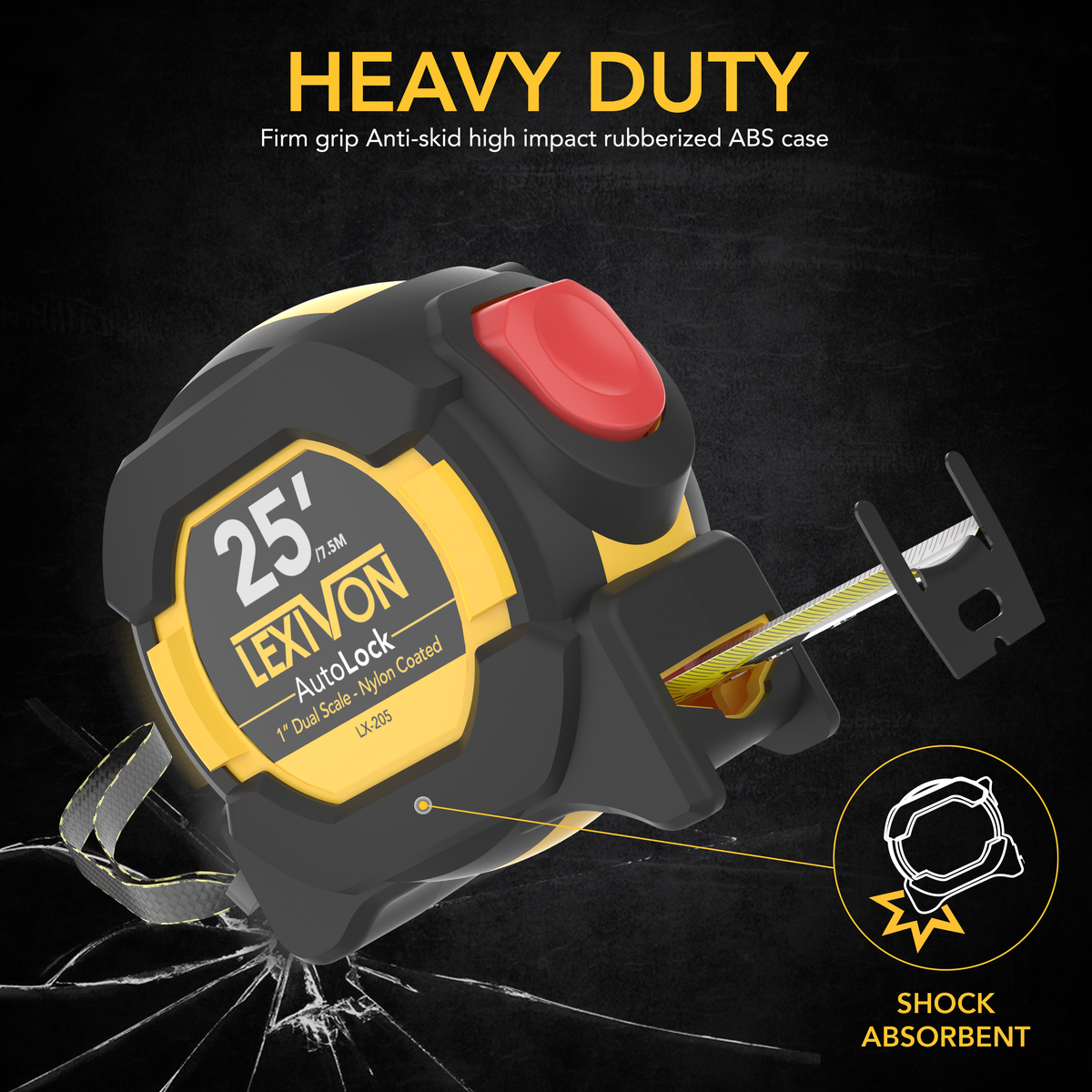

- Rubberized ABS
- Hook
- Movable true-zero multi-catch hook
- Belt clip and wrist strap
- Included
- Pack quantity
- 1
- In the box
- One 25 ft / 7.5 m AutoLock tape measure with a belt clip and wrist strap.
- Country of origin
- China
- Warranty
- Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration. Commercial use: 12 months, cannot be extended; industrial use not covered.
Questions
Will LX-205 hold the blade without moving a thumb slider?
Yes. AutoLock holds the 25 ft / 7.5 m blade when you extend it. You can pull more blade out without pressing the release button.
Can I use the AutoLock tape for a room renovation?
Its 25 ft / 7.5 m range suits contact measurements within that span. Check your longest dimension and read the intended imperial or metric face before transferring a mark.
Does the automatic stop shorten its measuring range?
No. LX-205 is still rated as a 25 ft / 7.5 m tape; the AutoLock mechanism changes how the blade is held, not the marked measuring length.
Can the multi-catch hook grab an edge when the blade is inverted?
Use the hook with either side of the blade. Turning the blade exposes the other scale face, so check its units before marking the workpiece.
Can I push the hook against the inside of an opening?

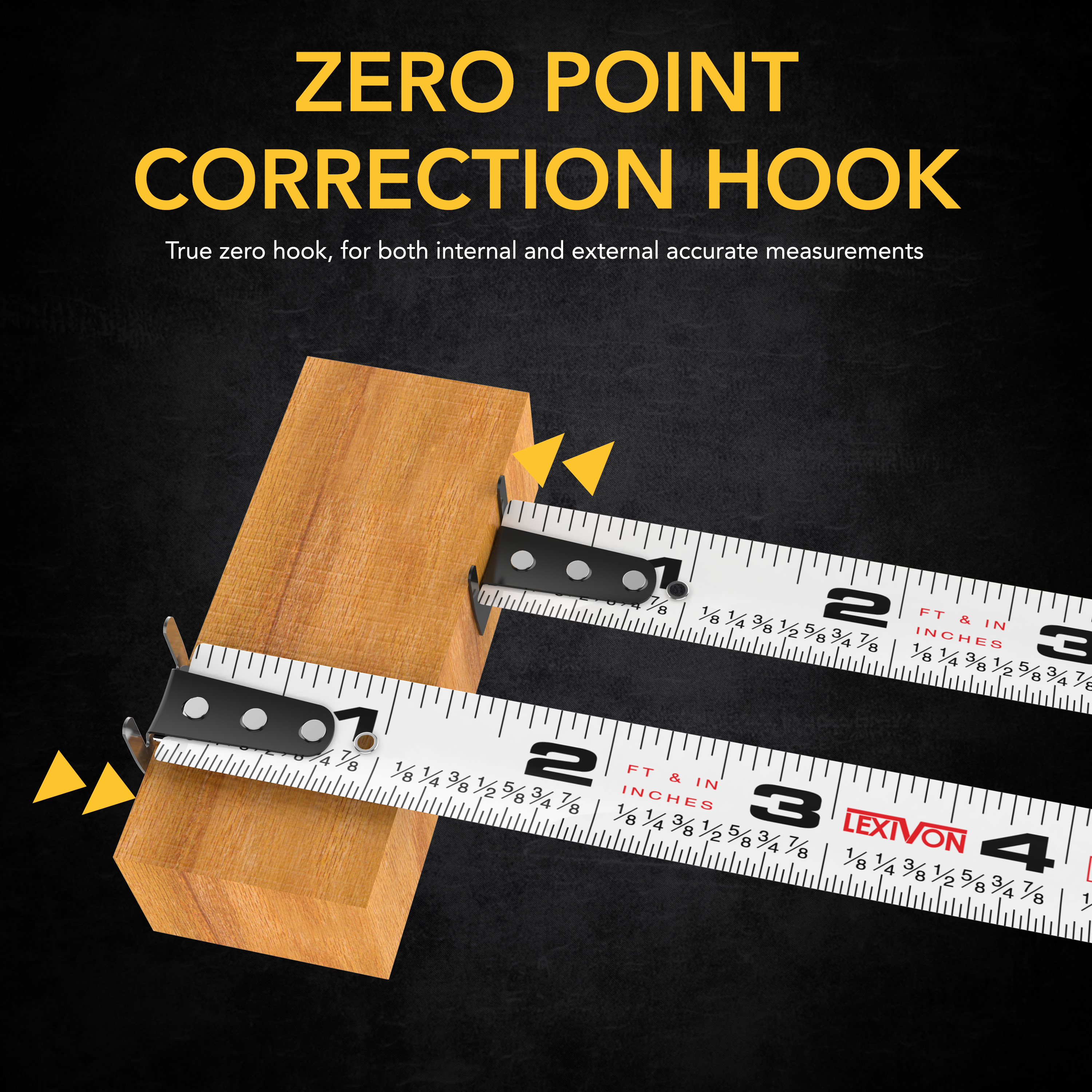

Yes. The movable hook supports the inside push position as well as an outside pull position. Automatic blade holding is separate from the hook's zero compensation.
Does the automatic lock promise an 8-foot unsupported span?
An 8-foot unsupported span is not guaranteed. The 25-foot label describes total scale range; support the blade for long or vertical contact measurements.
Which button releases the AutoLock blade?
Use the AutoLock push button. Unlike LX-206, LX-205 does not use a sliding thumb lock and separate bottom speed brake.
Can I control withdrawal instead of letting the tape snap back?
Press the AutoLock button to retract smoothly, and control the blade as it withdraws. Use the button for slow withdrawal.
What units are visible on the reverse of LX-205?
The yellow blade face includes metric and imperial markings. The white side emphasizes feet, inches and fractions; a front-face view alone is not the whole unit inventory.
Are the fractions printed as numbers?
The two-sided blade has fractional graphics. Read the printed labels and tick marks for the required inch reading; no finer numerical accuracy tolerance is verified.
Will the nylon layer protect an AutoLock tape from all corrosion?

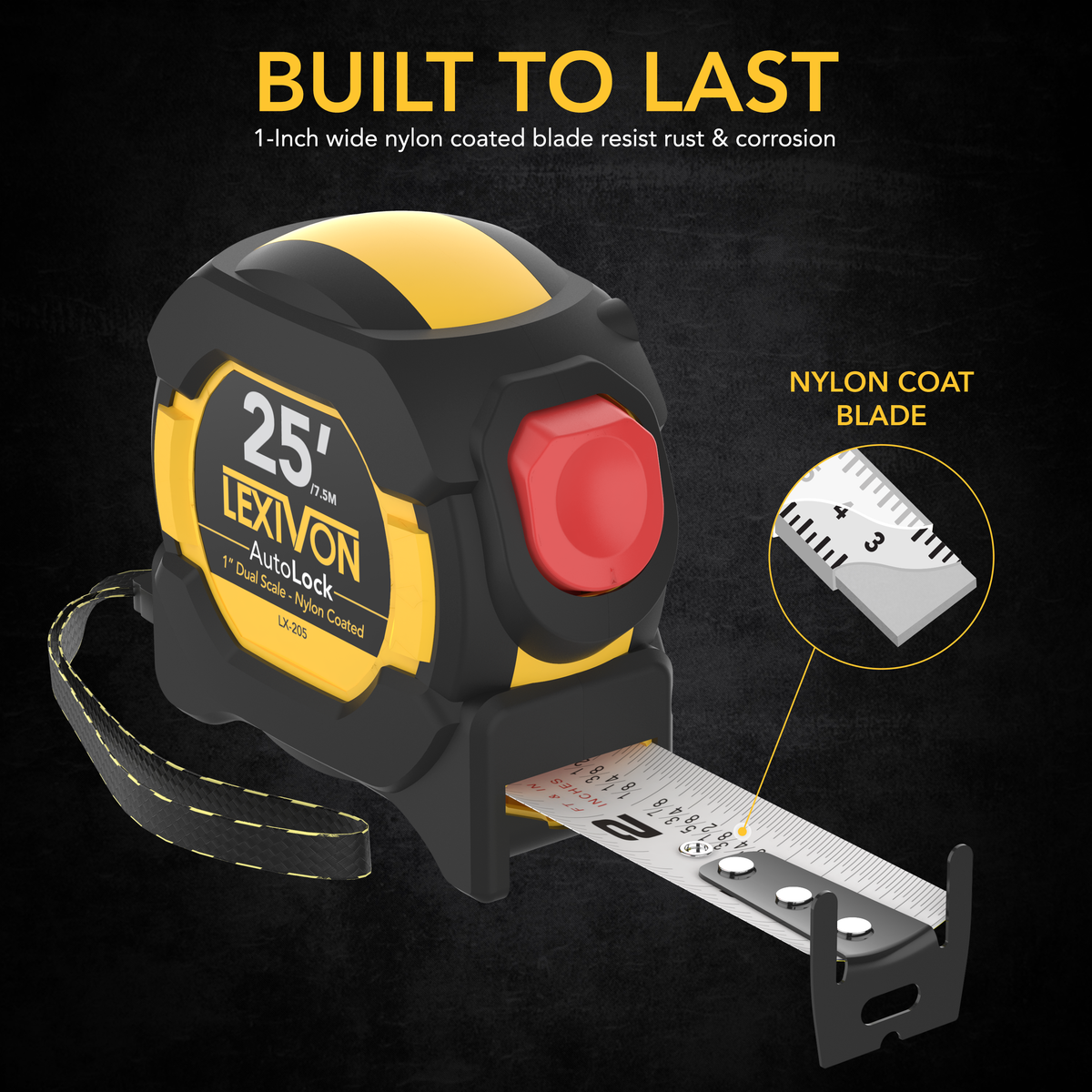

The coating is described as helping resist rust and corrosion on the steel blade. It is not a guarantee of corrosion-free service or an assembled-tool waterproof rating.
Is the 1-inch blade the same size as the smaller LX-200 blade?
No. LX-205 has a 1-inch-wide, 25 ft / 7.5 m blade; LX-200 has a 3/4-inch-wide, 10 ft / 3 m blade.
Should I choose LX-205 or LX-206 for the same 25-foot job?
Choose LX-205 for automatic blade holding and button release. LX-206 uses a sliding lock and bottom speed brake. Their blade length and width are both 25 ft / 7.5 m and 1 inch.
Can I buy several AutoLock tools without mixing lock styles?
The LX-205X2, LX-205X3 and LX-205X4 options are two-, three- and four-packs of this AutoLock model. LX-204 instead combines AutoLock with DuaLock.
What is supplied with the individual LX-205?

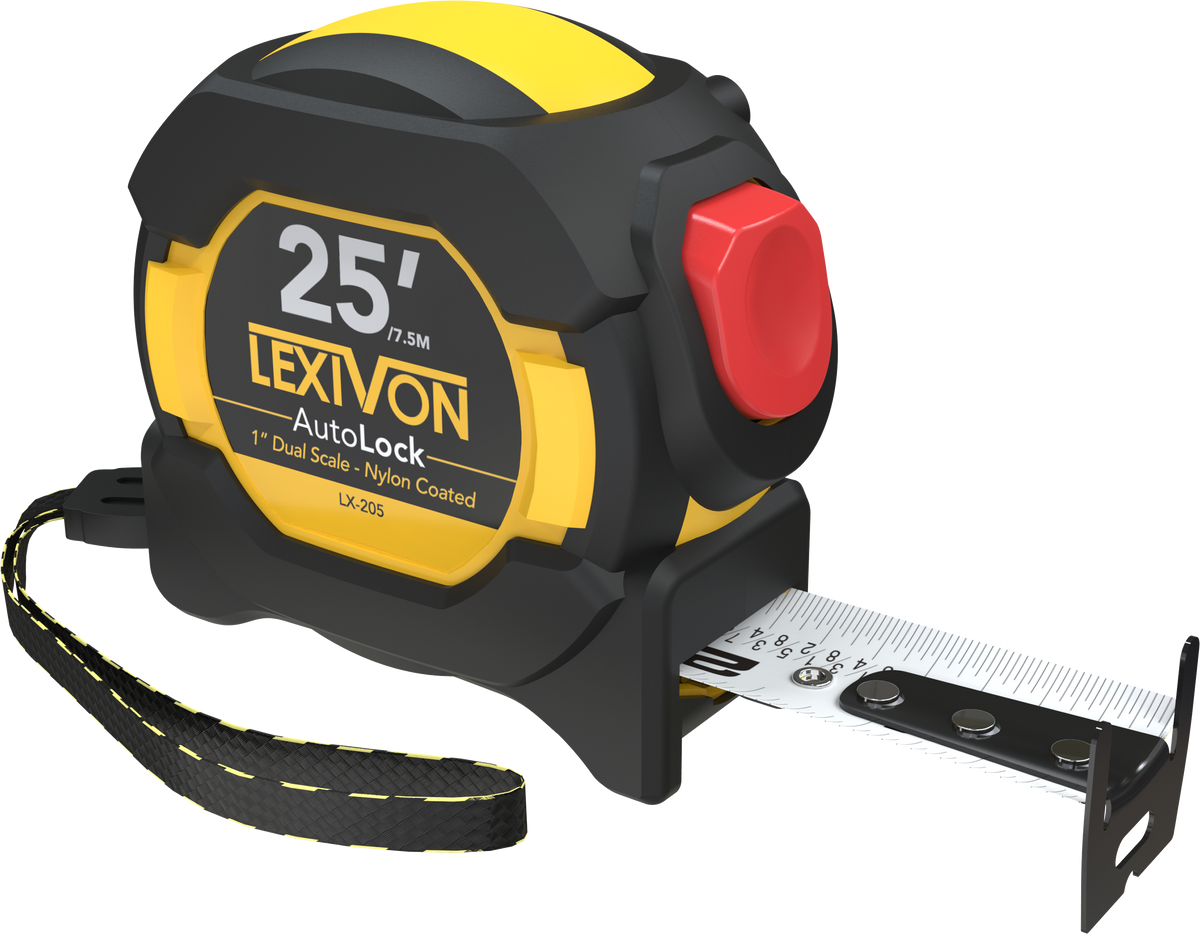

The single-tool package includes one 25 ft / 7.5 m AutoLock tape with an attached wrist strap and rear belt clip.
Does the automatic brake require electrical power?
No. AutoLock is a mechanical blade-holding system; the tool has printed scales and no battery-powered display.
Can I remove the belt clip to make it fit a pouch?
The tool is pictured with its original clip. A fit or modification procedure is not verified, so check your pouch dimensions and contact Lexivon instead of assuming modification preserves coverage.
Is AutoLock wear covered for life?
Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration. That eligibility covers defects, not normal mechanism wear, misuse or alterations. Commercial coverage is 12 months without extension; industrial use is excluded.
Why does the end hook move?
It is a movable true-zero hook for inside and outside measurements. Intended movement alone does not establish damage; contact Lexivon about a bent hook or loose assembly.
How should I bring the blade back into the housing?
For LX-205, press the release button and let the blade withdraw under control. Retract slowly rather than allowing uncontrolled spring return.
What if the lock no longer holds the measurement?
Check that you are using the correct lock control. If the blade still slips, stop relying on the held reading and contact Lexivon.
What if the blade becomes kinked or twisted?
Stop relying on readings from a damaged blade and contact Lexivon about next steps. Do not assume straightening a damaged blade restores measurement accuracy.
Can I replace the blade with another brand's part?
Cross-brand replacement fit is not verified. Ask Lexivon for confirmed parts; the policy excludes damage from non-original parts and tool modifications.
Does coverage include normal wear or accidental damage?
No. Warranty coverage excludes normal wear and tear, accidents, misuse, modifications and damage from non-original parts. Warranty resolution for covered defects is at Lexivon's discretion and coverage is not transferable.
