Choose How The Blade Holds
2 tools supplied. The 25 ft / 7.5 m 1-inch blade uses a sliding lock to retain the reading and a bottom speed brake to control retraction.

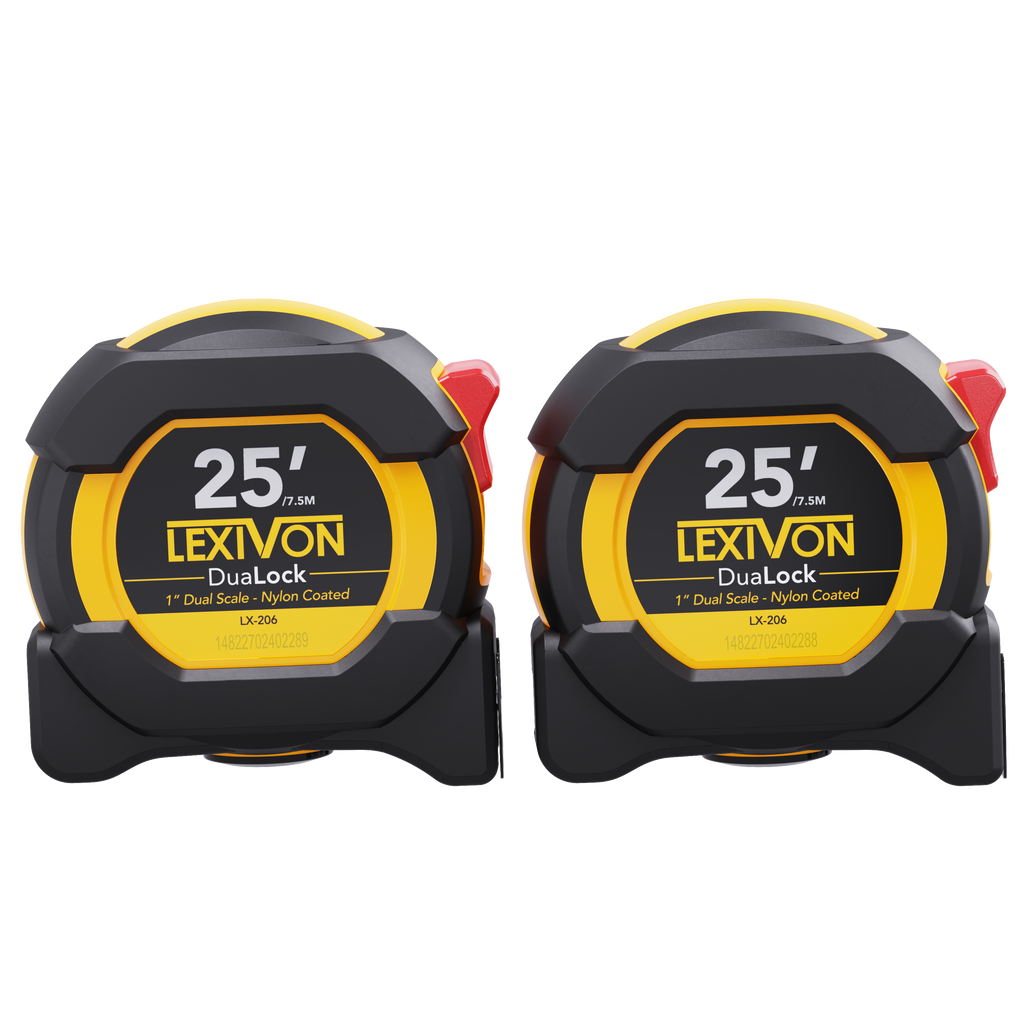

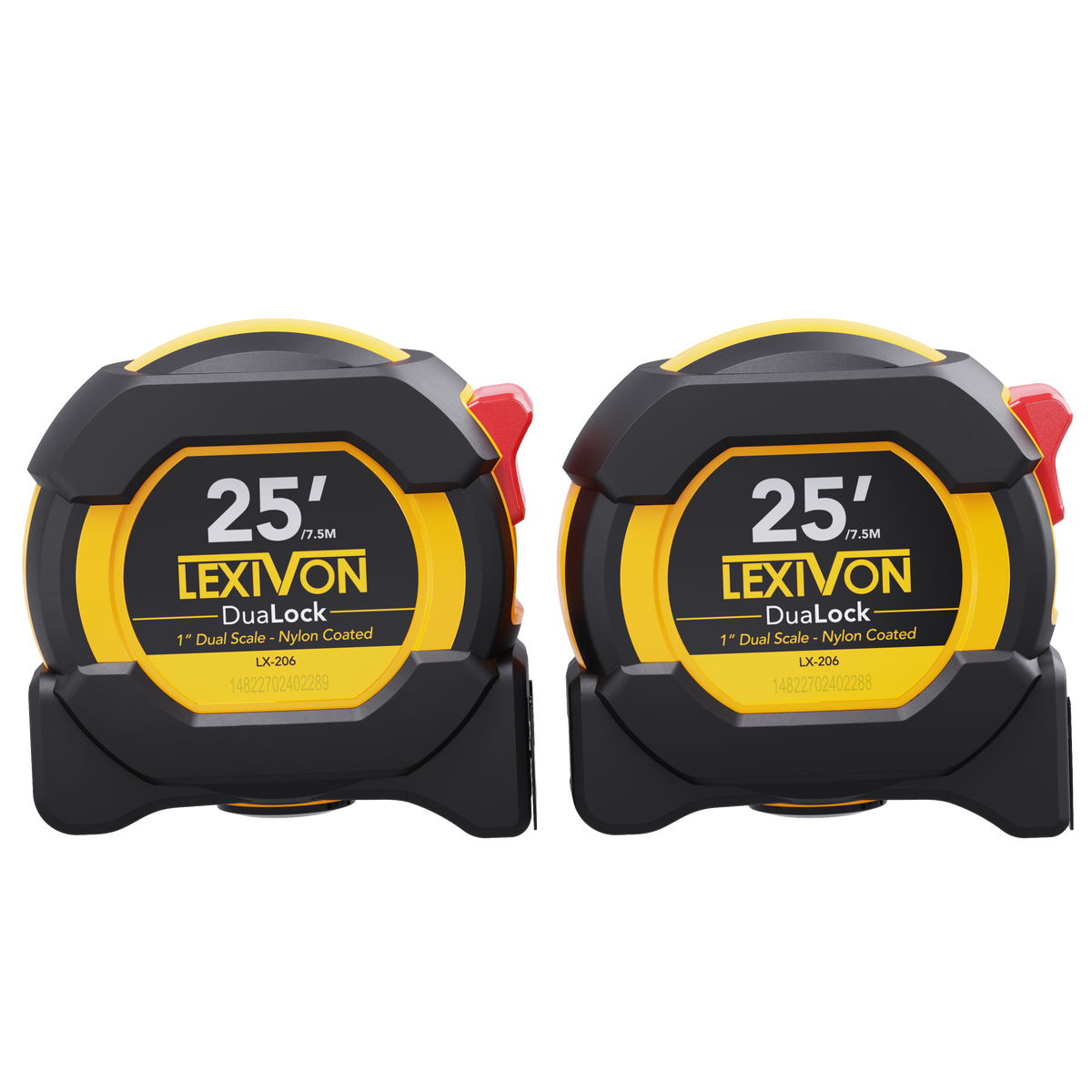

LX-202 supplies 2 LX-206 DuaLock tapes, each with a 25 ft / 7.5 m, 1 inch blade. Read imperial and metric scales on either blade face and use each tool independently.
2 tools supplied. The 25 ft / 7.5 m 1-inch blade uses a sliding lock to retain the reading and a bottom speed brake to control retraction.

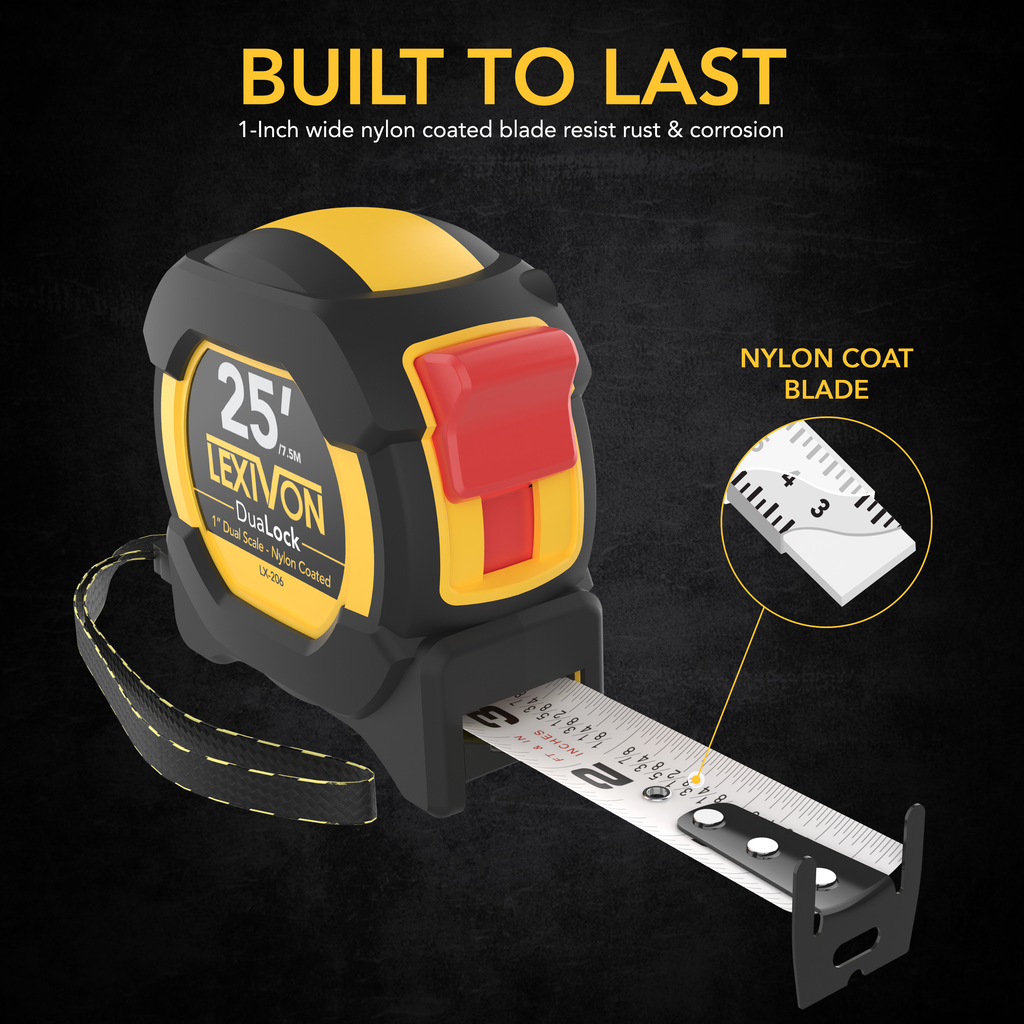

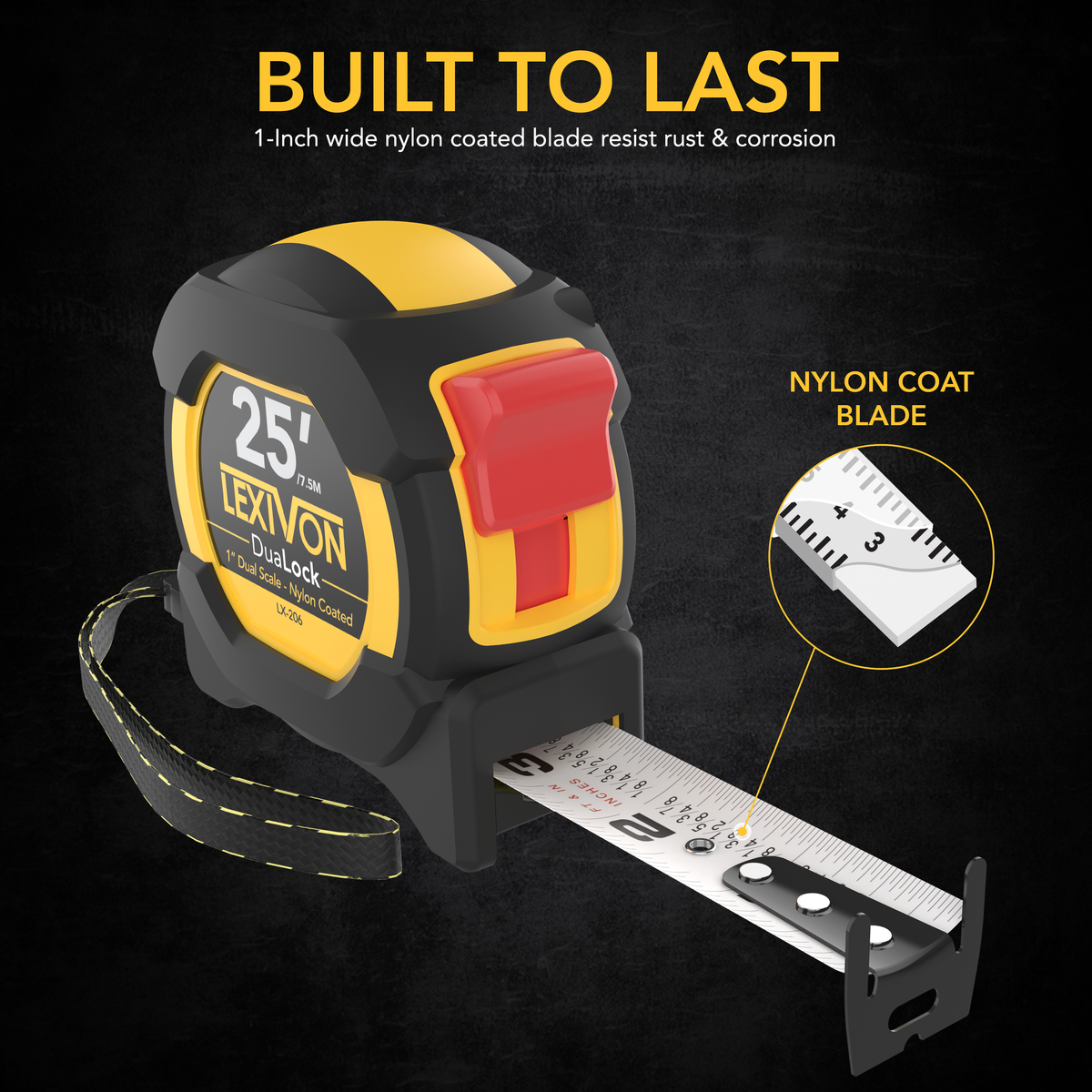

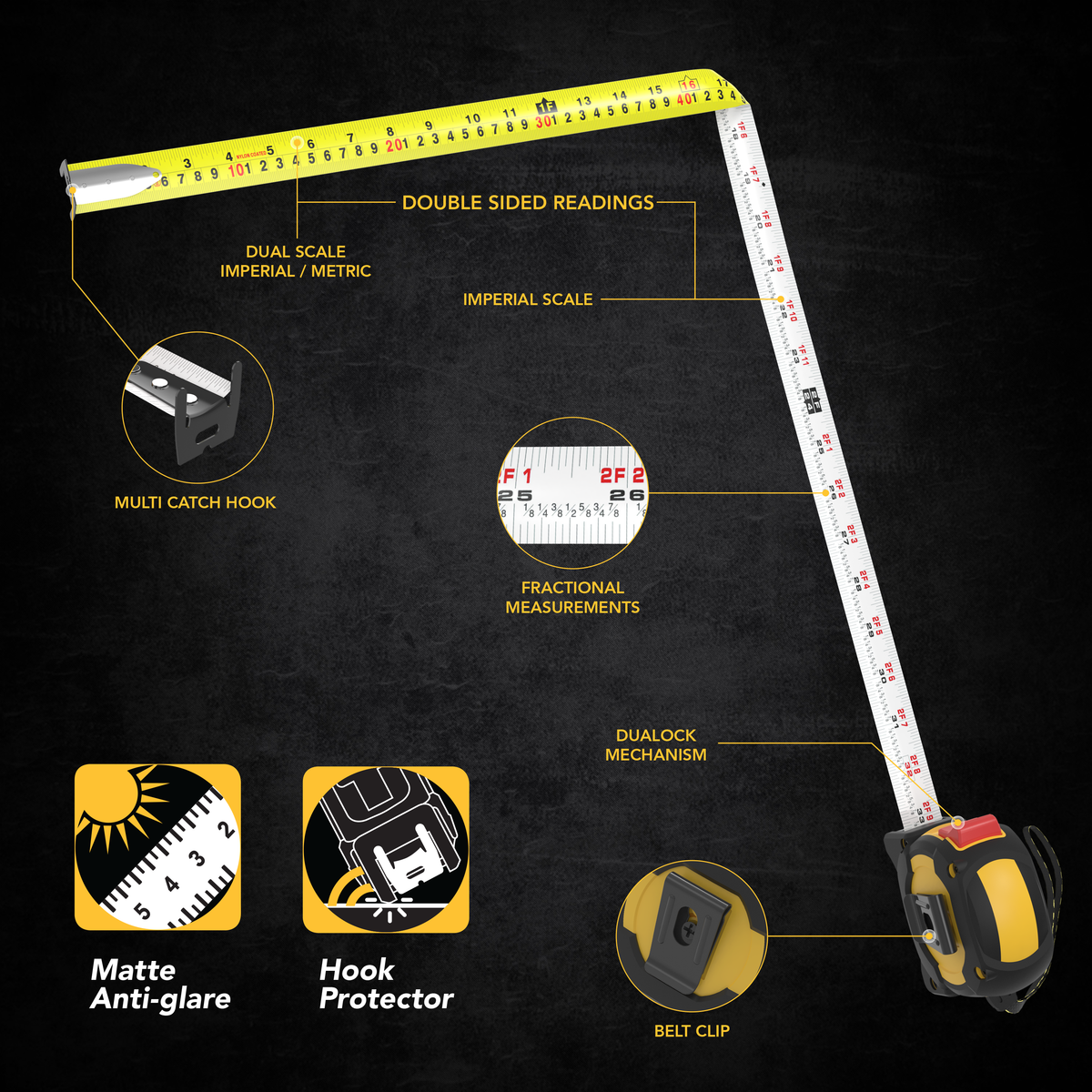

The 1 inch nylon-coated steel blade has white and yellow matte scale faces. Printed fractional markings help you read inches, while the reverse side also carries metric graduations.

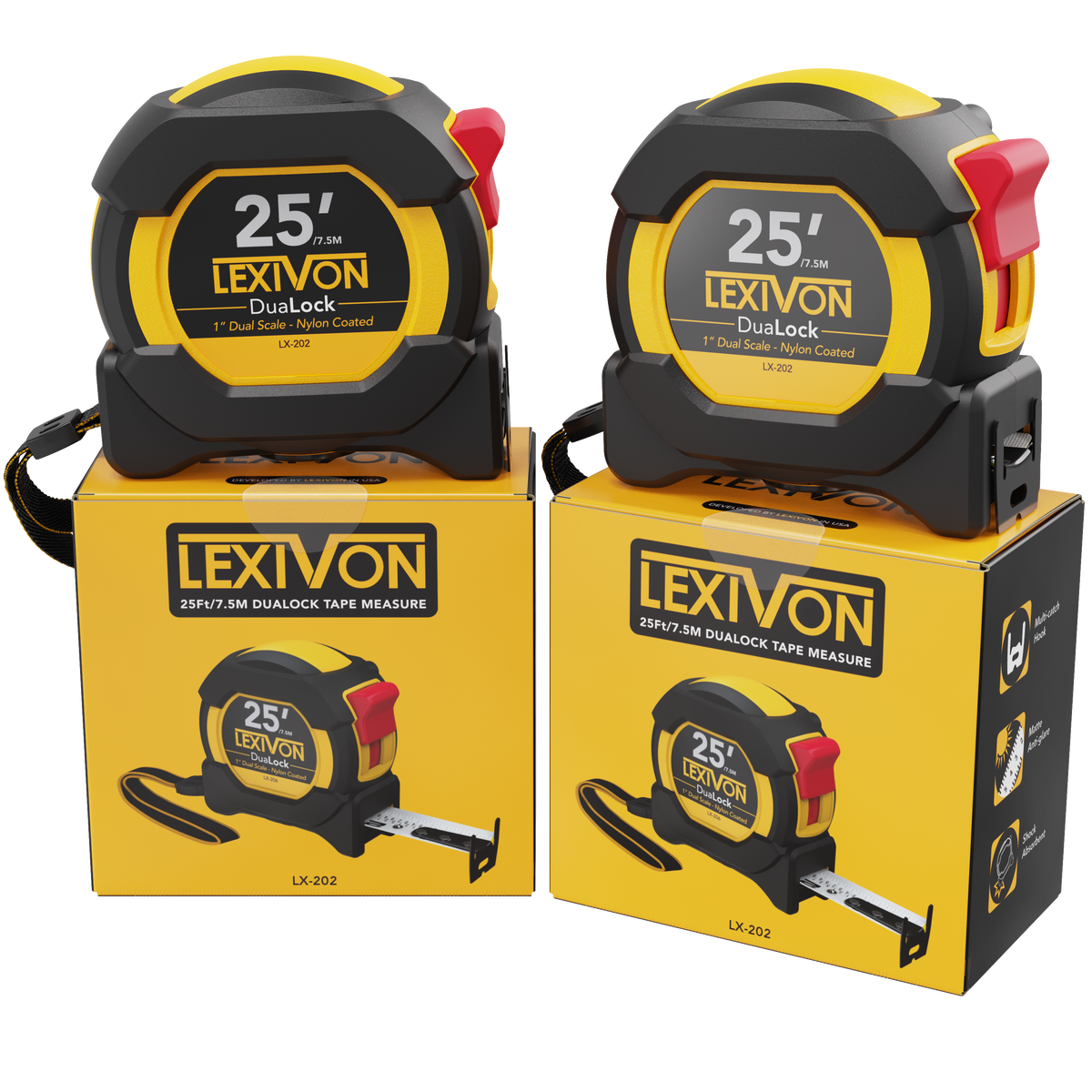

2 25 ft / 7.5 m DuaLock tape measures, each with a belt clip and wrist strap.

Choose the tape length and locking mechanism for the space you need to measure. Both sides of the blade have markings.
| Job or requirement | Works | What to check |
|---|---|---|
| Furniture and household layout | Yes, within tape length | Measure spans up to 25 ft / 7.5 m; select imperial or metric markings. |
| Inside and outside dimensions | Yes | The movable true-zero hook is intended for push and pull measurements. |
| Measuring from either blade face | Yes | Use the multi-catch hook and read the units printed on that face. |
| Framing layout | Yes, as a layout aid | 16-inch center markings are references; confirm the plans and material dimensions. |
| Long unsupported or vertical spans | No guaranteed reach | Support the blade as needed; full tape length does not establish standout. |
| Laser distance readings | No | These are mechanical tapes. LX-201 combines a laser meter with a shorter tape. |
Yes, for distances up to 25 ft / 7.5 m. Extend the 1-inch blade, secure the thumb slider at the reading and support the blade when the span requires it.
Metric appears on the yellow reverse face along with imperial markings. The white face is not the complete scale inventory; turn the blade to read the intended unit.
Its multi-catch hook and double-sided rule support either blade orientation. Read the exposed scale rather than trying to infer an unseen mark on the other face.

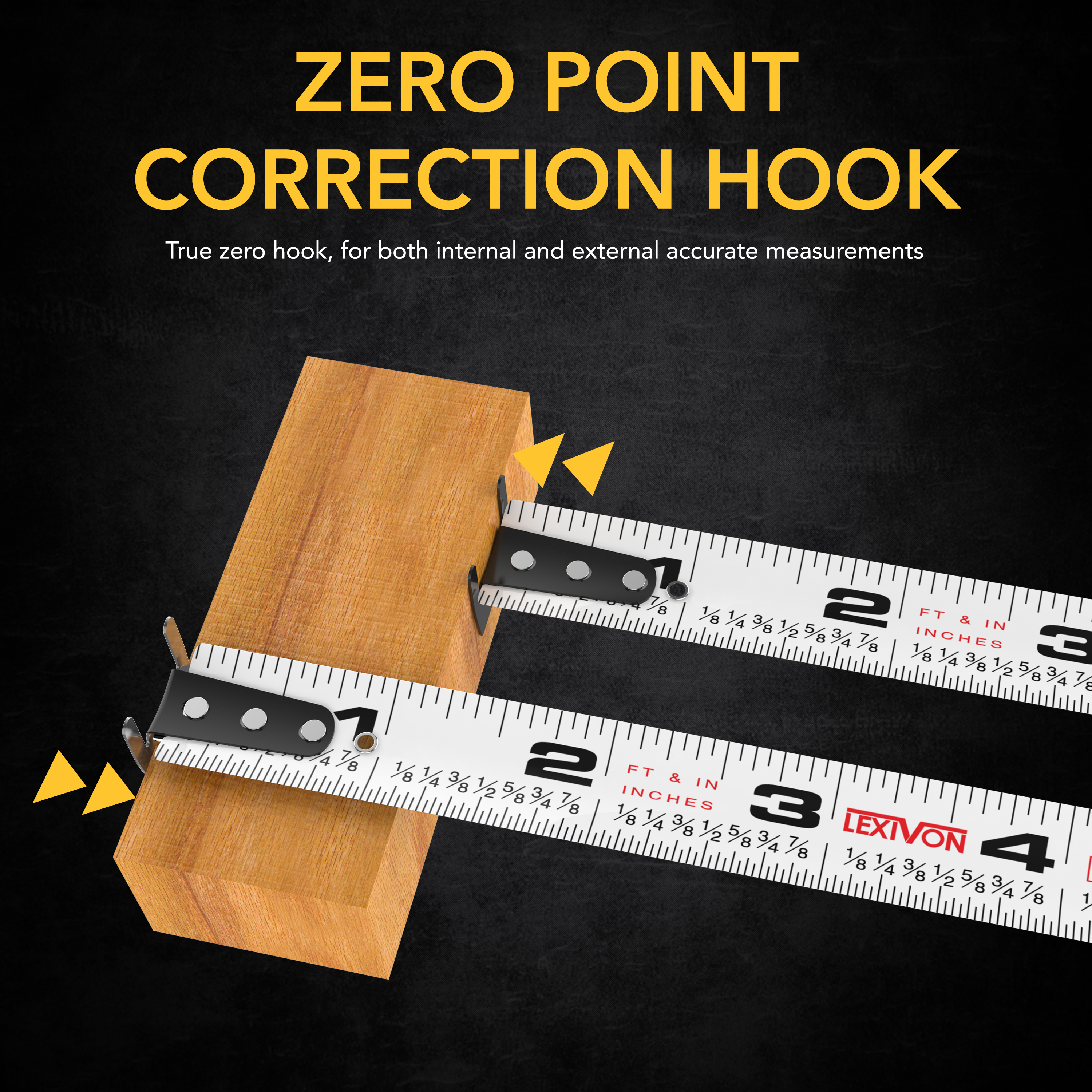

No. The hook moves to compensate for inside push and outside pull readings. Leave it free to move when measuring.
No tested standout is guaranteed. Treat 25 ft / 7.5 m as blade length and support longer spans.

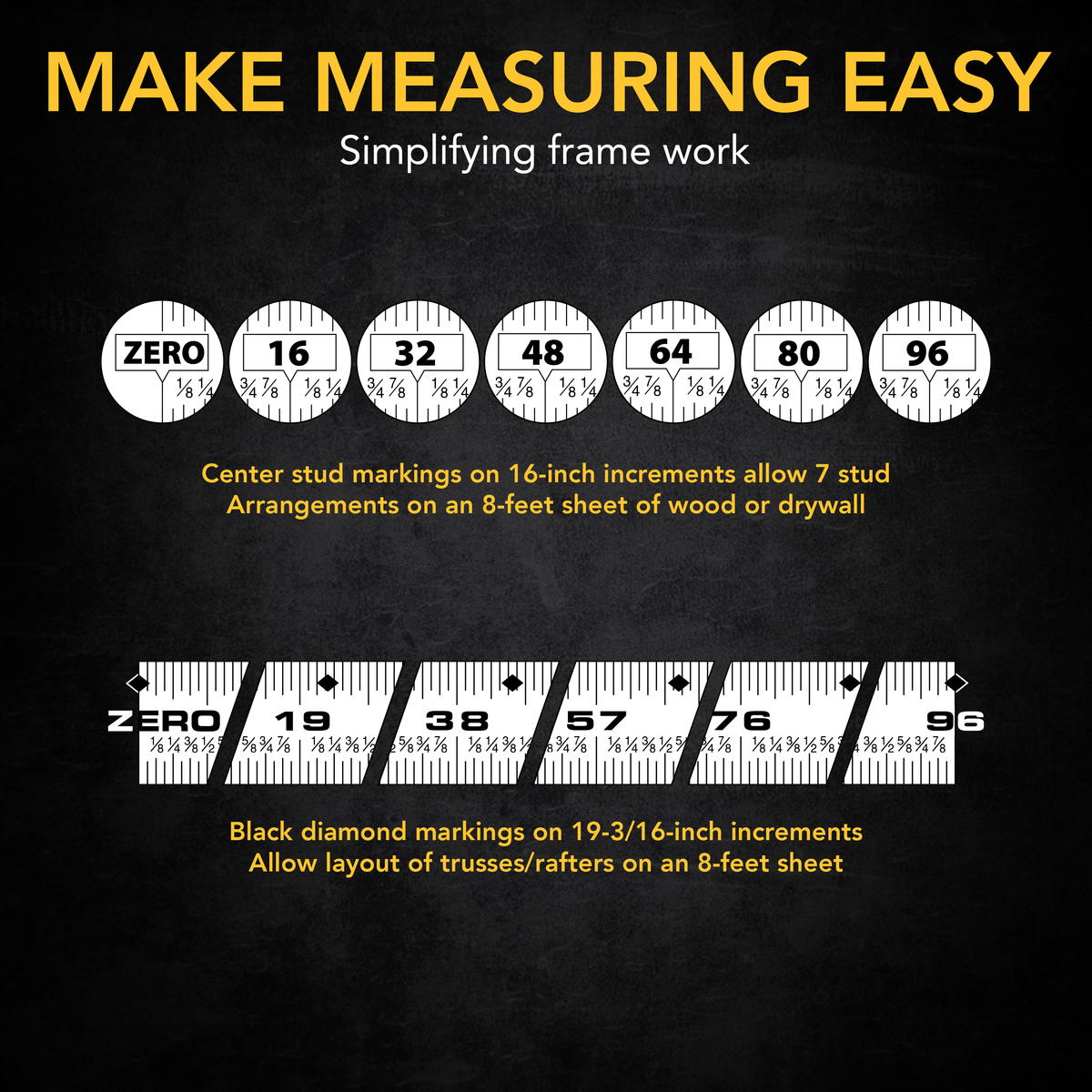

No. The blade's 16-inch center marks help repeated layout, but the intended framing spacing comes from the project plans and material requirements.

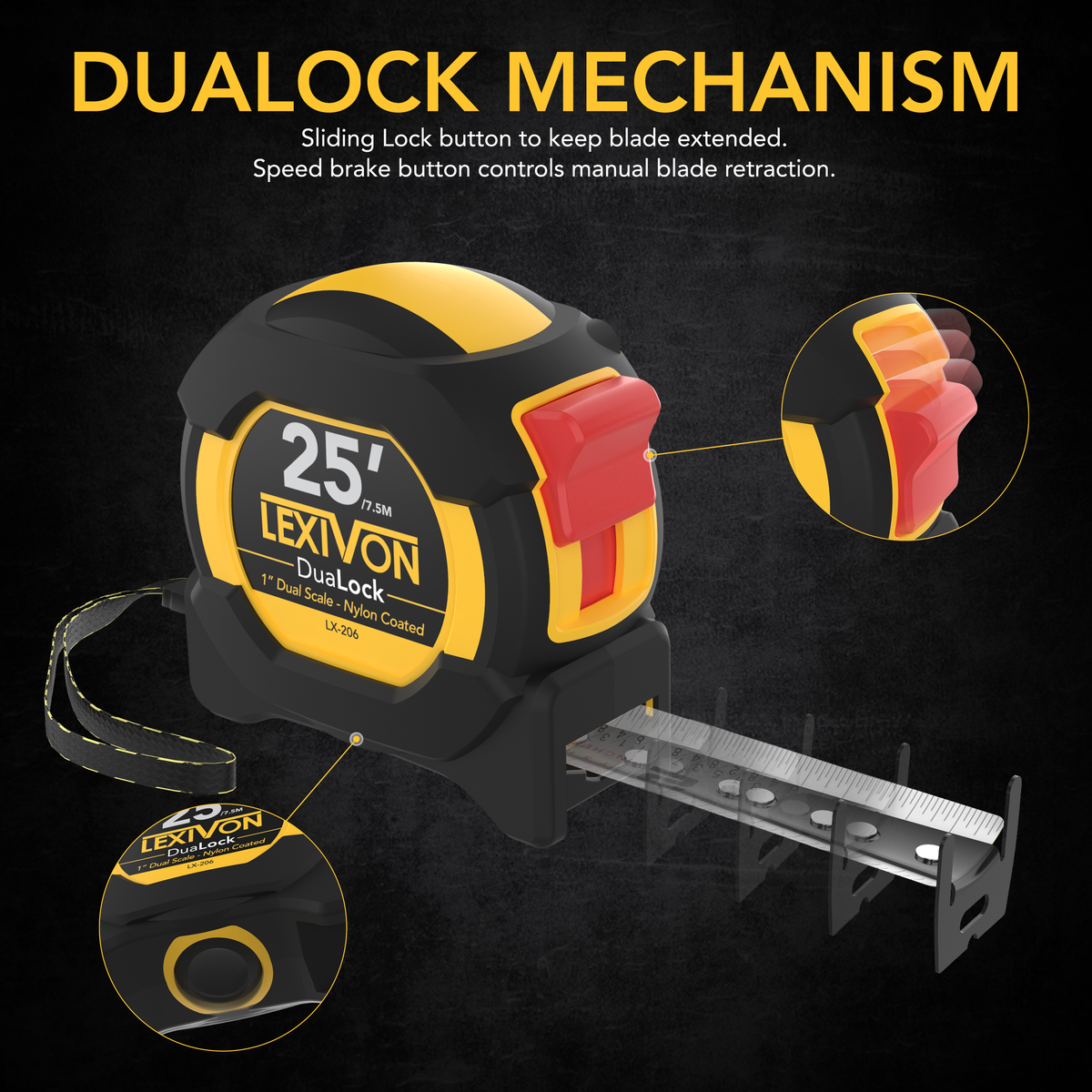

No. LX-206 uses a thumb sliding lock for the held reading and a bottom brake for blade motion. LX-205 holds on extension automatically.
The speed brake controls retraction after unlocking the slider. Use the thumb lever to retain a reading rather than assuming the brake is a second latched lock.
The blade includes printed fractional graphics. Those labels aid reading, but they do not prove a smaller accuracy tolerance or replace choosing the correct scale face.

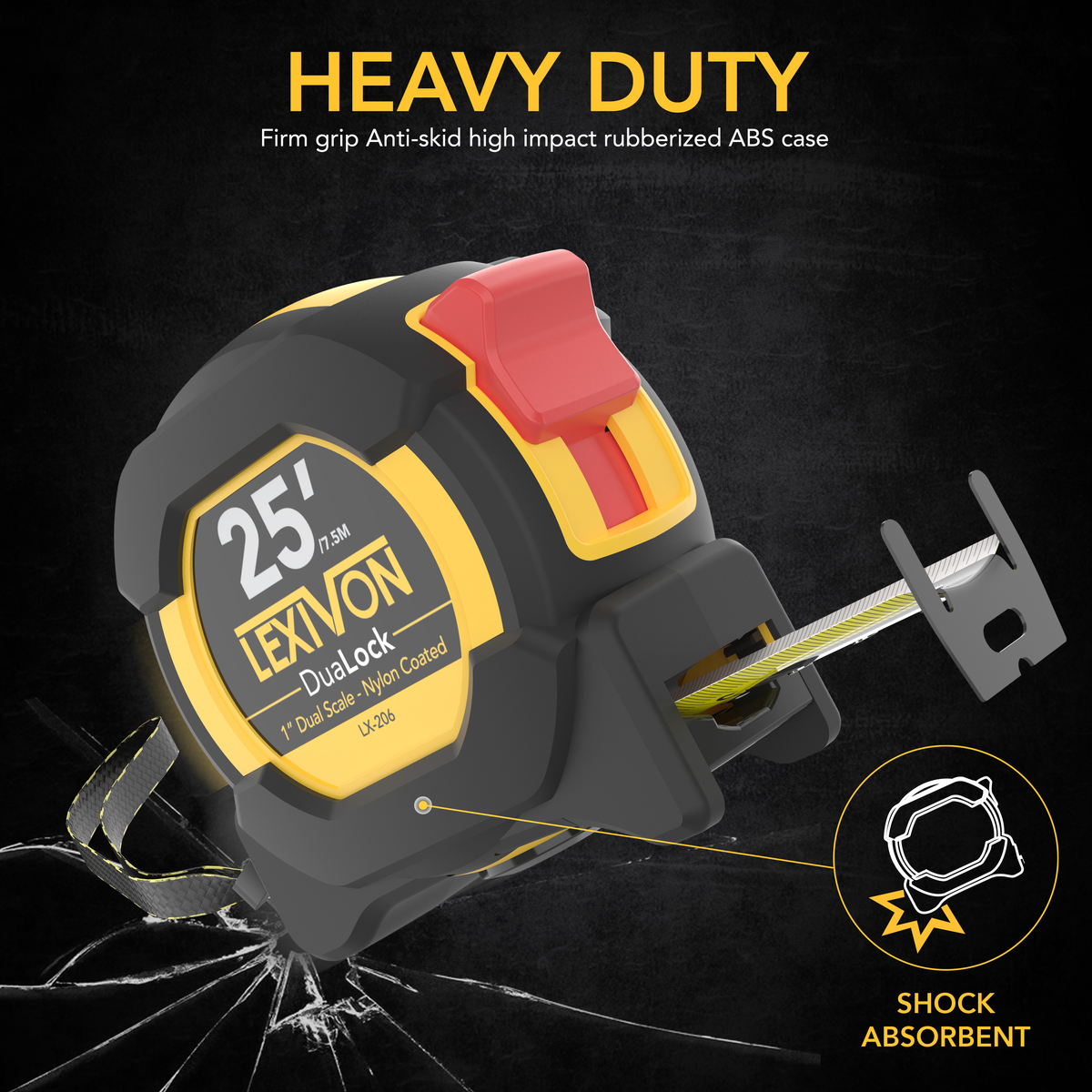

Only the blade is specified as steel, with a nylon coating. The grip housing is rubberized ABS; the spring is described as heat-treated manganese.
No lifetime corrosion-free performance is promised. The blade coating provides rust and corrosion resistance, while no waterproof enclosure rating is verified.
LX-206 is a contact tape with printed scales. The separate LX-201 supplies laser distances up to 130 ft / 40 m alongside a shorter 16 ft / 5 m tape.
LX-202 supplies 2 tapes; LX-206 supplies one. Each pack member uses the same base-model blade length, width and locking mechanism.
LX-207 reaches 16 ft / 5 m; LX-206 reaches 25 ft / 7.5 m. Both are 1-inch-wide DuaLock tapes, so choose by the longest contact measurement you need.
2 25 ft / 7.5 m DuaLock tape measures, each with a belt clip and wrist strap.

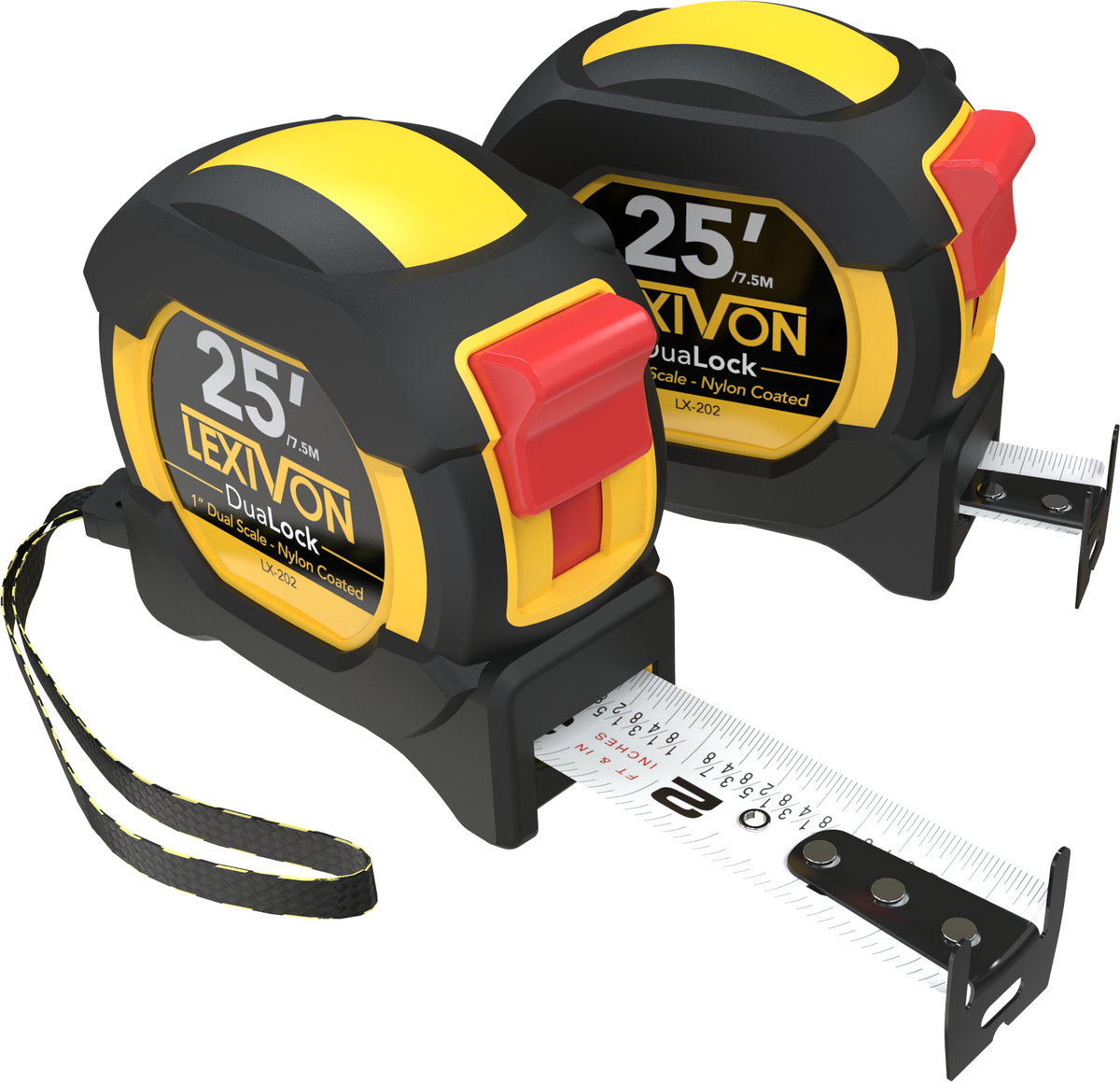

Yes. This pack supplies 2 copies of the same LX-206 tape model.
Confirm the tool weight with Lexivon if it affects your belt or toolbox choice.
Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration. It is defect coverage; commercial use remains 12 months and industrial use is not covered.
It is a movable true-zero hook for inside and outside measurements. Intended movement alone does not establish damage; contact Lexivon about a bent hook or loose assembly.
After recording your LX-206 reading, release the sliding lock. Use the bottom speed brake to manage the returning blade while keeping it controlled.
Check that you are using the correct lock control. If the blade still slips, stop relying on the held reading and contact Lexivon.
Stop relying on readings from a damaged blade and contact Lexivon about next steps. Do not assume straightening a damaged blade restores measurement accuracy.
Cross-brand replacement fit is not verified. Ask Lexivon for confirmed parts; the policy excludes damage from non-original parts and tool modifications.
No. Warranty coverage excludes normal wear and tear, accidents, misuse, modifications and damage from non-original parts. Warranty resolution for covered defects is at Lexivon's discretion and coverage is not transferable.
