Metric Keys From 1.27 To 10 mm
Keep the 13 listed millimeter sizes together in the marked holder. Choose this metric group for a matching hex specification; an SAE or star group is not part of the package.

LX-130H-MM

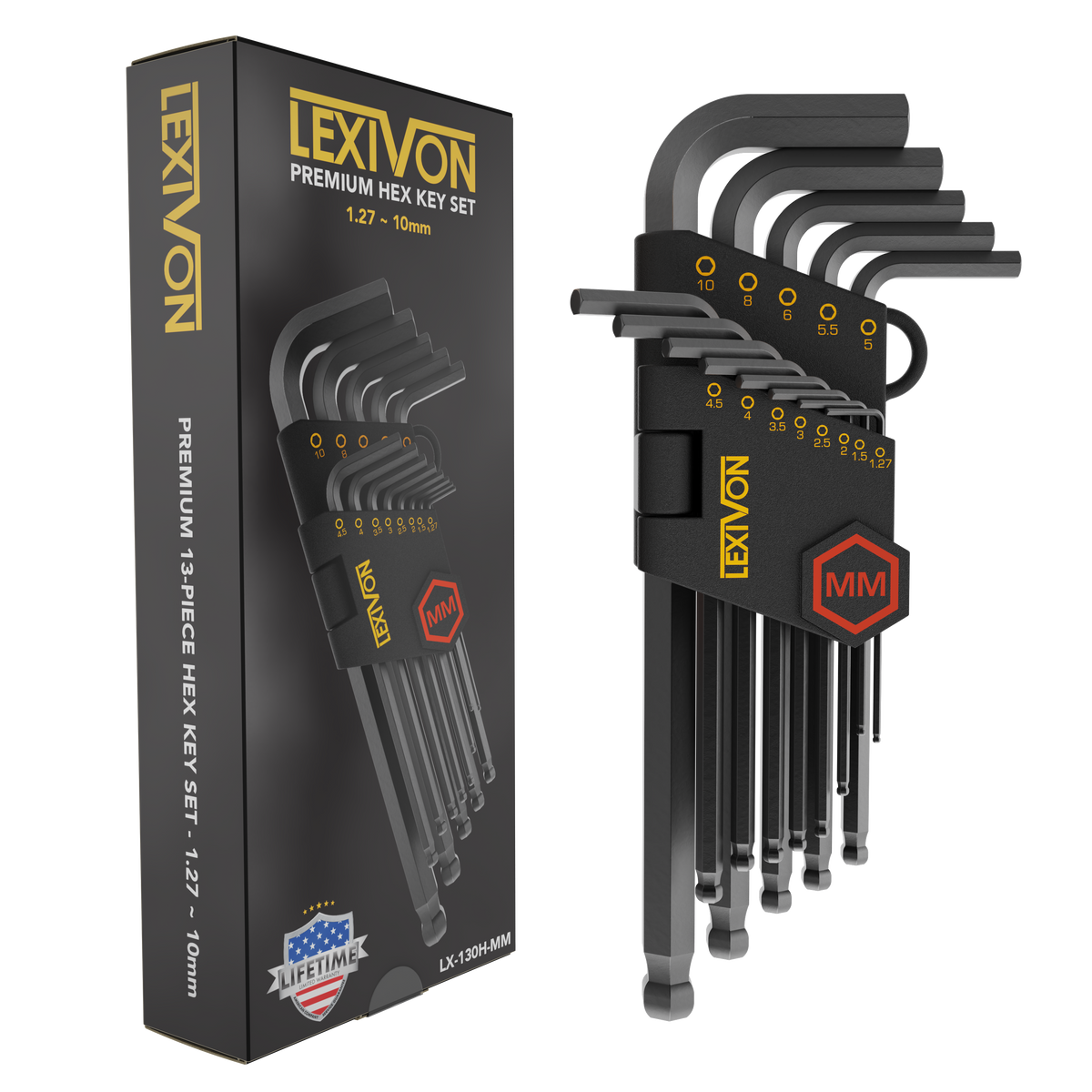

LX-130H-MM is the metric-only 13-key hex set, with listed sizes from 1.27 through 10 mm. Ball-ended long-arm keys sit in one marked folding holder, keeping the millimeter group together for matching recesses.
Keep the 13 listed millimeter sizes together in the marked holder. Choose this metric group for a matching hex specification; an SAE or star group is not part of the package.

S2 alloy steel keys have a manganese phosphate coating for corrosion resistance. No numeric torque or hardness rating is specified.
The package supplies 13 keys in a marked folding holder. Other size groups and a separate carrying case are not listed contents.
Choose by the exact hex recess and marked size, then check working clearance. Key count does not establish universal vehicle or furniture compatibility.
| Fastener or task | Works | What to check |
|---|---|---|
| Matching metric recesses | Within listed sizes | Check the full size list and exact fastener profile. |
| Different recess profile | No matching profile | Choose hex or star keys according to the actual screw recess. |
| Pin-in-center security Torx | Not verified | No security-hole feature is documented for this set. |
| Furniture and automotive work | Application dependent | Match recess size and profile; check room for the long arm. |
| Calibrated tightening | No measuring function documented | Use an appropriate torque procedure when the fastener requires measured torque. |
Its 13 separate hex keys cover the listed entries from 1.27 to 10 mm. This is the metric-only group; no fractional-inch holder or star-key group is listed with it.
The 13 sizes are 1.27, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 8 and 10 mm.
Yes, 4 mm is one of the 13 listed metric sizes. Keep it in its marked holder; individual pieces are not sold separately.
Eleven millimeters is not in this SKU's published list, whose largest entry is 10 mm. Choose another documented size if the fastener requires 11 mm.
Yes, 5.5 mm and 6 mm are two distinct entries. Select the required marking rather than substituting one for the other.
This package lists millimeter keys. Get the specified inch key when your screw requires a fractional-inch size; no SAE group is listed in LX-130H-MM.
The published lower entry is 1.27 mm, followed by 1.5 mm. Check the actual required size, particularly for a small recess where a near fit is insufficient.
The set has laser-etched key sizes and a printed holder. Read the millimeter marking on the metric group; you do not need to infer its size from an SAE label.
The listed design combines hex ball ends with chamfered edges on long-arm L-keys. No maximum working load for angled engagement is documented for the metric SKU.
No. After 6 mm the published entries are 8 and 10 mm. A seven- or nine-millimeter requirement is not filled merely because it falls between the endpoints.
LX-130H-MM uses S2 alloy steel with manganese phosphate coating. No chemical analysis or numeric hardness is specified for an individual key.
It supplies metric hex profiles, not star profiles. Check the bicycle screw recess; a required T-size calls for the appropriate Torx key rather than this metric hex group.
LX-130H-MM offers 13 millimeter sizes from 1.27 through 10 mm. The 13-key LX-130H-IN is SAE, from 0.05 through 3/8 inch; the recess specification decides which set to use.
The metric group comes in one MM-marked holder with a retail box. A tray containing three groups is not confirmed as included with this standalone SKU.
The combined LX-132 lists one 13-key SAE group and one 13-key metric group, whereas LX-130H-MM supplies the metric group alone. Check both lists against the work you need.
The keys have long arms, but no per-size length chart is specified. Ask for the dimension of the particular millimeter key if access depends on its length.
Individual pieces are not sold separately. Choose a complete set that includes the required metric size; do not rely on international shipment of a single replacement key.
Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration. Commercial use is covered for 12 months and cannot be extended; industrial use is not covered. Coverage is for defects in material and workmanship, excluding normal wear and tear, misuse, modification and non-original parts. Loss of a key is not covered.
Compare the package with the listed sizes and contact Lexivon with a description and photos of the mismatch. Do not treat a different size as a substitute.
Stop using the damaged key and contact Lexivon for assessment. No approved home repair procedure is specified.
Stop and check the exact size, profile and condition of the key and recess. Do not keep applying force to an uncertain fit.
Return each key to its matching marked location in a marked folding holder. Check the size marking before returning the key.
Warranty covers defects in material and workmanship, and normal wear and tear is excluded. Ask Lexivon to assess a suspected defect rather than assuming wear qualifies.
No. Commercial use has 12 months of coverage and cannot be extended; industrial use is excluded. Material grade does not change those policy terms.
Download the documents for LX-130H-MM. Browse all manuals
