Magnetic Retention
Ten Inches For Recessed Plug Access
The 10-inch assembly reaches farther than LX-121's 6-inch version. Select it when the plug well and overhead clearance suit that length, and confirm the 5/8-inch hex seats fully.

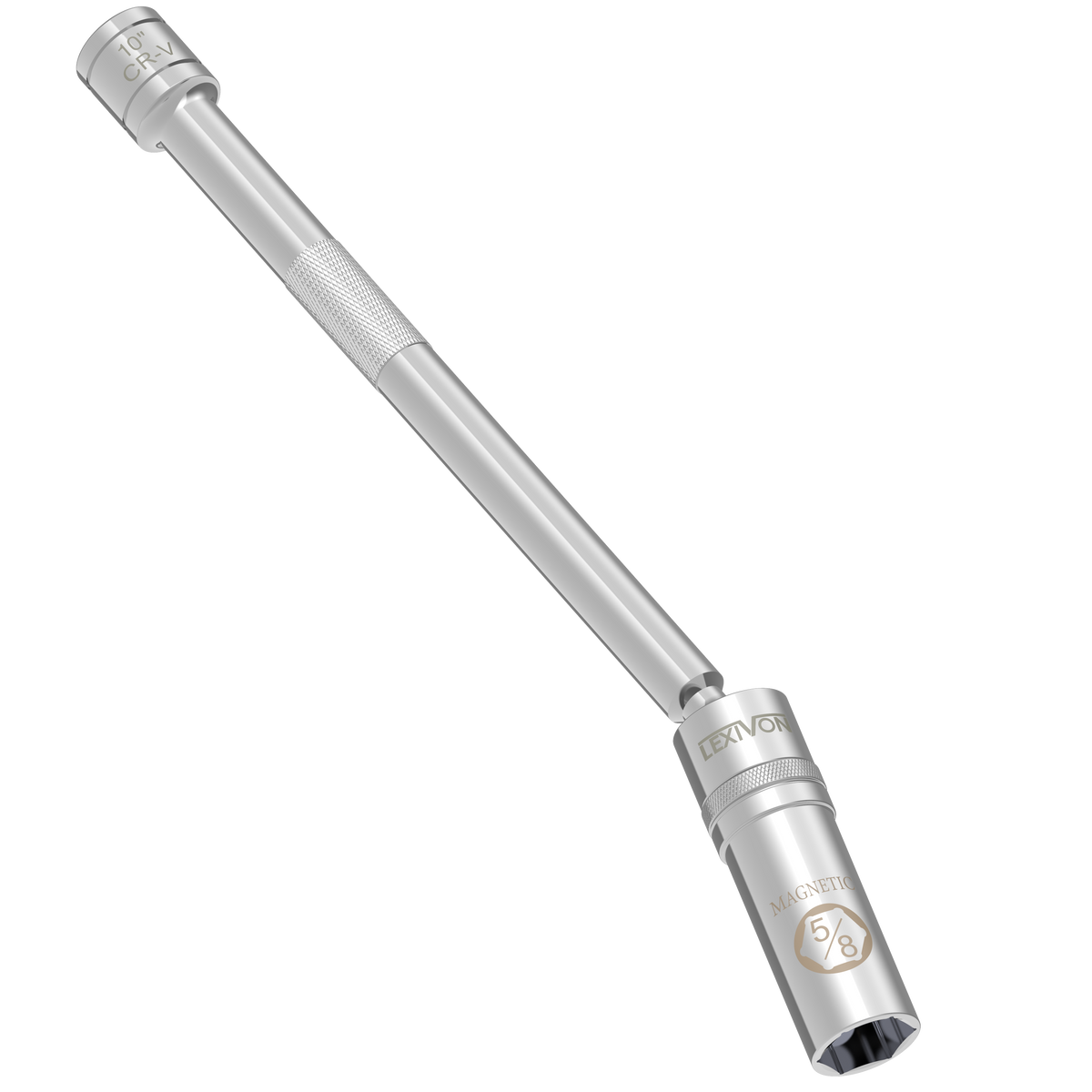

5/8" Swivel Magnetic Spark Plug Socket, 3/8" Drive x 10" Total Length | Enhanced Magnetic Design With Thin Wall Socket, Cr-v Steel (LX-122)
Sale price
$23.97
Regular price
$25.97
Overview
With 10 inches of total reach, the LX-122 combines a 5/8-inch magnetic spark plug socket and swivel shaft for recessed plug access. It takes a 3/8-inch drive hand tool; check that the longer assembly clears the space above and around the well.
Key Advantages
Swivel Access
Position The Socket In Tight Spaces
The swivel joint and 10-inch overall reach help position the socket around confined access. Check clearance through the full path before turning.
In The Box
One Socket With Attached Reach
One 10-inch swivel magnetic spark plug socket is shown. It connects to a 3/8-inch drive hand tool supplied separately; spark plugs and a ratchet are not listed contents.
Will it reach your spark plugs?
Check plug hex size, plug-well clearance and working length. Socket opening, square drive and total length describe different dimensions.
| Plug or tool | Works | What to check |
|---|---|---|
| 5/8-inch hex spark plugs | With sufficient clearance | Check engagement depth and clearance along the entire socket and shaft. |
| 3/8-inch square-drive hand tools | Direct drive match | Use the correct fastening procedure and tool for the spark plug. |
| 1/2-inch drive ratchets | No direct drive match | Socket has a 3/8-inch drive; do not confuse it with the 5/8-inch plug opening. |
| 14 mm or 13/16-inch plug hex | No matching opening | Choose a socket with the specified opening instead. |
| Narrow or obstructed plug wells | Application dependent | Check socket outer clearance and the 10-inch total length; thin-wall marketing is not a universal fit guarantee. |
| Power impact tools | Not established | For manual torque tools; no impact rating is specified. |
Tech Specs
- Spark plug opening
- 5/8 inch
- Square drive
- 3/8 inch
- Total length
- 10 inches
- Opening profile
- 6-point
- Retention
- Magnetic core
- Joint
- 360-degree swivel action claim

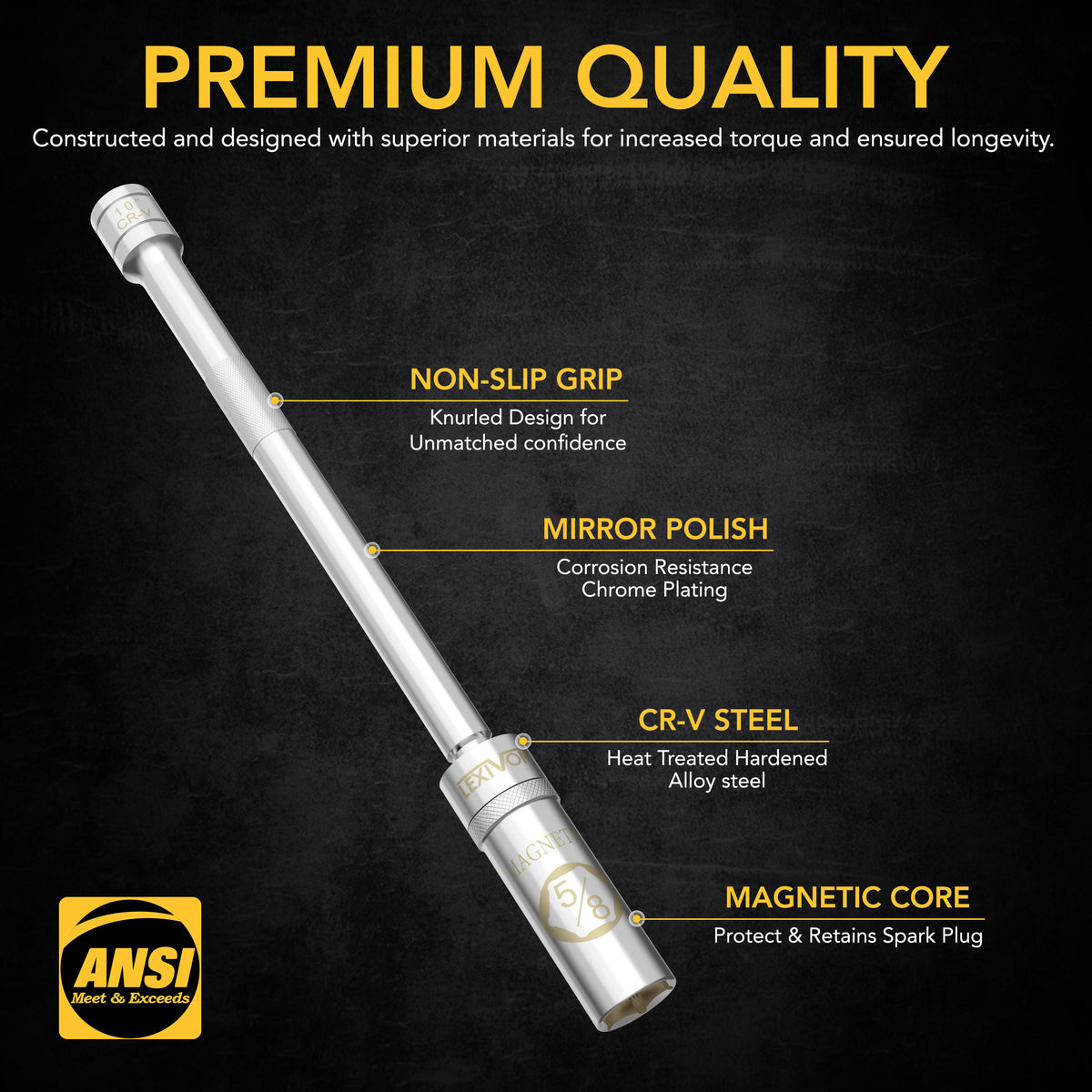

- Material
- Heat-treated chrome vanadium alloy steel
- Finish
- Polished chrome plating
- Grip
- Knurled shaft and socket
- Country of origin
- Taiwan
- Included tool
- One 10-inch swivel magnetic spark plug socket
- Warranty
- Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration.
Questions
What does LX-122's 10-inch length help me reach?
The complete tool is 10 inches long, providing more overall reach than the 6-inch LX-121. Check that it reaches the plug hex while leaving space above the well for the ratchet.
Could the 10-inch assembly be too long for my engine bay?
Yes, working clearance can favor a shorter tool even where the plug is recessed. Buyers report choosing a shorter socket for an obstructed location; check room above and beside the plug well.
Can I choose this socket by vehicle model alone?
Match the installed plug hex to the fixed 5/8-inch opening. Check body clearance, engagement and room for the 10-inch assembly; a vehicle name alone cannot confirm fit.
How can I tell whether the 10-inch socket fits a narrow well?
Check the well along the entire socket and shaft path. A thin-wall label alone does not guarantee clearance for your engine.
Does it reach deep plugs without a separate extension?
LX-122 has an attached shaft in its listed 10-inch total assembly. It may provide the needed reach by itself, but the actual plug depth and surrounding parts determine whether your job needs another tool.
Is LX-122 available here as a 13/16-inch opening?
This SKU has a 5/8-inch opening. If the plug requires 13/16 inch, choose a socket with that opening before starting work.
Can a 3/8-inch ratchet drive this long socket?
A 3/8-inch square-drive ratchet matches LX-122's input. The 10-inch length describes reach, while 5/8 inch describes the plug hex, so all three dimensions serve different purposes.

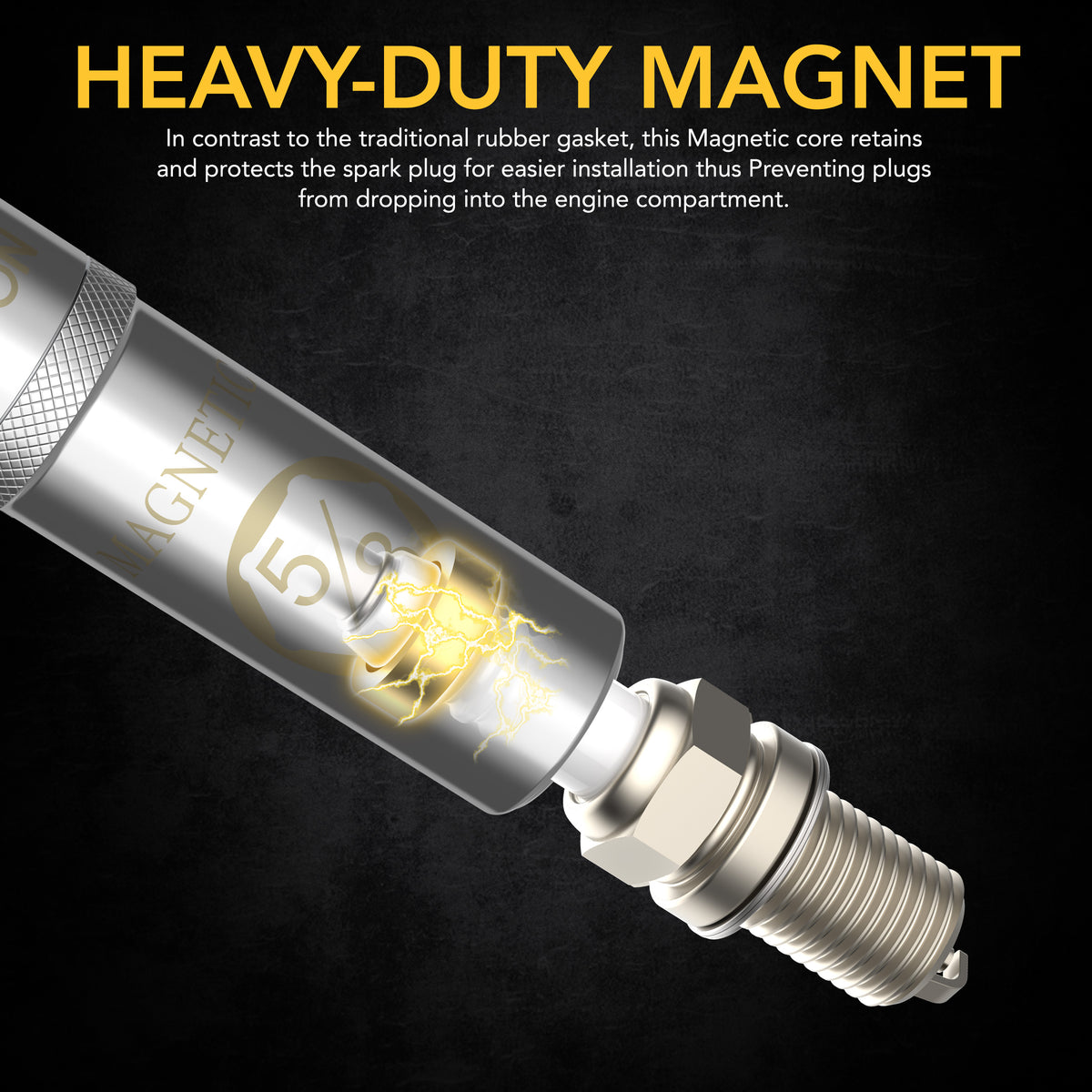

Why choose LX-122's magnetic retention for deep-well work?
The magnetic core can help bring a matching plug up with the socket and position it on insertion. Deep access makes retention useful, but check that your plug holds securely before lowering it.
What does partial hex engagement mean for this long socket?
Stop and confirm seating and compatibility if the socket contacts only part of the plug hex. Extra shaft length does not correct an internal engagement mismatch.

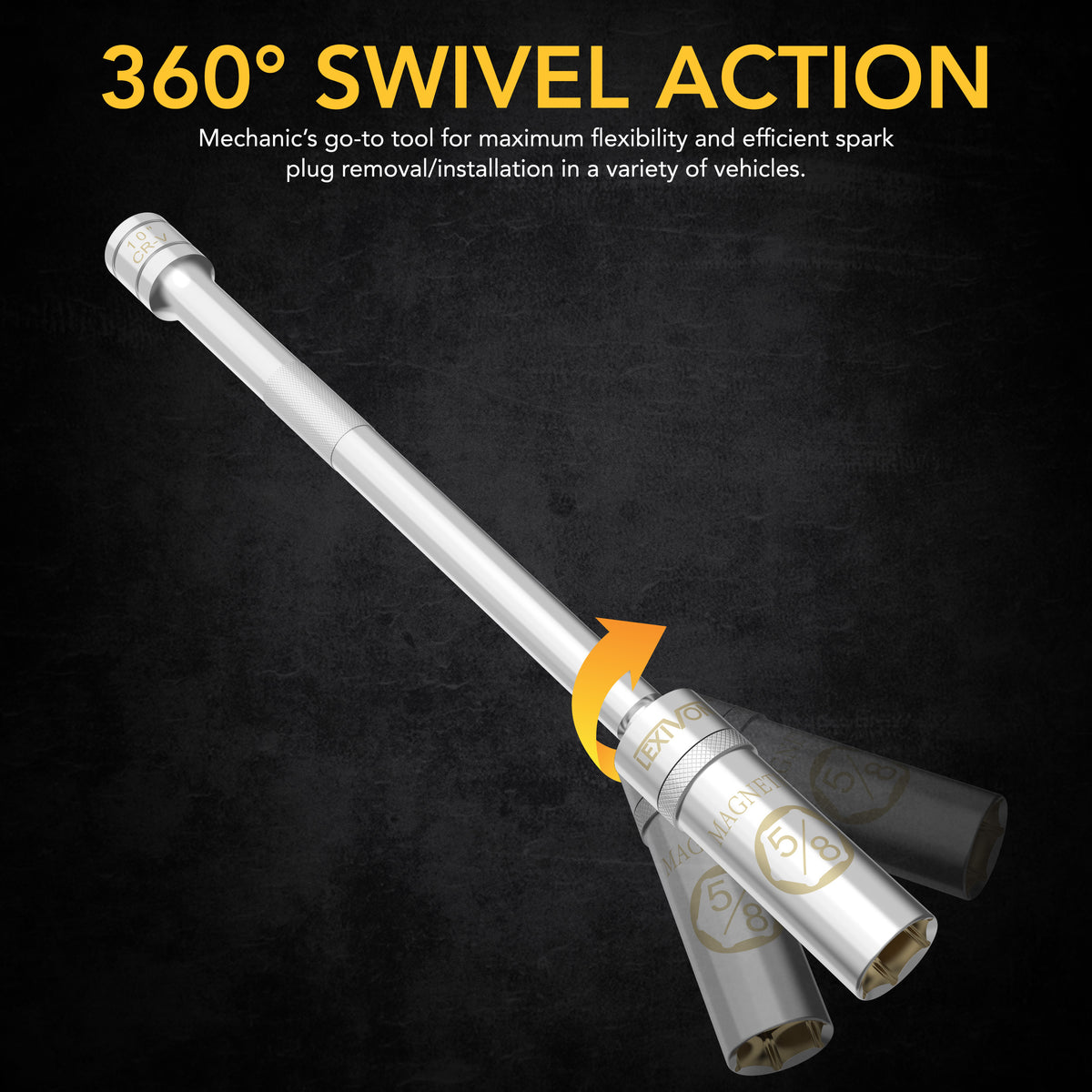

Does the 10-inch swivel operate at any bend angle?
The swivel-action claim is 360 degrees; no maximum pivot angle is specified. Plan the route around obstructions, allowing clearance for the longer tool and joint.
Does the shaft length provide a measured torque reading?
LX-122 is a socket attachment with added reach. It has no documented torque display or setpoint mechanism; obtain measured tightening from the appropriate torque tool and service procedure.
Can I take this assembly apart to use the extension alone?
No approved disassembly procedure is specified. Treat LX-122 as an assembled swivel socket; confirm separable-component capability with Lexivon before relying on it.
Which is the longer 5/8-inch model, LX-121 or LX-122?
LX-122 is listed at 10 inches overall; LX-121 is 6 inches. Their 5/8-inch plug openings and 3/8-inch drives match, so choose between them chiefly by the working reach and clearance.
Does an extra short socket come with LX-122?
The package contains one 10-inch swivel socket. An extra short socket is not a confirmed included item.
Are the alloy and finish specified for LX-122?
LX-122 uses heat-treated chrome vanadium steel with a polished chrome-plated finish. Actual wall dimensions, hardness and numerical torque capacity are not specified.
Can I assume the long socket is rated for an impact wrench?
LX-122 is intended for manual torque tools; no impact rating is specified. Longer reach does not establish suitability for hammering loads.
Could loose material on the magnet matter before purchase?
Inspect the magnetic socket for loose material before placing it over a plug well. Do not start work with debris that could fall into the well.
What registration deadline applies to LX-122 coverage?
Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration. Commercial use is covered for 12 months and cannot be extended; industrial use is not covered. Coverage is for defects in material and workmanship, excluding normal wear and tear, misuse, modification and non-original parts.
Can I use the socket if the magnetic ring is breaking apart?
Stop using the damaged socket and contact Lexivon. Loose fragments near a plug well need attention before work continues; no approved magnet repair is established.
What if the socket covers only part of the plug hex?
Stop and check the plug, socket seating and engagement before applying force. Do not use partial contact as confirmation of a suitable fit.
Should I keep using it if the socket cracks or the joint is damaged?
Stop using the damaged tool and contact Lexivon for assessment. No approved home repair or disassembly procedure is supplied.
Should I inspect the magnetic socket for loose debris before use?
Yes. Check that the tool and magnet are intact and free of loose material before working over the plug well. If material is shedding or a component is damaged, stop and contact Lexivon.
Can I treat a socket that slips as a correct fit?
No. Stop and verify opening size, full seating and the condition of the plug hex and socket. A magnetic grip alone does not establish secure hex engagement.
Does the warranty promise a free replacement for any wear?
No. Warranty covers defects in material and workmanship and excludes normal wear, misuse, modifications and non-original parts. Lexivon decides the resolution after assessment.
