LEXIVON Premium Impact Universal Joint Socket Swivel Set | 3-Piece Ball Spring Design 1/2", 3/8", and 1/4" U-Joint Drive | Cr-Mo Steel - Full Impact Grade (LX-113)

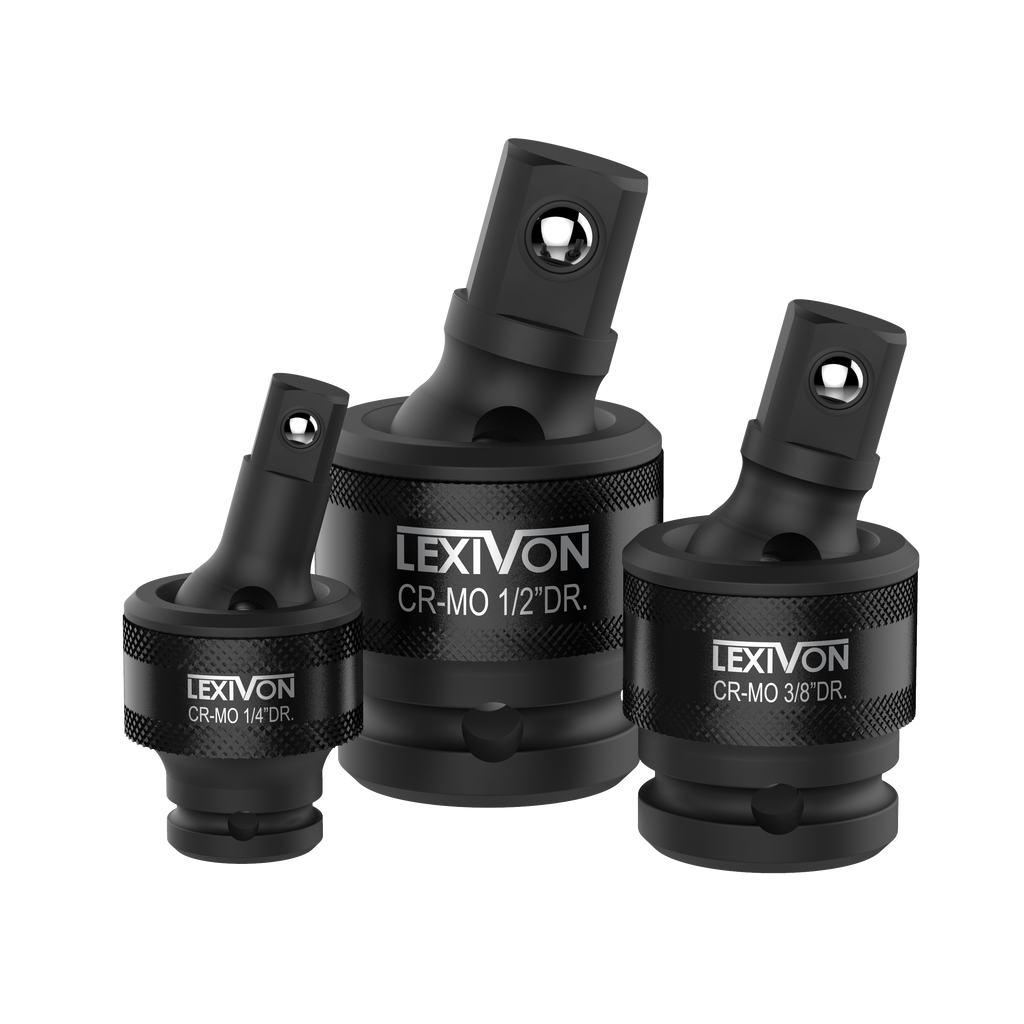

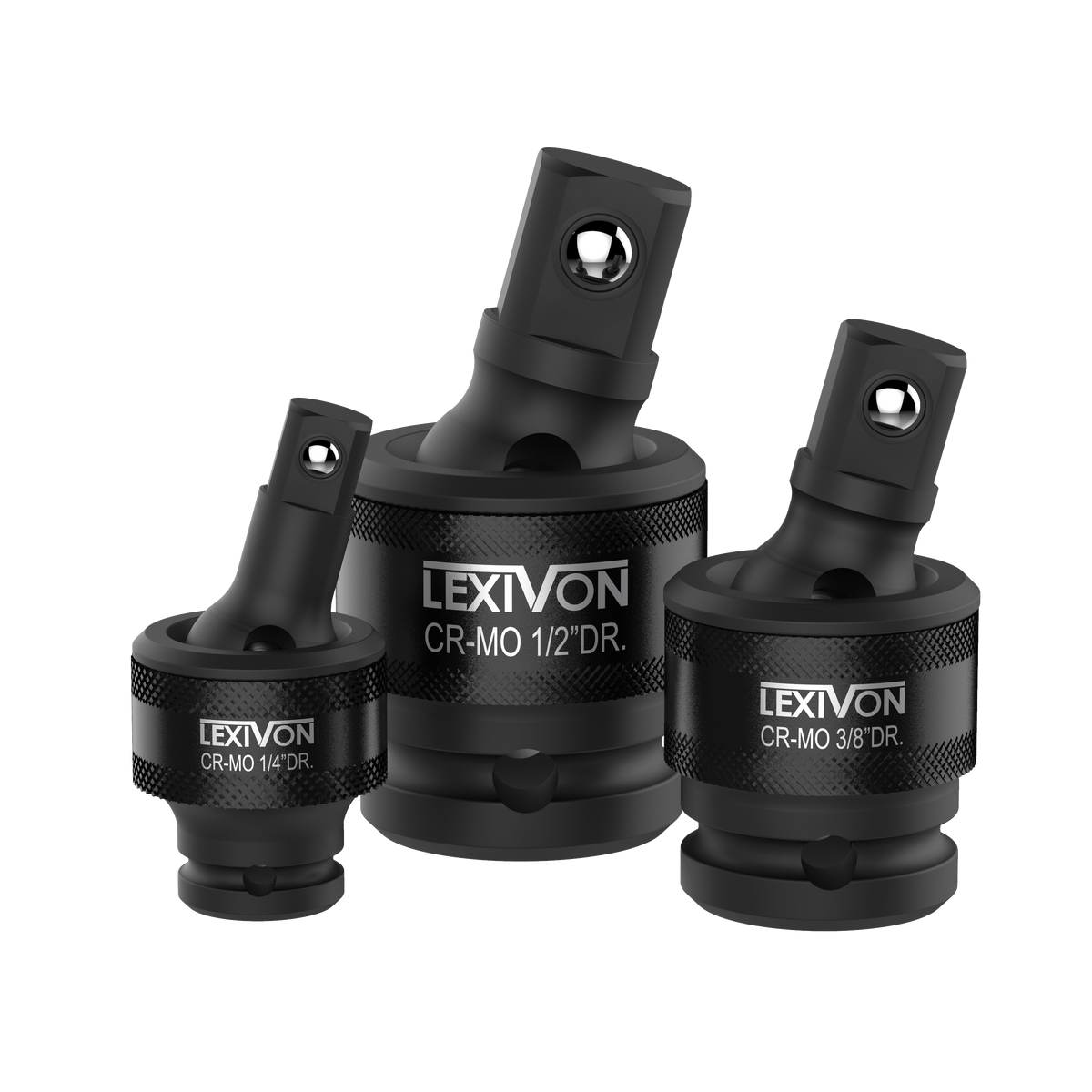

The set supplies 1/4, 3/8 and 1/2-inch square-drive universal joints. Choose the joint whose drive matches both your tool and socket.

Its articulated connection provides angled socket access where a straight connection is restricted. Confirm the joint body and socket can clear the surrounding parts.

The 1/2-inch LX-113 joint has a 35 mm outside body diameter. Check the complete assembly, since body diameter alone does not guarantee access.

The 3/8-inch joint body is 27.8 mm in diameter, and the 1/4-inch body is 21.2 mm. These are body measurements rather than square-drive dimensions.

LX-113 uses square-drive connections. A 1/4-inch square input is different from a 1/4-inch hex bit-holder connection.

It supplies swivel access in matching drive sizes. Drive-size conversion is the job of a suitable increaser or reducer, not the listed LX-113 joints.

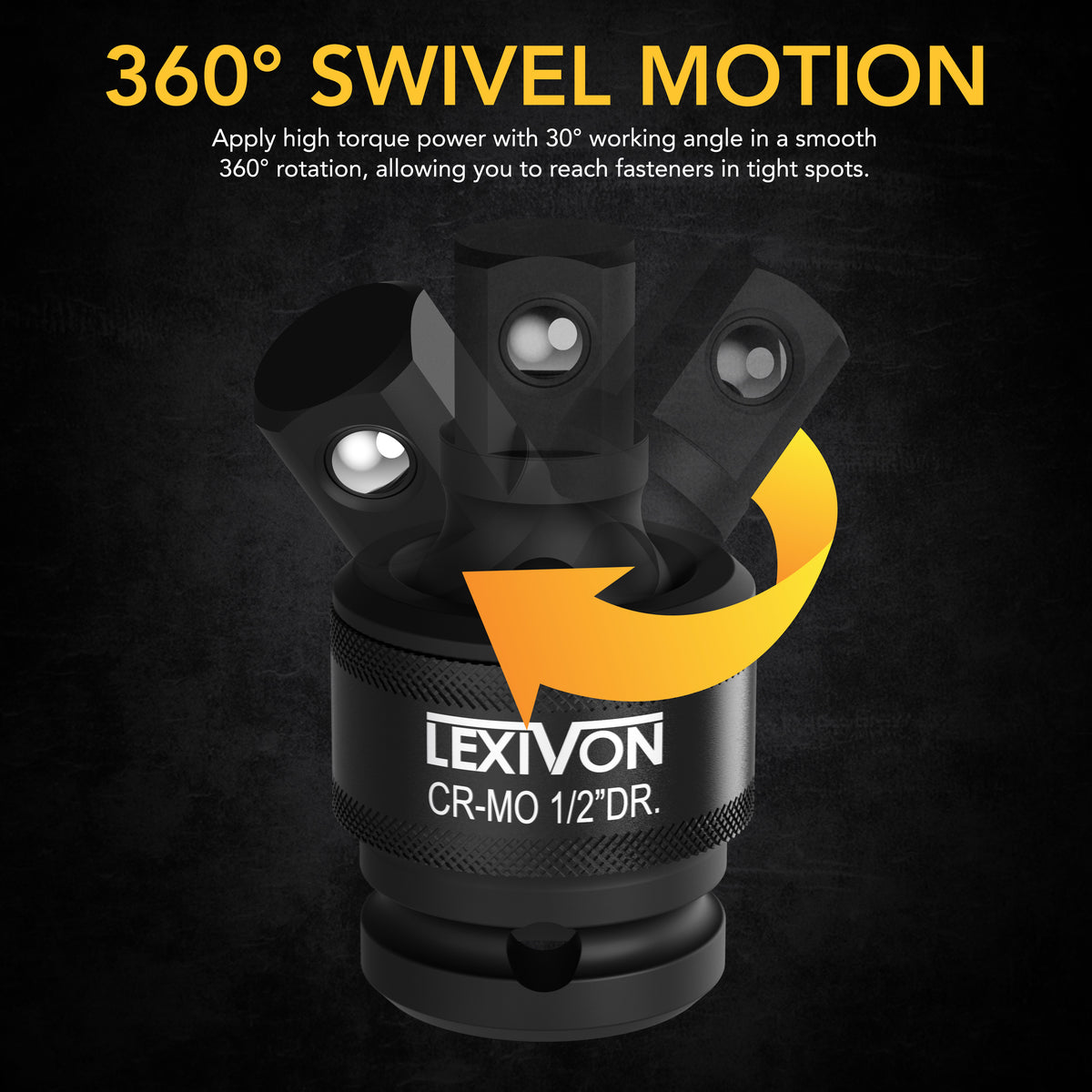

No. Swivel rotation and the working bend angle describe different movements. LX-113 swivels around its axis; the current gallery describes a 30-degree working angle. Check the access path and socket seating before use.

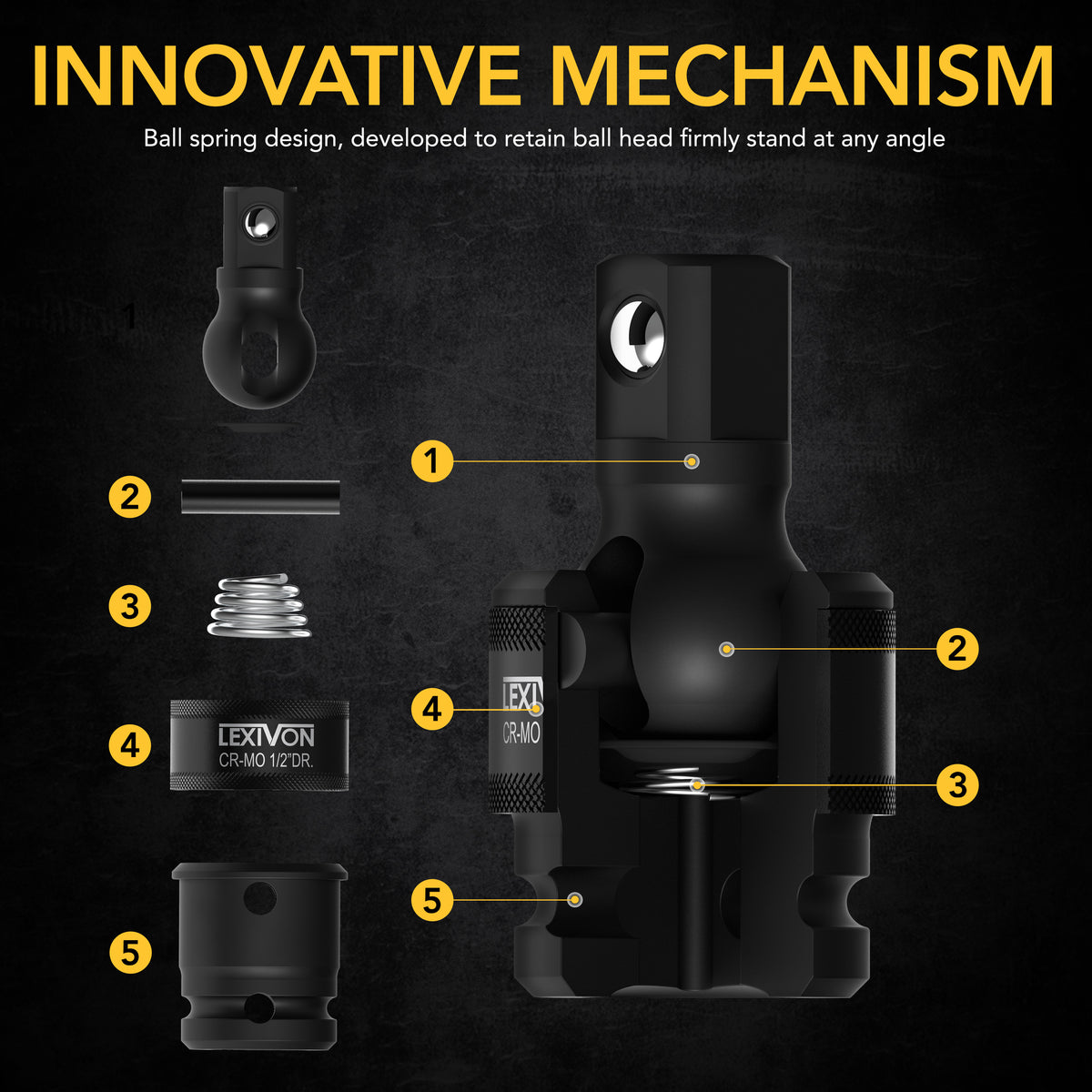

LX-113 specifies a ball-spring design in heat-treated chrome molybdenum alloy steel. The construction is listed as full impact grade.

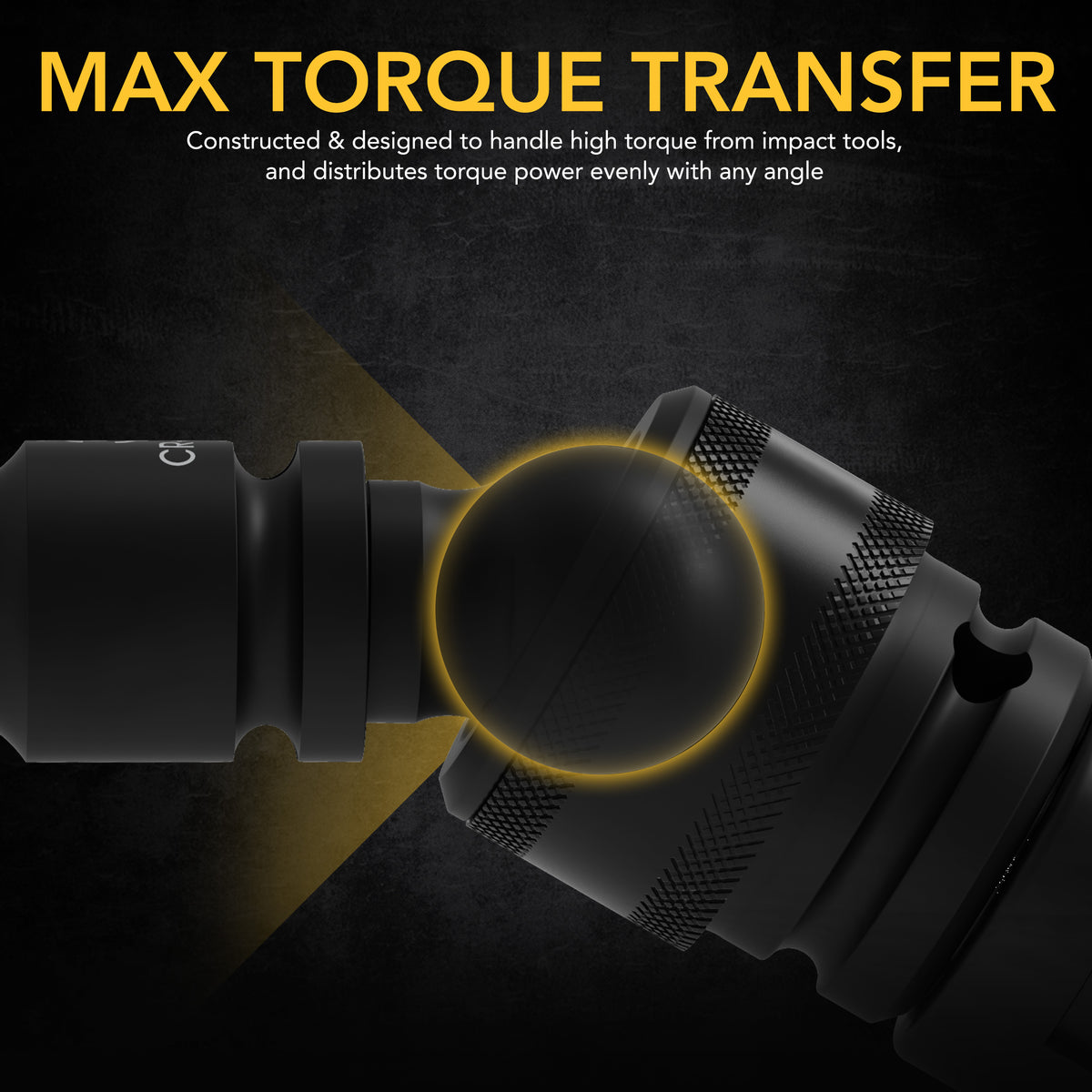

The stated maximum capacities for LX-113 are approximately 5,600 in-lb for 1/2 inch, 2,000 in-lb for 3/8 inch and 500 in-lb for 1/4 inch. Confirm the working angle and impact conditions before using those capacities for a demanding job.

No. Do not assume static strength establishes safe impact capacity. Confirm that the standard ball-spring joint is suitable for your particular tool and load before use.

No. For example, the listed 1/2-inch joint body is 35 mm wide. Check body clearance as well as the square drive and socket opening.

This is the standard LX-113 set. LX-113-S is the separate slim-body model; choose using the dimensions of the model you will actually use.

The 1/2-inch joint body diameter is 28 mm for LX-113-S and 35 mm for LX-113. Both sets cover 1/4, 3/8 and 1/2-inch drives.

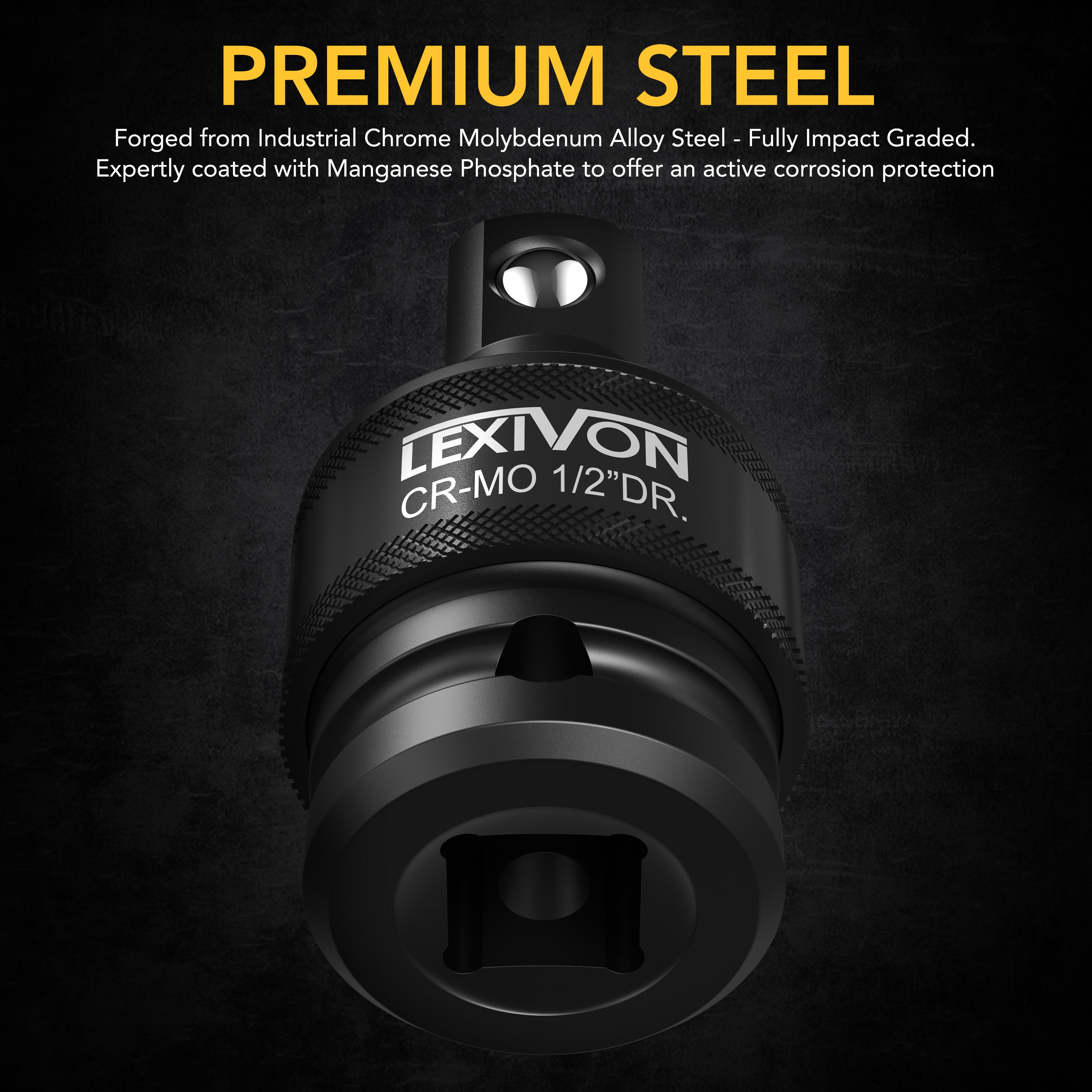

LX-113 lists manganese phosphate treatment. Its corrosion-resistance purpose does not establish lifetime immunity from rust or wear.

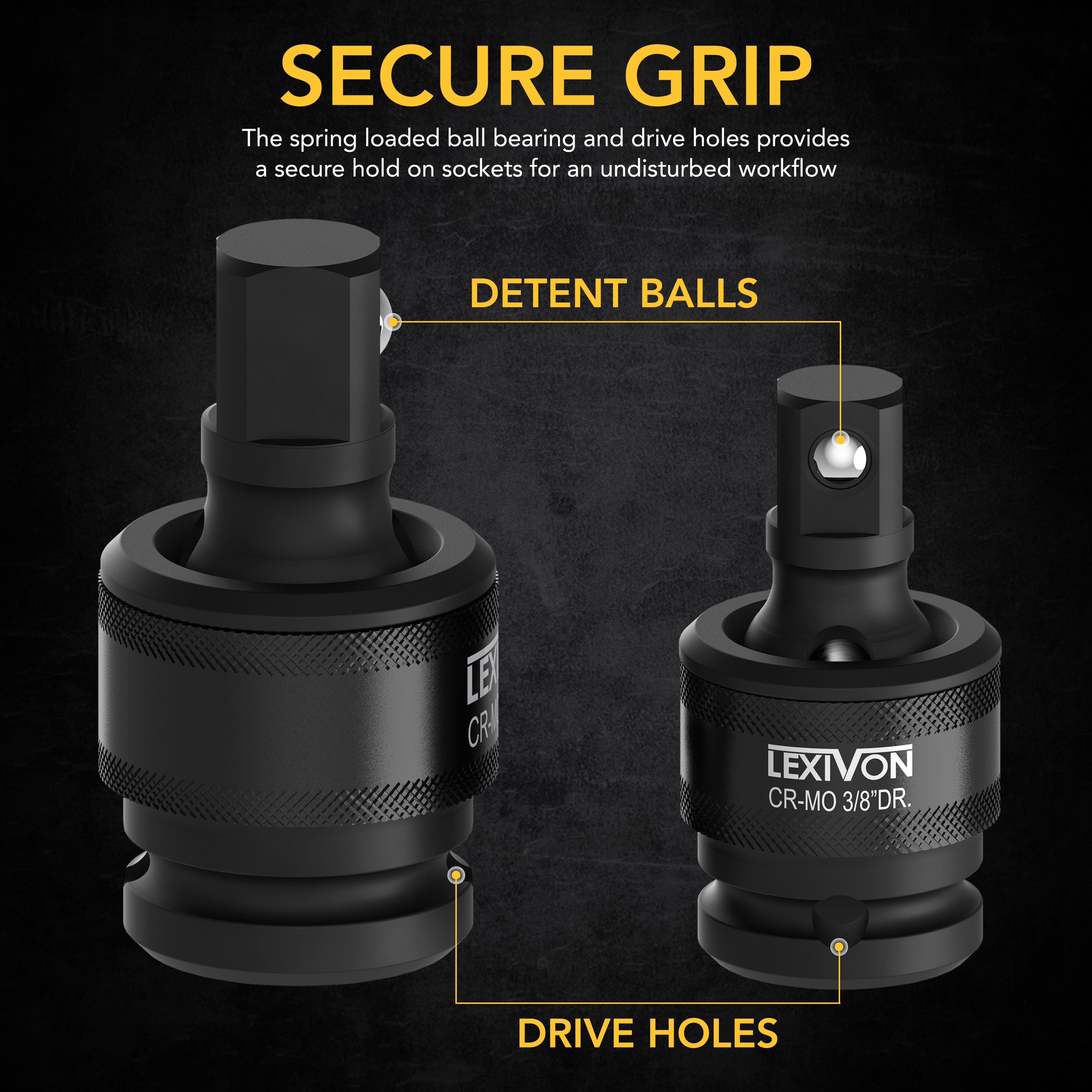

Spring-loaded detent balls retain the socket connections. Confirm actual engagement before use; a damaged retainer cannot be assumed secure.

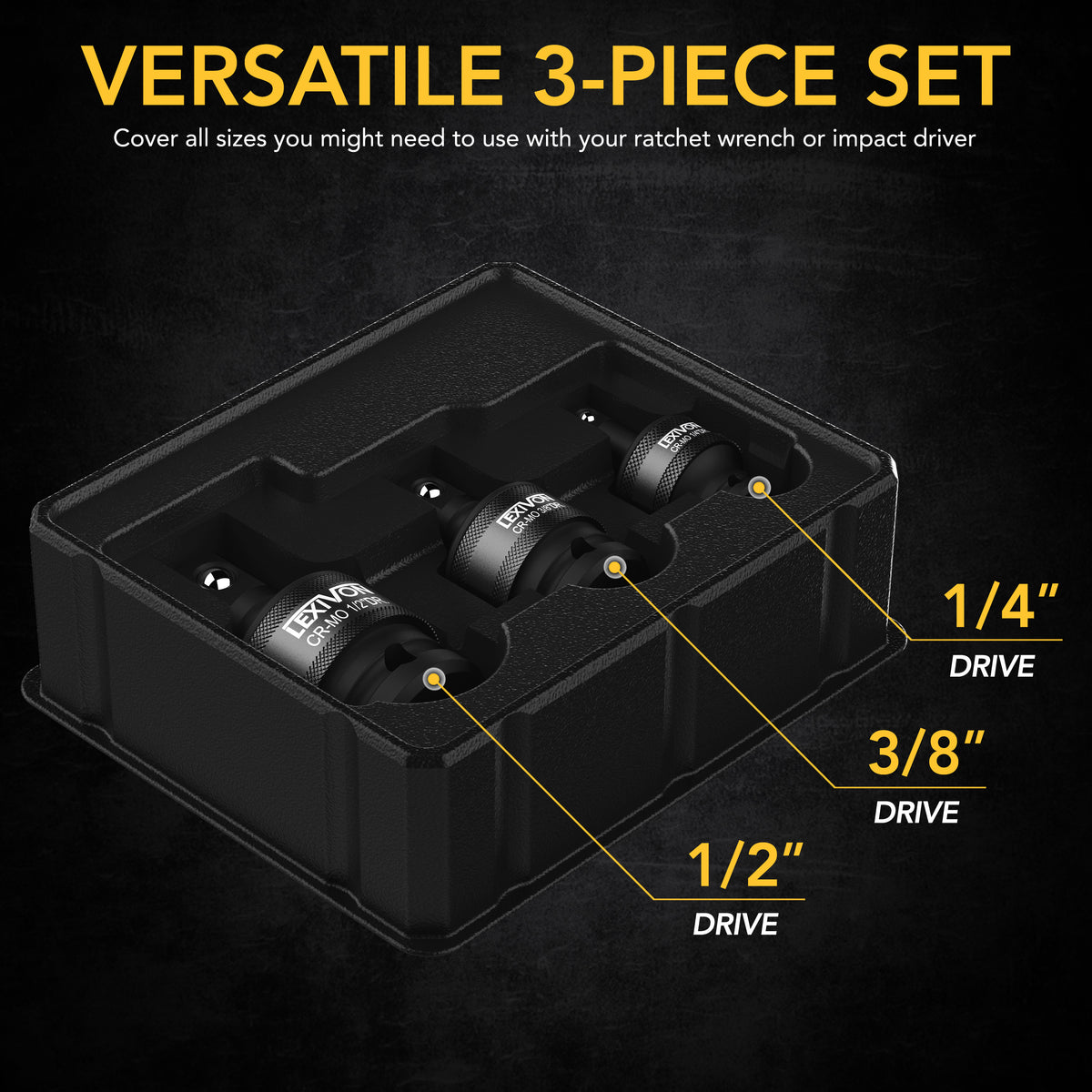

An organizer tray is described for the three joints. A long extension bar is not in the listed working inventory.

No calibrated measuring function is specified. The joint transmits drive through an angle; follow suitable torque-tool instructions where the job requires a measured value.

Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration. Coverage applies to material and workmanship defects.

Match the 1/4, 3/8 or 1/2-inch drive to the tool and socket, then check clearance for the standard joint body at the intended angle.

No. Stop using the joint and contact Lexivon. A detached or loose swivel pin requires support guidance rather than an improvised repair.

Compare the listed standard-body diameter with the actual obstruction. A fitting square drive does not establish clearance; the slim model has separate documented body dimensions.

The standard LX-113 inventory lists three drive sizes. Check whether 1/4, 3/8 or 1/2 inch is absent, then contact the seller or Lexivon about the missing piece.

Commercial use has 12 months coverage and cannot be extended. Industrial use is excluded; lifetime registration does not override those usage terms.

No. Coverage is for material and workmanship defects. Normal wear, misuse, modification and damage from non-original parts are excluded; Lexivon determines the resolution under its policy.
