Eight Openings In Four Flip Sockets
The kit covers 17, 19, 21 and 22 mm, plus 3/4, 13/16, 15/16 and 7/8 inch. Measure the fastener instead of choosing by vehicle name alone.

LX-110 provides eight wheel-nut openings through four 1/2-inch drive flip sockets, including 22 mm and 15/16 inch. The kit adds a nominal 3-inch extension and case; verify actual fastener size and wheel-recess clearance.
The kit covers 17, 19, 21 and 22 mm, plus 3/4, 13/16, 15/16 and 7/8 inch. Measure the fastener instead of choosing by vehicle name alone.

Heat-treated chrome molybdenum alloy steel. Manganese phosphate treatment is listed for corrosion resistance. Confirm the operating load for your application.

Four dual-end sockets covering 17, 19, 21 and 22 mm plus 3/4, 13/16, 15/16 and 7/8 inch, a 3-inch extension and storage case.

Choose by connection size, socket opening, reach and working clearance.
| Job or attachment | Works | What to check |
|---|---|---|
| Listed drive connections | Yes, when sizes match | 1/2-inch square drive. Confirm secure seating. |
| Listed lug-nut openings | Yes, with correct clearance | 17, 19, 21 and 22 mm; 3/4, 13/16, 15/16 and 7/8 inch. Check the fastener and recess. |
| Automotive and maintenance work | Application dependent | Match the socket opening, working space and tool capacity to the fastener. |
| Other drive sizes | No assumed direct fit | Check the input and output drive separately before buying. |
| Unidentified vehicle or tool model | Not a verified fit guarantee | Confirm the required fastener size and actual tool connection. |
| Unspecified high-torque work | Operating limit needs confirmation | Ask Lexivon for the size-specific operating limit before high-load use. |
The kit covers 17, 19, 21 and 22 mm, plus 3/4, 13/16, 15/16 and 7/8 inch. Measure the fastener instead of choosing by vehicle name alone.
Four physical flip sockets carry the eight openings. Turning a socket around selects its other opening; the kit also includes a separate extension.
22 mm is one of the four metric openings. Check that the socket also clears your wheel recess and seats fully on the fastener.
Yes. The inch openings include 15/16 as well as 3/4, 13/16 and 7/8 inch. Use the specified inch opening for the fastener.

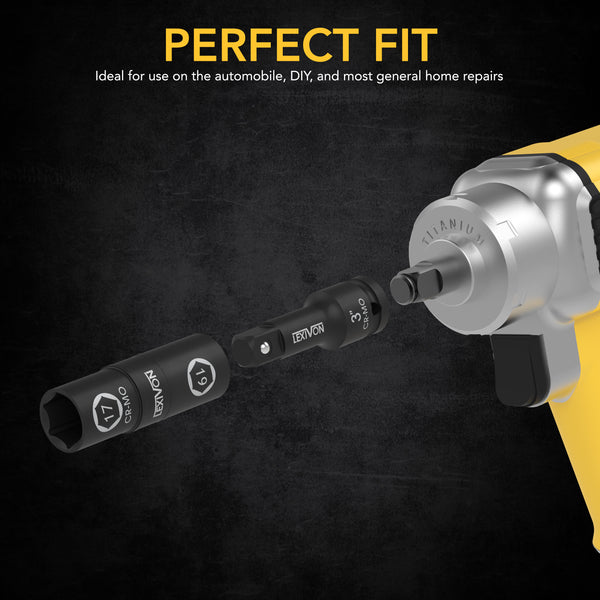

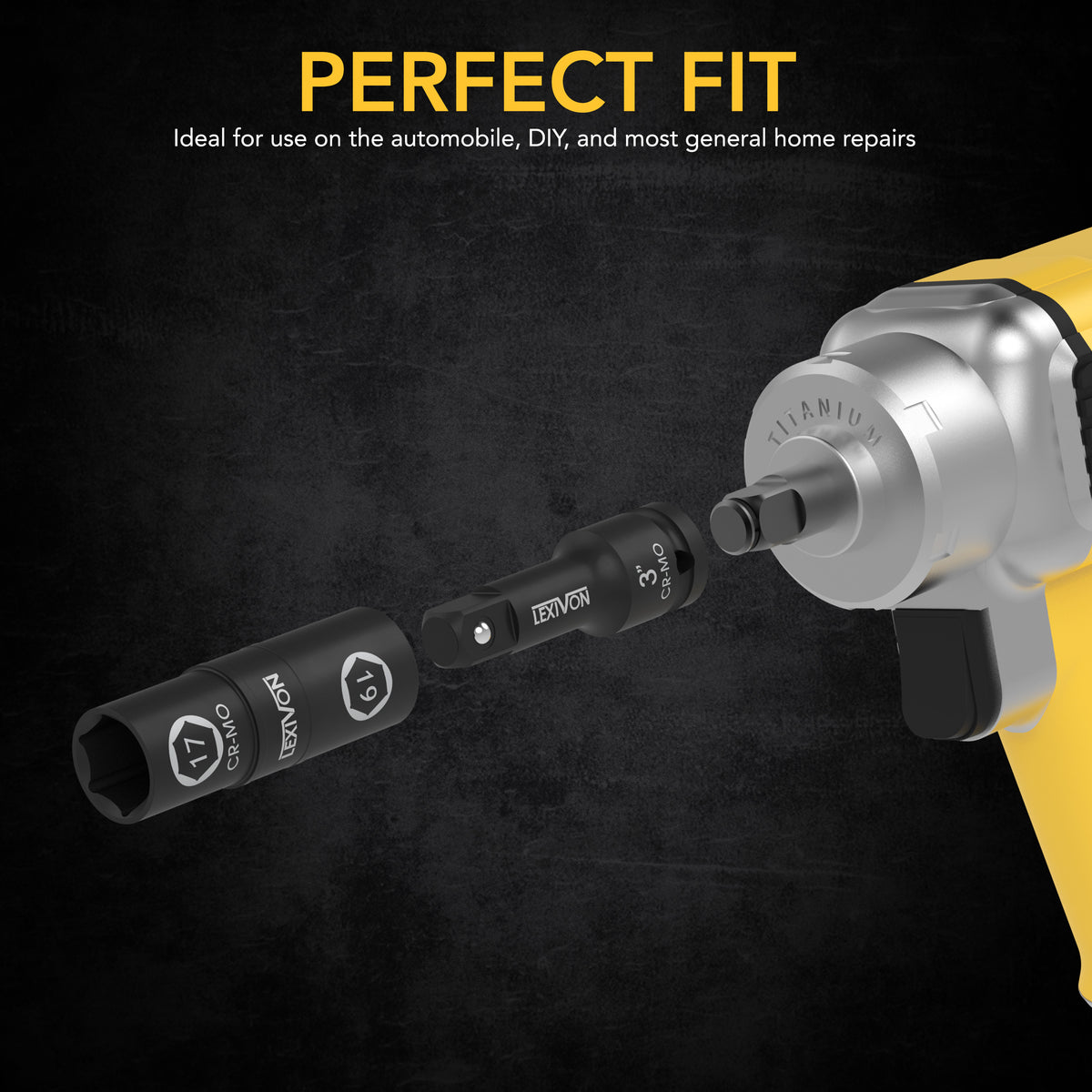

The documented square drive is 1/2 inch, with a nominal 3-inch extension supplied. Confirm the extension input and tool retention fit before use.
No universal vehicle list is verified. LX-110 provides eight specific openings, while wheel recess width, required depth and locking-lug designs remain application requirements.
Expect four dual-end sockets, not eight separate sockets. The kit also includes an extension and a storage case.
LX-110 is full impact grade and uses heat-treated chrome molybdenum alloy steel. Ask Lexivon to confirm the operating limit for your socket, extension and tool setup.
The nominal 3-inch extension connects the tool to the sockets. It is not a ninth fastener-opening size.
A wheel-specific locking key is not documented in LX-110. Its eight ordinary openings do not establish compatibility with a locking-lug pattern.
The sockets have distinct metric and inch openings. Choose the size specified for your fastener and check seating instead of assuming interchangeability.
No size-specific operating load is supplied. Confirm the combination of socket, extension and tool before demanding impact work.
LX-110 adds 22 mm and 15/16 inch to the six openings listed for LX-111. It has four flip sockets instead of three; both use a 1/2-inch drive and 3-inch extension.
The sockets have laser-etched size markings. Check the marking for the end facing the fastener, especially when flipping between inch and metric openings.
Manganese phosphate is listed for LX-110's corrosion resistance. It does not establish permanent immunity to corrosion in every storage condition.
The four sockets and extension come with a fitted case. This is the eight-size kit, rather than the smaller LX-111 kit.
No power tool is listed in LX-110. Supply a compatible tool and follow the vehicle's wheel-service requirements, including its specified tightening value.
LX-110 is marked lifetime: registration within 90 days activates lifetime defects coverage. Without registration, standard coverage lasts 12 months.
Count four flip sockets and the nominal 3-inch extension. Each socket has two openings; eight size markings do not mean eight separate socket bodies.
Stop using that socket and seek Lexivon support. Neither the other opening nor the full-impact-grade label establishes that a cracked body remains safe.
Use a separate socket with the specified opening. Do not force a near-fitting inch or metric end from LX-110 just to use the kit.
Verify the tool is a matching 1/2-inch square drive and inspect the retention arrangement. Do not force the extension; contact Lexivon if the documented drive match will not seat.
Commercial use has 12 months coverage and cannot be extended. Industrial use is excluded; lifetime registration does not override those usage terms.
No. Coverage is for material and workmanship defects. Normal wear, misuse, modification and damage from non-original parts are excluded; Lexivon determines the resolution under its policy.
