6-Piece Impact Grade Socket Adapter Set - 3" & 6" Extension Bit With Holder | 1/4", 3/8", and 1/2" Drive, Adapt Your Power Drill To High Torque Impact Wrench (LX-105)

6-Piece Impact Grade Socket Adapter Set - 3" & 6" Extension Bit With Holder | 1/4", 3/8", and 1/2" Drive, Adapt Your Power Drill To High Torque Impact Wrench (LX-105)

Sale price  $21.97 Regular price  $24.97
Skip to product information
6-Piece Impact Grade Socket Adapter Set - 3" & 6" Extension Bit With Holder | 1/4", 3/8", and 1/2" Drive, Adapt Your Power Drill To High Torque Impact Wrench (LX-105)

LX-105

6-Piece Impact Grade Socket Adapter Set - 3" & 6" Extension Bit With Holder | 1/4", 3/8", and 1/2" Drive, Adapt Your Power Drill To High Torque Impact Wrench (LX-105)

Sale price  $21.97 Regular price  $24.97
UPC
840025245730

Overview

LX-105 supplies six hex-shank socket adapters in two nominal lengths: 3 and 6 inches. Each length group covers 1/4, 3/8 and 1/2-inch square drives, so you can choose reach while keeping the socket-drive size you need.

Key Advantages

Fit The Connection

Choose Three Or Six Inches

It supplies nominal 3 and 6-inch adapters. Each length group includes 1/4, 3/8 and 1/2-inch square outputs, making six adapters total.

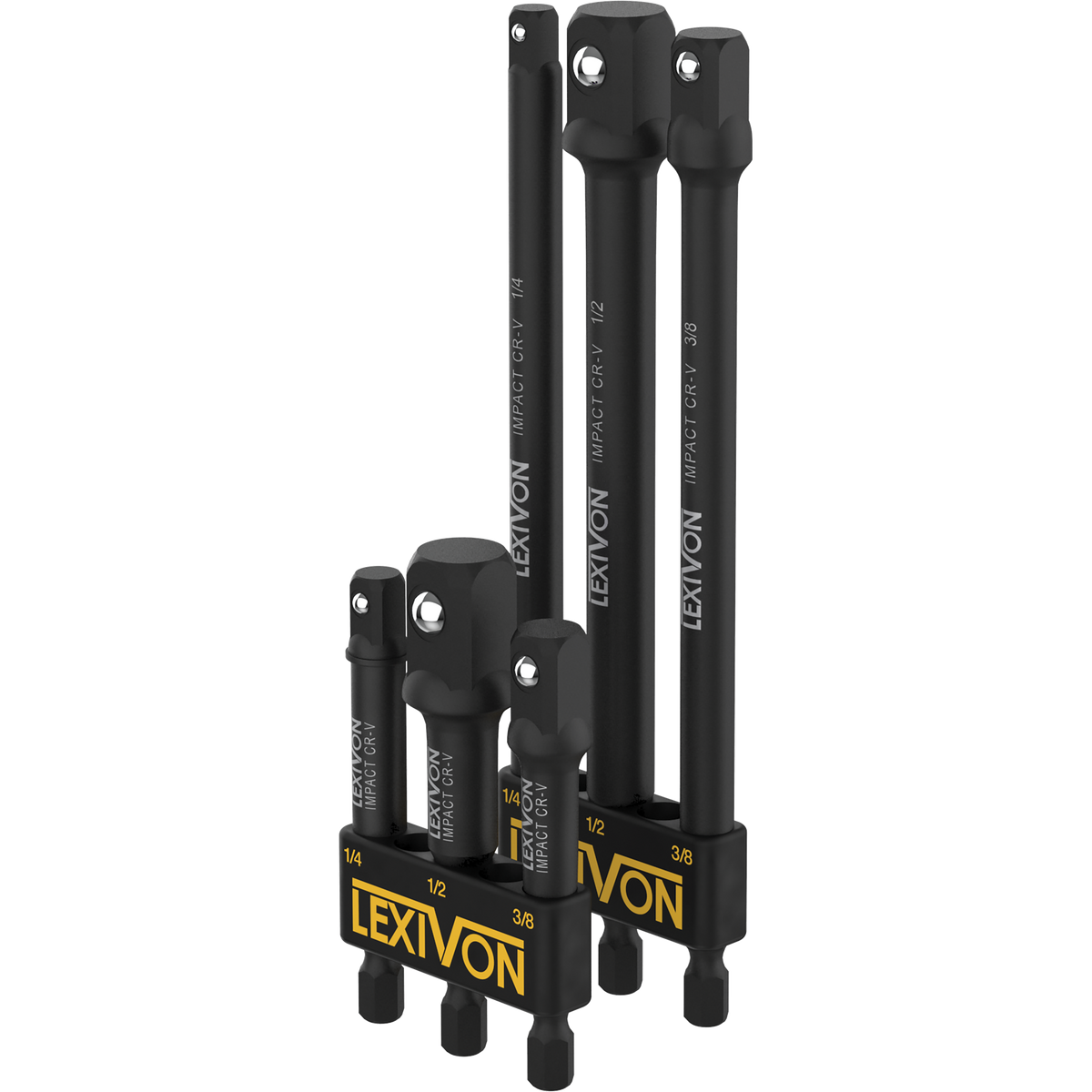

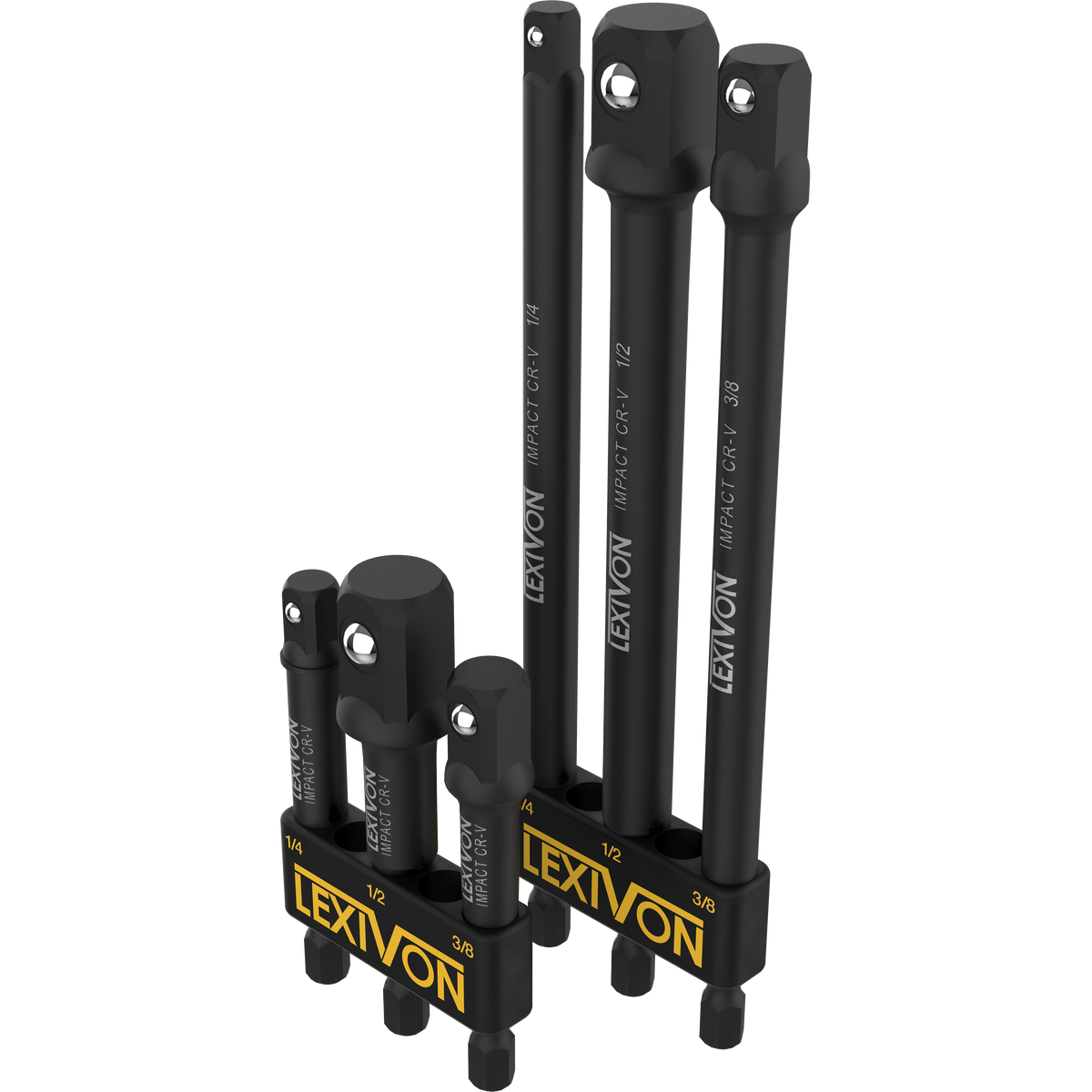

LX-105 short and long socket adapter groups in two holders
Construction

Impact Grade Steel And Coating

Heat-treated chrome vanadium alloy steel. Black phosphate treatment is listed for corrosion resistance. Keep adapter use within 650 in-lb (about 54 ft-lb).

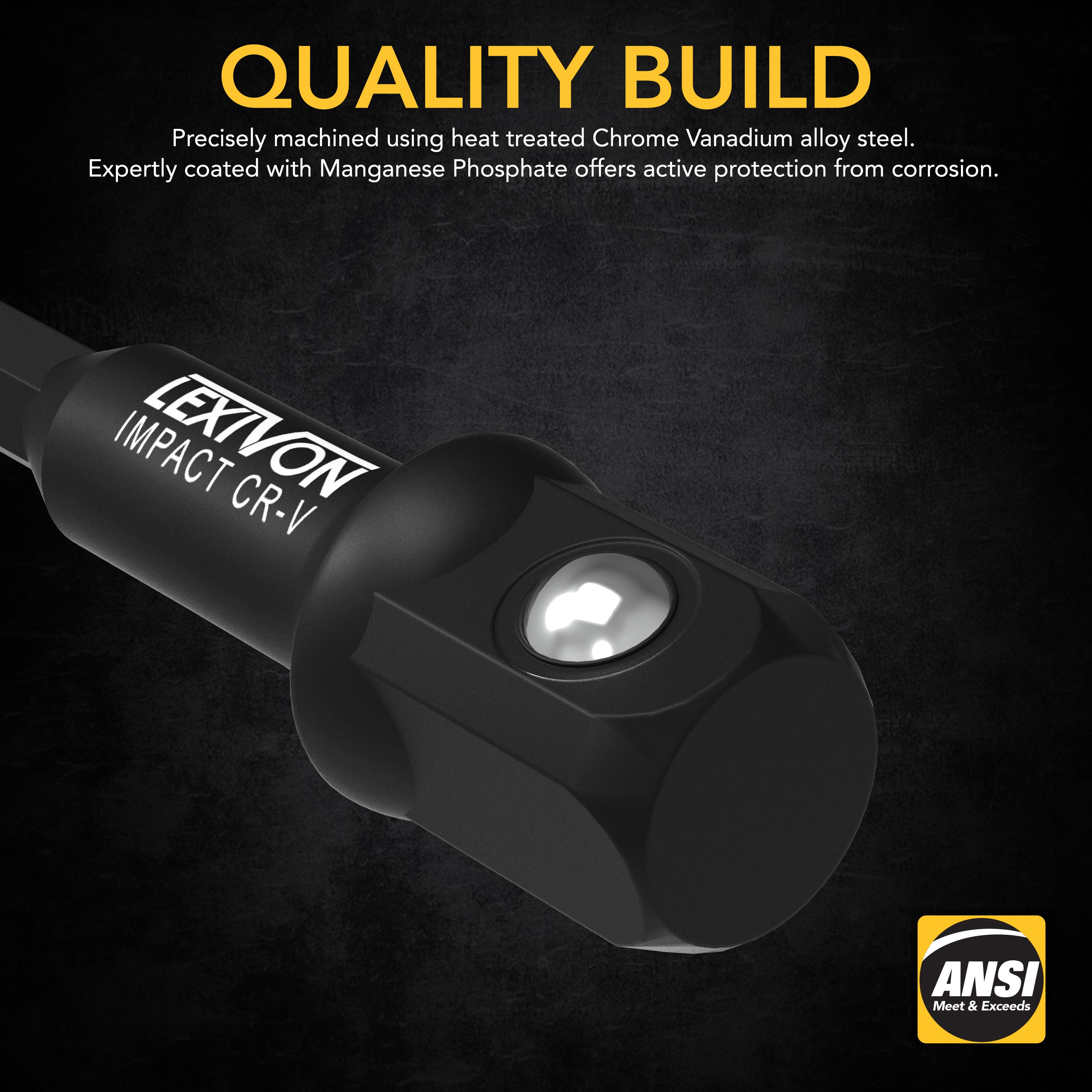

LX-105 black impact adapter drive end and detent ball
In The Box

Check The Supplied Kit

Six adapters: 1/4, 3/8 and 1/2-inch square drives in each of the 3 and 6-inch lengths, with organizer holders.

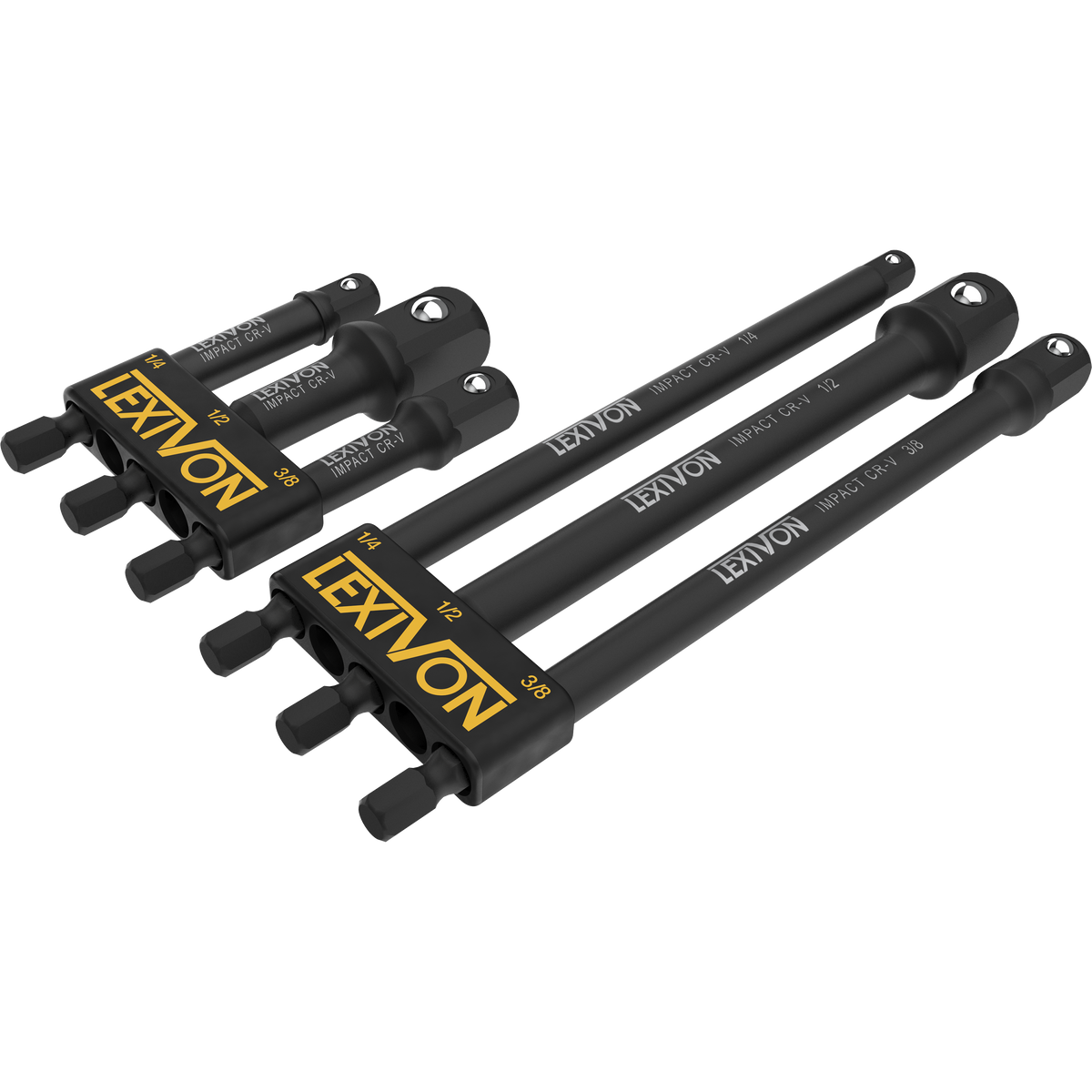

LX-105 supplied adapters and organizer

Will it fit the job?

Choose by connection size, socket opening, reach and working clearance.

Job or attachmentWorksWhat to check
1/4-inch hex holders and standard drill chucksYes, when the shank fitsUse the 1/4-inch hex shank, then match the square output to the socket.
Automotive and maintenance workApplication dependentMatch the socket opening, working space and tool capacity to the fastener.
Other drive sizesNo assumed direct fitCheck the input and output drive separately before buying.
Unidentified vehicle or tool modelNot a verified fit guaranteeConfirm the required fastener size and actual tool connection.
Unspecified high-torque workWithin the recommended adapter torqueDo not exceed 650 in-lb (about 54 ft-lb); check actual tool output and socket fit.

Tech Specs

Drive connection
1/4-inch hex shank; 1/4, 3/8 and 1/2-inch square outputs
Nominal adapter length
3 and 6 inches; three adapters per length
Material
Heat-treated chrome vanadium alloy steel
Finish
Black phosphate
Included items
Six adapters: 1/4, 3/8 and 1/2-inch square drives in each of the 3 and 6-inch lengths, with organizer holders.
Country of origin
Taiwan
Impact designation
Impact grade; recommended adapter use torque 650 in-lb
Warranty
Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration.
Commercial and industrial coverage
Commercial: 12 months, cannot be extended; industrial: not covered
Recommended adapter use torque
650 in-lb (about 54 ft-lb); no higher limit established by output size

Questions

Which lengths are combined in LX-105?

It supplies nominal 3 and 6-inch adapters. Each length group includes 1/4, 3/8 and 1/2-inch square outputs, making six adapters total.

Do I get two adapters for each socket-drive size?

Yes. For each square output, LX-105 provides a short 3-inch adapter and a longer 6-inch adapter, both with a 1/4-inch hex input.

Can I choose reach without changing socket drive?

Use the short or long adapter with the same square-output marking. The 3 and 6-inch groups both cover the three listed socket drives.

Will the set connect to a cordless screwdriver hex holder?

Check for a compatible 1/4-inch hex holder. The socket connection remains square, so match the selected adapter output to the drive recess in your socket.

Are there six different square-drive sizes?

There are three drive sizes, repeated across two lengths. The six-piece count is not six distinct square-drive dimensions.

How is the socket held on the short or long piece?

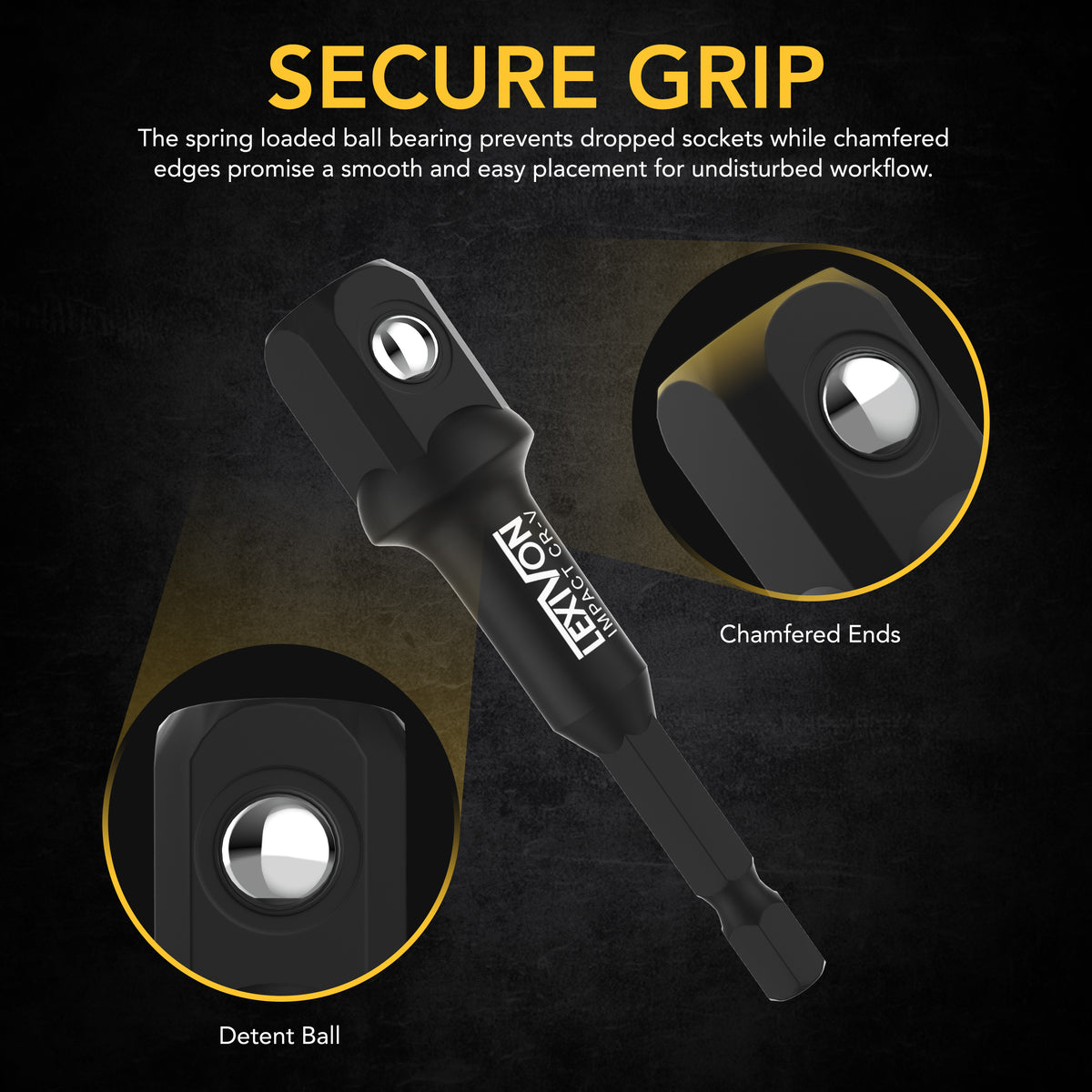

A spring-loaded detent ball retains the socket. Verify engagement on the selected 3 or 6-inch piece before use; neither length is guaranteed drop-proof.

Why choose LX-105 instead of LX-101?

LX-101 gives three adapters at nominal 3 inches. LX-105 adds another three at 6 inches, retaining 1/4, 3/8 and 1/2-inch square outputs at each length.

Can I split the two length groups between toolboxes?

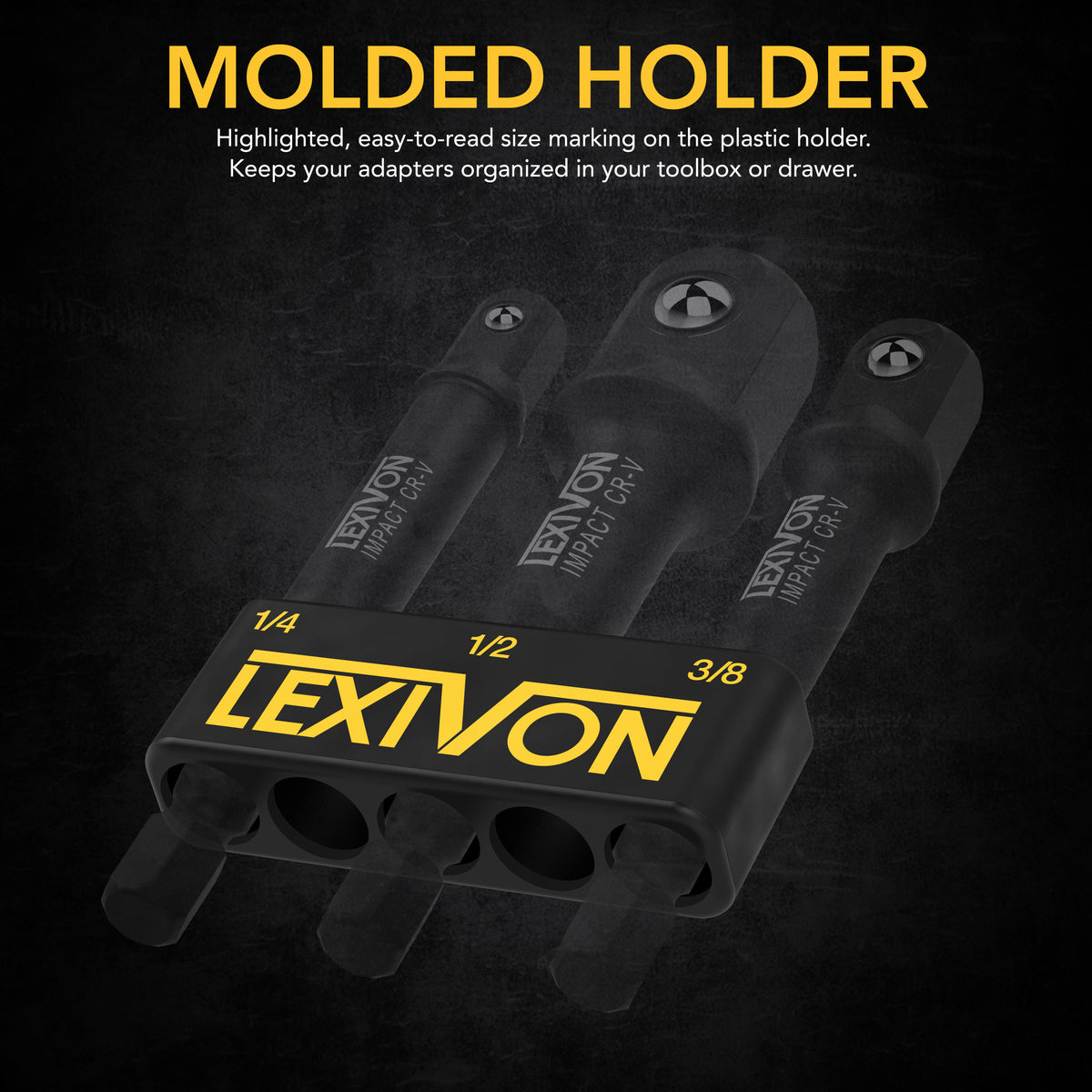

The kit image shows separate holders for the 3 and 6-inch groups. Each group carries all three output drive sizes, so check its contents before separating it.

Manuals & downloads

Download the documents for LX-105. Browse all manuals
