LX-104 Impact socket adapter and magnetic bit holder set

Name: Impact Socket Adapter & Magnetic Bit Holder Set | 4 Pieces of 1/4-Inch Hex Shank Extension to 1/4", 3/8", and 1/2" Drive | Includes Organizer Rack (LX-104)
Brand: LEXIVON
SKU: LX-104
Price: 14.97 USD
Availability: InStock

Job or attachment	Works	What to check
1/4-inch hex holders and standard drill chucks	Yes, when the shank fits	Use the 1/4-inch hex shank, then match the square output to the socket.
Automotive and maintenance work	Application dependent	Match the socket opening, working space and tool capacity to the fastener.
Other drive sizes	No assumed direct fit	Check the input and output drive separately before buying.
Unidentified vehicle or tool model	Not a verified fit guarantee	Confirm the required fastener size and actual tool connection.
Unspecified high-torque work	Operating limit needs confirmation	Ask Lexivon for the size-specific operating limit before high-load use.

What is the fourth piece in LX-104?

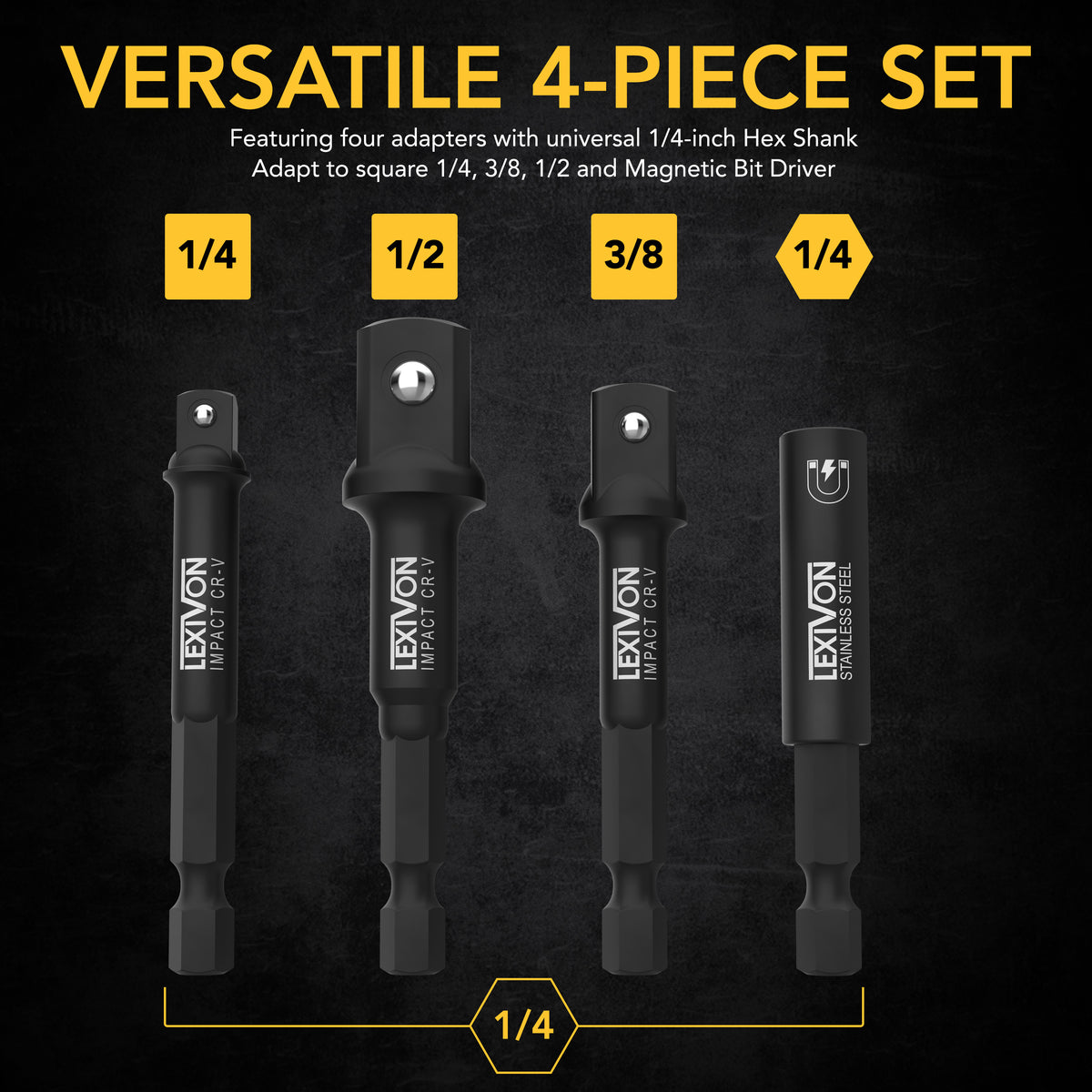

The fourth functional piece is a magnetic bit holder. The other three are nominal 3-inch socket adapters with 1/4, 3/8 and 1/2-inch square outputs.

Does the magnetic holder replace the socket adapters?

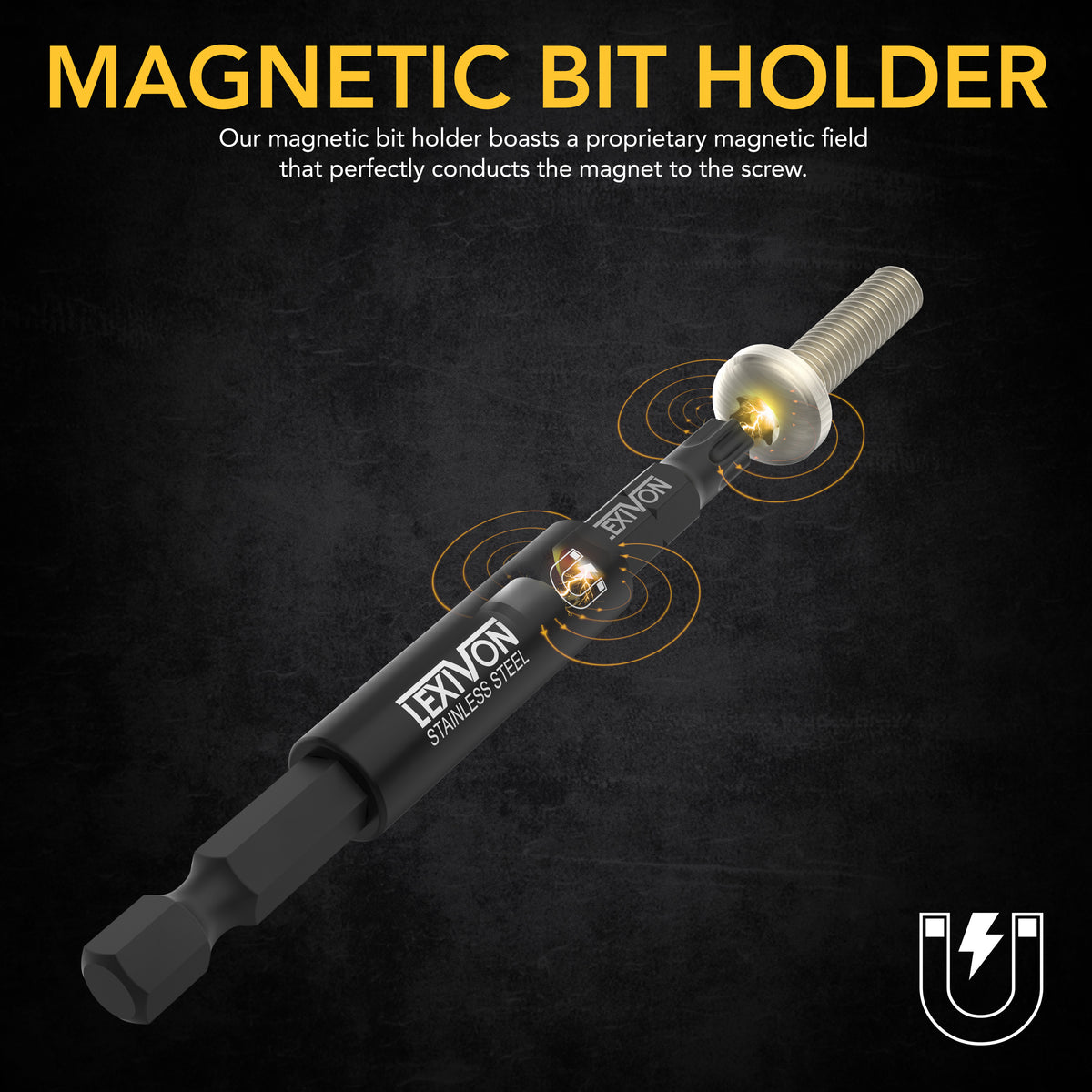

They serve different connections: the magnetic holder takes compatible screwdriver bits, while the three adapters connect the hex tool input to square-drive sockets.

What driver connection do the socket adapters use?

LX-104 documents a 1/4-inch hex shank for compatible quick-change systems and standard drill chucks. Check actual seating in your holder.

Is the organizer rack itself a working bit holder?

The rack stores the kit. The separate magnetic bit holder is the tool accessory; do not confuse storage holes with a powered-drive connection.

Will its 1/2-inch square output fit my socket?

It fits a matching 1/2-inch socket-drive connection when seated correctly. The socket's fastener opening must separately match the nut or bolt.

Is the kit a direct square-input extension set?

No. The documented socket adapters have hex shanks. Choose a square-input extension for a square-drive wrench connection.

Are the socket adapters listed at 3 inches?

The socket adapters are nominally 3 inches long. Confirm the exact tool dimensions with Lexivon if your clearance is tight.

Does the magnetic holder guarantee a bit cannot drop?

Check that your bit seats securely in the magnetic holder. Magnetic retention does not guarantee drop-proof behavior, and no retention-force specification is provided.

Does magnetism guarantee no wobble or slipping?

No measured runout or slip performance is supplied. The magnetic feature does not establish a zero-wobble guarantee for every bit and tool combination.

Are sockets magnetically retained on the square adapters?

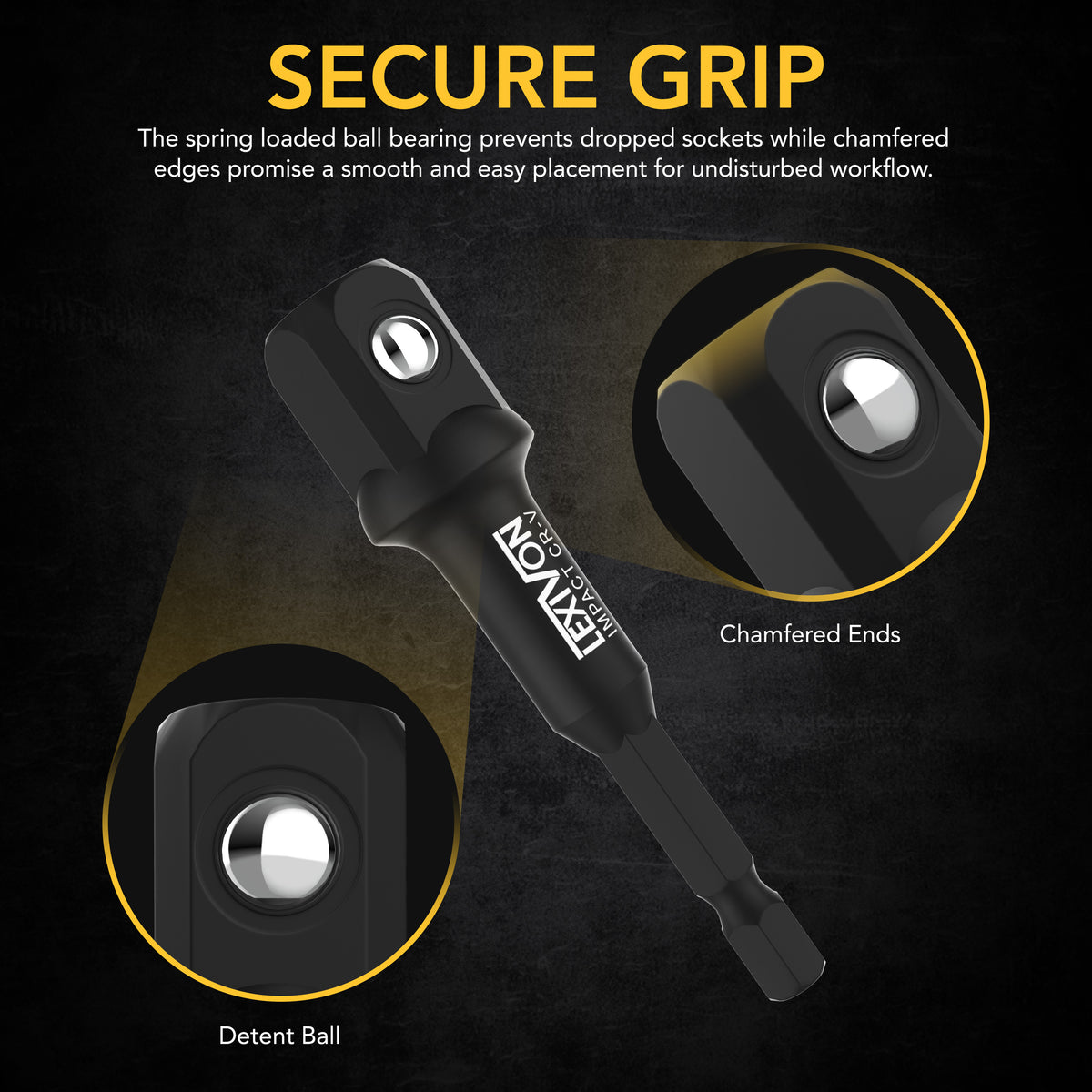

Spring-loaded detent balls retain sockets on the adapters. The separate magnetic holder retains bits; the two types of connection use different retention features.

Will this kit increase an ordinary drill's power?

LX-104 provides different tool connections. No added impact action or amplified torque is established by adding either the socket adapter or magnetic holder.

What torque limit applies to the LX-104 socket adapters?

Keep the three socket adapters within 540 in-lb (45 ft-lb). This limit concerns the hex-to-square adapters; it does not establish a torque rating for the separate magnetic bit holder.

How does LX-104 add to the LX-101 kit?

LX-101 lists three nominal 3-inch socket adapters. LX-104 lists those three drive sizes plus a magnetic bit holder, giving four working pieces and an organizer rack.

What construction is listed for LX-104?

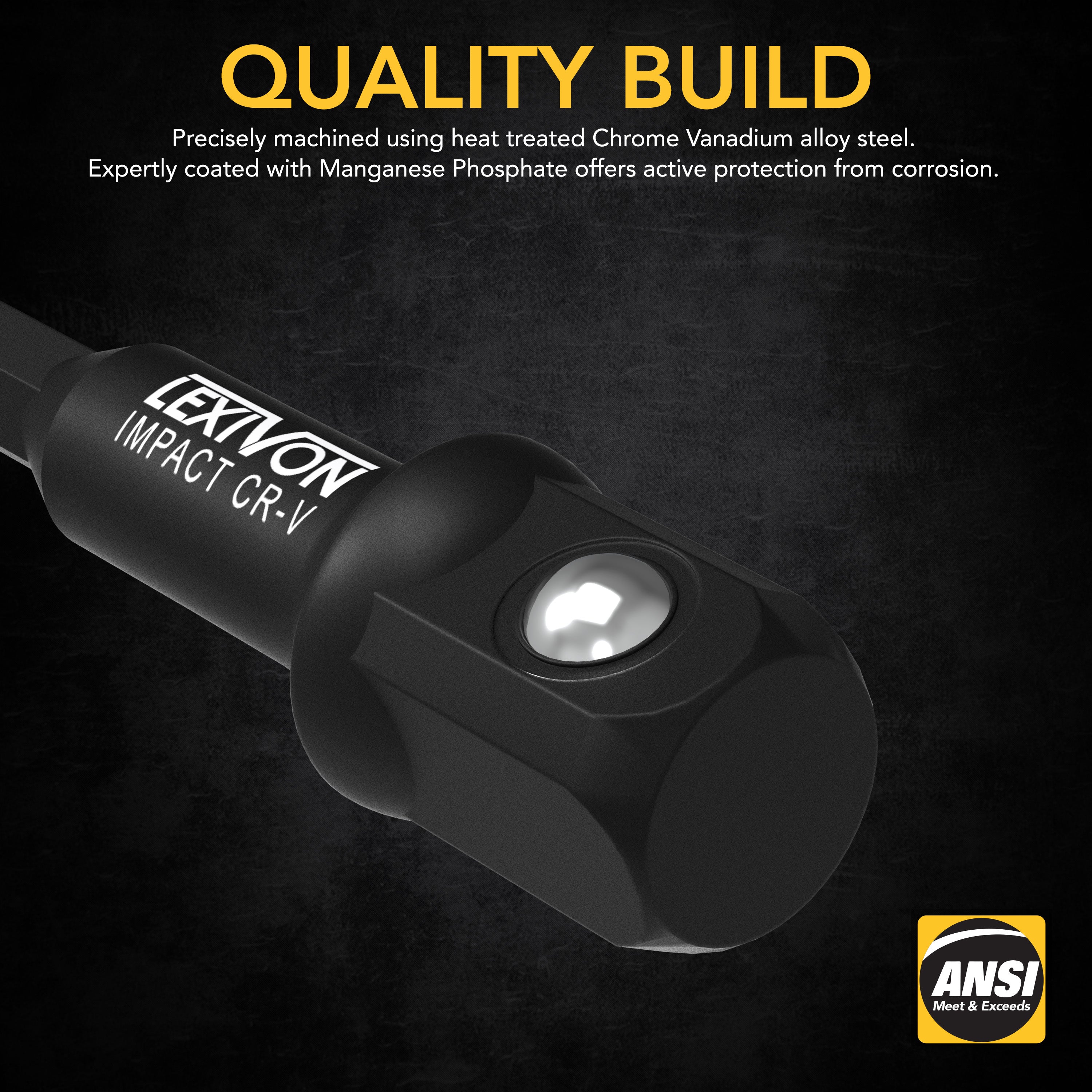

LX-104 uses heat-treated chrome vanadium steel with phosphate treatment for corrosion resistance. Ask Lexivon to confirm the coating on the particular piece if that affects your choice.

Are screwdriver bits included with the magnetic holder?

Bits are not listed in the four-piece contents. Supply a compatible bit, and confirm that it seats correctly in the magnetic holder.

Does LX-104 contain the 6-inch or 12-inch adapters?

The set combines nominal 3-inch socket adapters with a magnetic bit holder. It does not include a mixed-length adapter assortment.

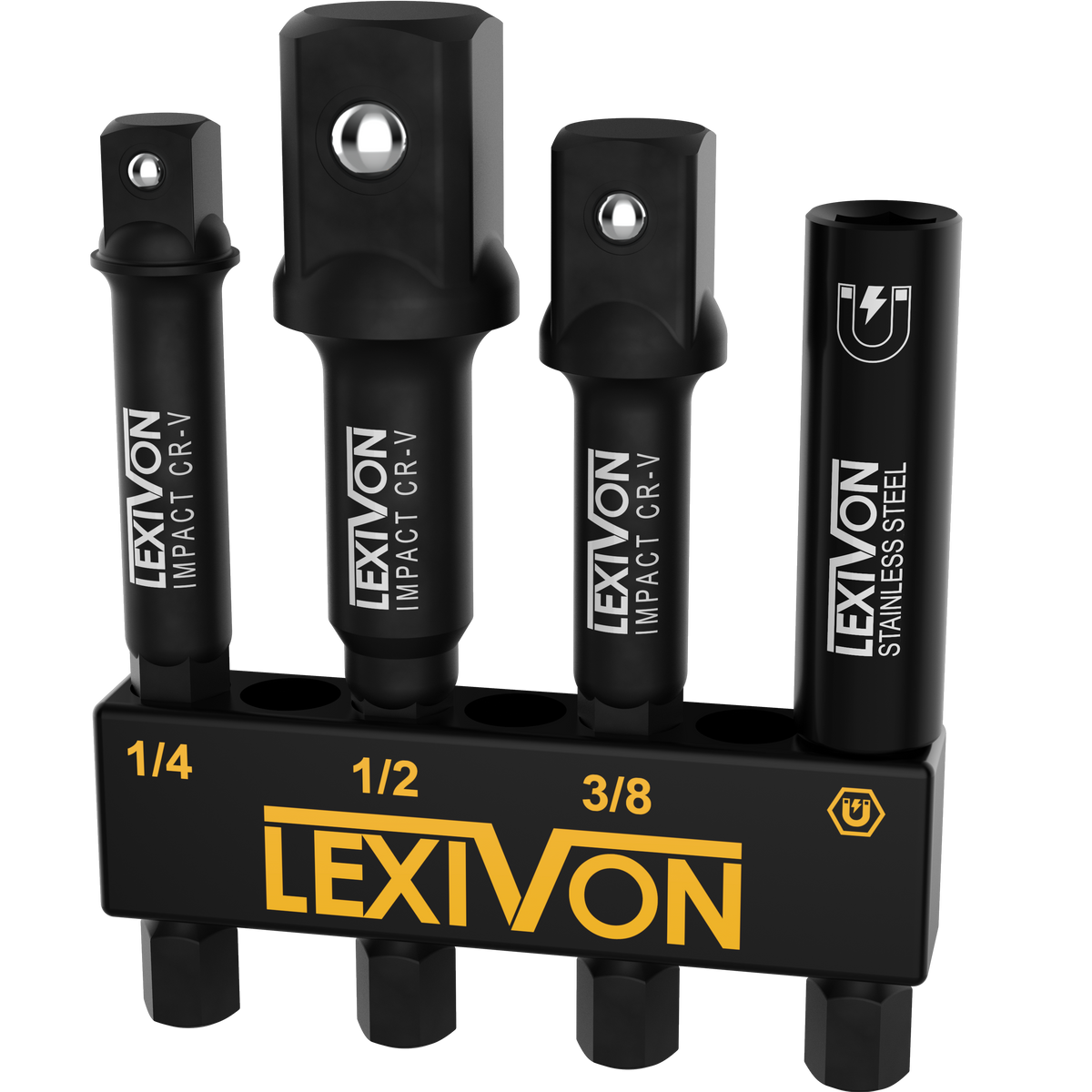

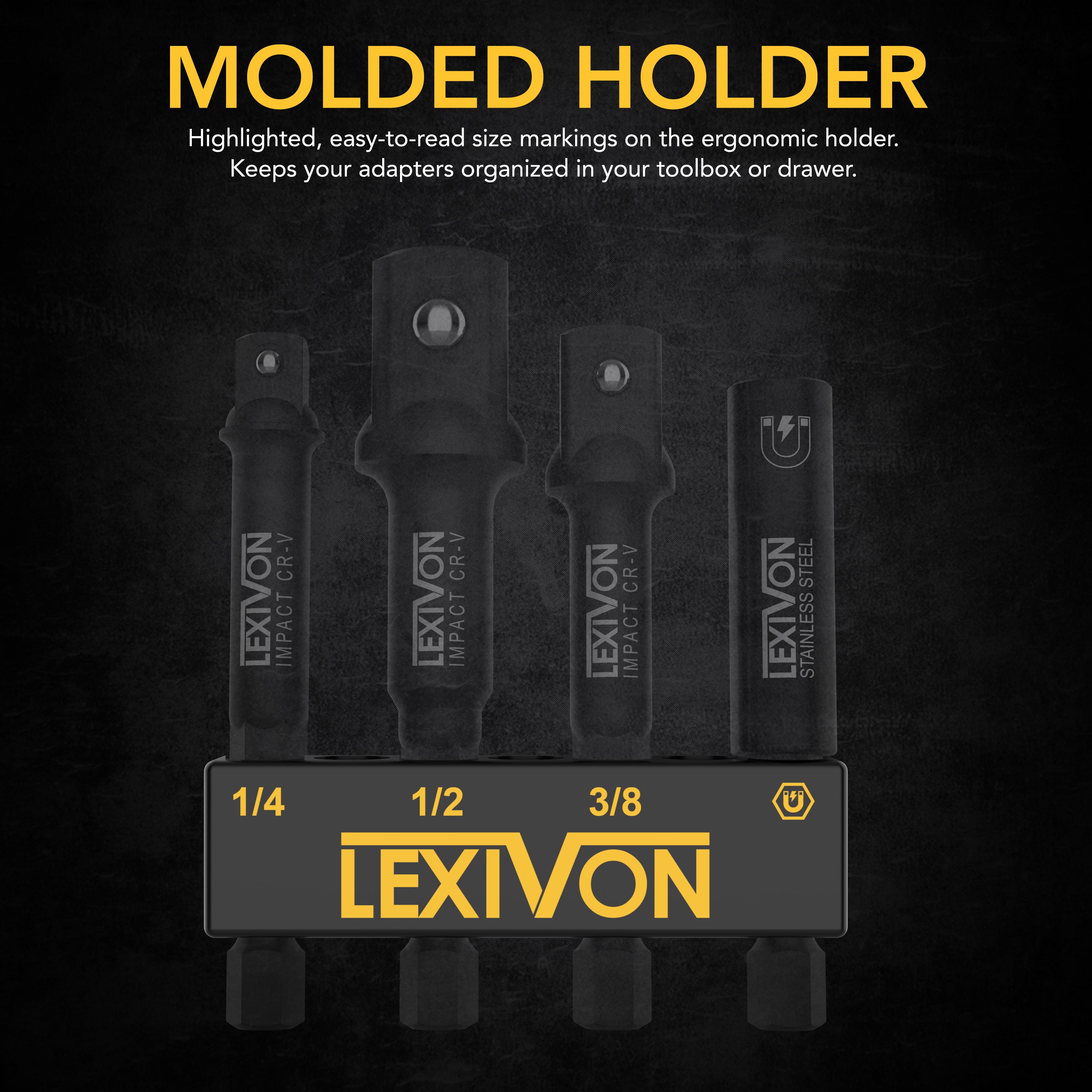

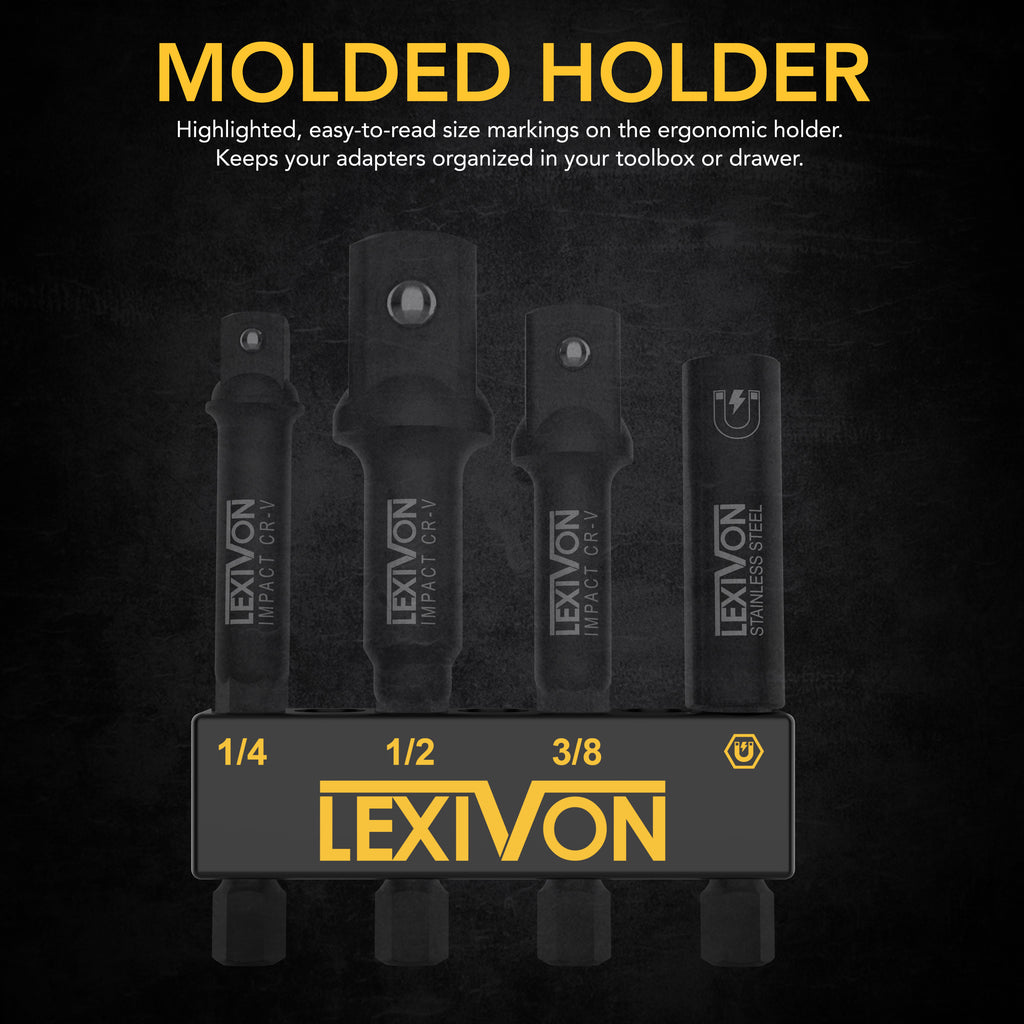

What comes with the rack?

The inventory is three square-output socket adapters and one magnetic bit holder. A drill, sockets and screwdriver bits are not listed as supplied.

Does lifetime coverage require registration?

Yes. LX-104 has lifetime coverage when registered online within 90 days. Without registration, the standard defects coverage is 12 months.

What if a screwdriver bit sits loosely in the magnetic holder?

Stop and check bit compatibility and seating. If the bit cannot be retained securely, seek Lexivon guidance; magnetism alone does not confirm a safe fit.

Can I keep using a snapped socket adapter from the four-piece kit?

No. Retire the damaged adapter from use and contact support. The separate magnetic holder is a different accessory and does not repair a broken square-output adapter.

What if my four-piece kit has two 1/4-inch adapters and no 3/8-inch one?

LX-104 includes one square-output adapter in each of 1/4, 3/8 and 1/2 inch, plus the magnetic holder. If a duplicate leaves a drive size missing, photograph the contents and contact Lexivon.

What if I see wobble with the magnetic holder?

Stop the tool and check the bit and holder seating. Seek Lexivon guidance if wobble persists; magnetic retention does not guarantee straight rotation.

Can commercial or industrial use receive lifetime coverage?

Commercial use has 12 months coverage and cannot be extended. Industrial use is excluded; lifetime registration does not override those usage terms.

Does the warranty cover normal wear or an improvised modification?

No. Coverage is for material and workmanship defects. Normal wear, misuse, modification and damage from non-original parts are excluded; Lexivon determines the resolution under its policy.
